35 / 36 page

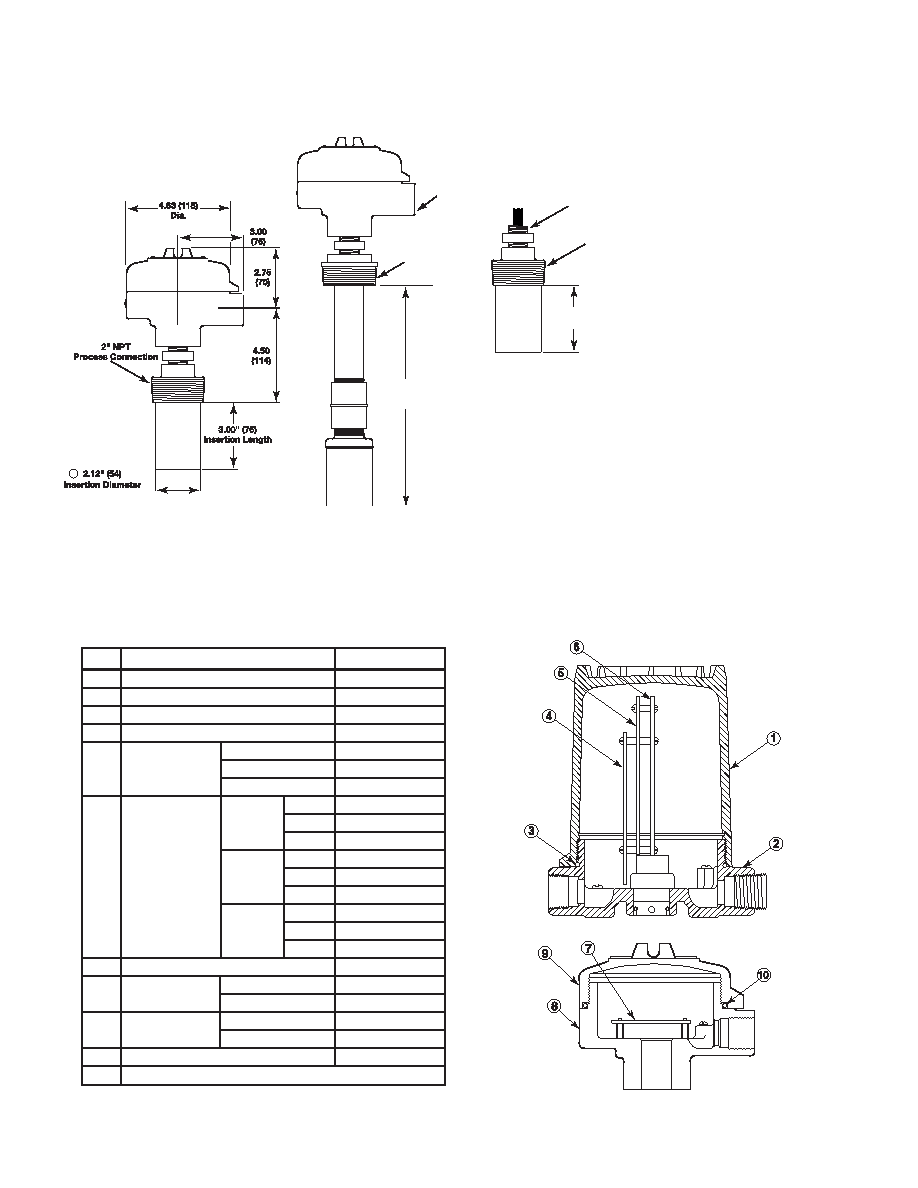

Figure 22

Transducers

REPLACEMENT PARTS

SPECIFICATIONS cont.

2" NPT

Process

Connection

3/4" NPT

Insertion Length

10.00 (254)

2" NPT

Process

Connection

3.00 (76) or 10.00 (254)

Insertion Length

3/4" NPT

384 Transducer with

1" NPT without Housing

384 Transducer with

2" NPT without Housing

384 Transducer with 2" NPT with Housing

This dimension is common to all

transducers on page.

DIMENSIONAL SPECIFICATIONS

Inches (mm)

Item

Description

Part Number

Cover

004-9174-007

Base

004-9188-004

O-Ring

012-2201-253

Daughter board

030-3559-001

4–20

030-2225-001

Logic board

RS-485

030-2225-002

4–20/RS-485

030-2225-003

0 relays

030-2212-003

120 VAC

2 relays

030-2212-002

4 relays

030-2212-001

Power supply

0 relays

030-2212-006

board

240 VAC

2 relays

030-2212-005

4 relays

030-2212-004

0 relays

030-2212-009

24 VDC

2 relays

030-2212-008

4 relays

030-2212-007

Termination board

030-3515-001

Transducer

Aluminum

004-9104-001

housing base

316 SS

004-9140-001

Transducer

Aluminum

004-9105-001

housing cover

316 SS

004-9142-001

Transducer housing O-ring

012-2101-345

Transducer (Refer to Model Identification on page 2.

Figure 23

Replacement Parts
