2SA733-R bảng dữ liệu(PDF) 1 Page - Micro Commercial Components |
|
|
|||||||||||||||||||||||||||||
2SA733-R bảng dữ liệu(HTML) 1 Page - Micro Commercial Components |
|
|

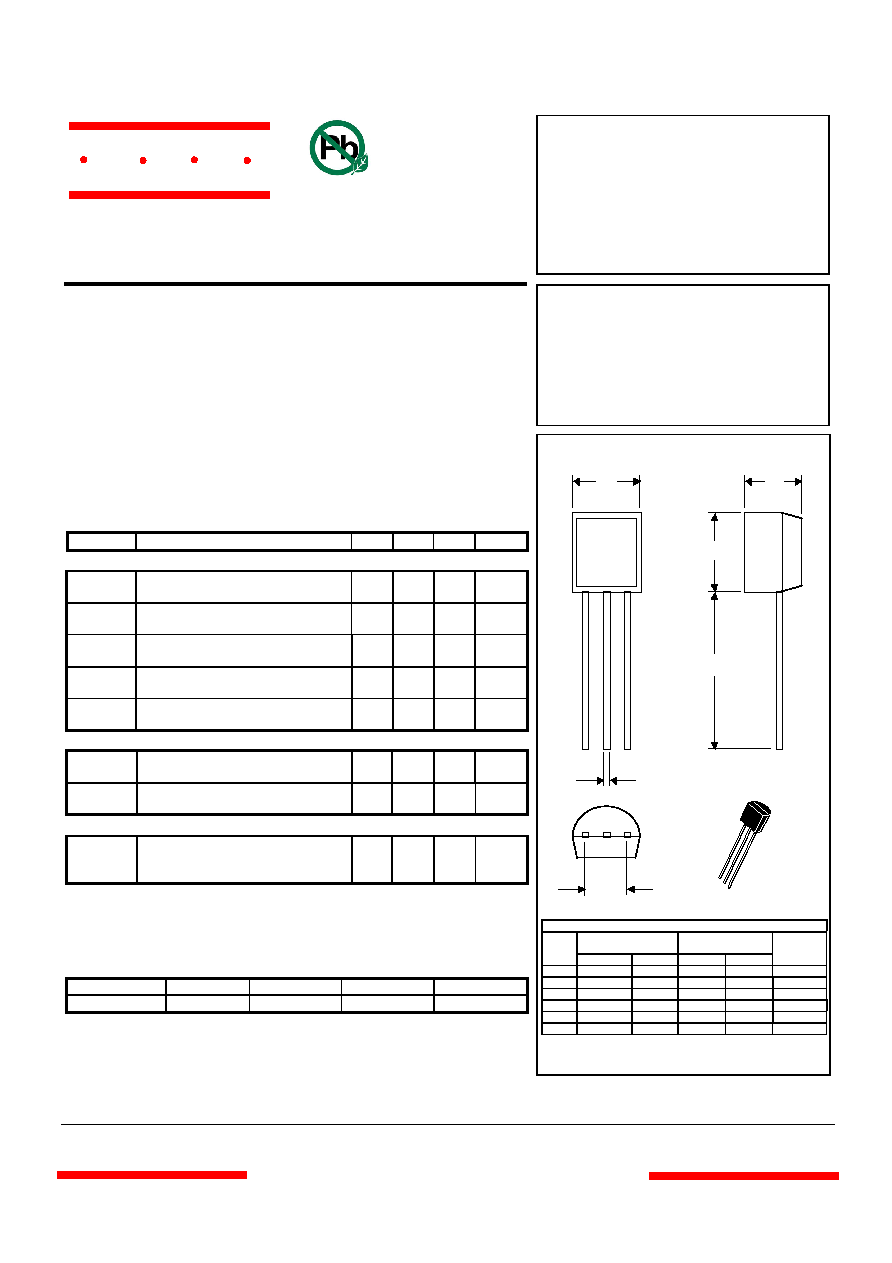

1 / 2 page  PNP Silicon Plastic-Encapsulate Transistor Features • Capable of 0.25Watts of Power Dissipation. • Collector-current 0.1A • Collector-base Voltage 60V • Operating and storage junction temperature range: -55 OC to +150OC Electrical Characteristics @ 25OC Unless Otherwise Specified Symbol Parameter Min Typ Max Units OFF CHARACTERISTICS V (BR)CEO Collector-Emitter Breakdown Voltage (I C=1.0mAdc, IB=0) 50 --- --- Vdc V (BR)CBO Collector-Base Breakdown Voltage (I C=5.0uAdc, IE=0) 60 --- --- Vdc V (BR)EBO Emitter-Base Breakdown Voltage (I E=50uAdc, IC=0) 5.0 --- --- Vdc ICBO Collector Cutoff Current (V CB=60Vdc, IE=0) --- --- 0.1 uAdc IEBO Emitter Cutoff Current (V EB=5.0Vdc, IC=0) --- --- 0.1 uAdc ON CHARACTERISTICS h FE DC Current Gain (IC=1.0mAdc, VCE=6.0Vdc) 90 200 600 --- V CE(sat) Collector-Emitter Saturation Voltage (I C=100mAdc, IB=10mAdc) --- 0.18 0.3 Vdc SMALL-SIGNAL CHARACTERISTICS fT Transistor Frequency (I C=10mAdc, VCE=6.0Vdc f=30MHz) 100 180 --- MHz CLASSIFICATION OF HFE (1) Rank R Q P K Range 90-180 135-270 200-400 300-600 TO-92 A E B C D G Revision: A 2011/01/01 omponents 20736 Marilla Street Chatsworth !"# $% !"# M C C DIMENSIONS INCHES MM DIM MIN MAX MIN MAX NOTE A .170 .190 4.33 4.83 B .170 .190 4.30 4.83 C .550 .590 13.97 14.97 D .010 .020 0.36 0.56 E .130 .160 3.30 3.96 G .010 .104 2.44 2.64 TM Micro Commercial Components www.mccsemi.com 1 of 2 2SA733-R 2SA733-P 2SA733-K 2SA733-Q • Lead Free Finish/Rohs Compliant ("P"Suffix designates Compliant. See ordering information) • Epoxy meets UL 94 V-0 flammability rating • Moisure Sensitivity Level 1 E B C |
