UNISONIC TECHNOLOGIES CO., LTD

TL431L

LINEAR INTEGRATED CIRCUIT

www.unisonic.com.tw

1 of 5

Copyright © 2008 Unisonic Technologies Co., Ltd

QW-R103-014.F

PROGRAMMABLE PRECISION

REFERENCE

DESCRIPTION

The UTC TL431L is a three-terminal adjustable regulator with a

guaranteed thermal stability over applicable temperature ranges.

(approximately 2.5V) and 20V with two external resistors. It provides

very wide applications, including shunt regulator, series regulator,

switching regulator, voltage reference and others.

FEATURES

*Programmable Output Voltage to 20V.

*Low Dynamic Output Impedance 0.2

Ω.

*Sink Current Capability of 1.0 ~ 100mA.

*Equivalent full-Range Temperature Coefficient of 50ppm/

°C Typical

for Operation over full Rated Operating Temperature Range.

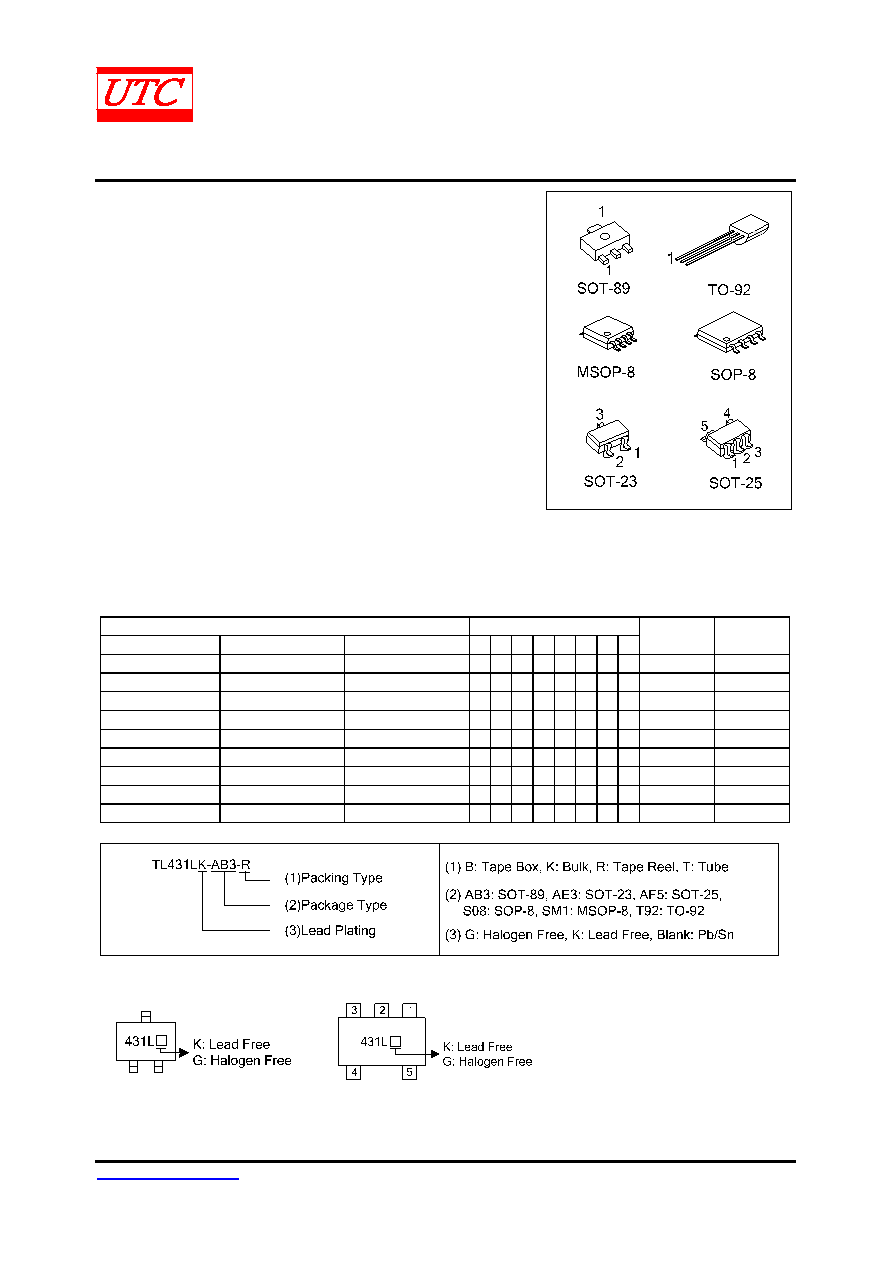

ORDERING INFORMATION

Ordering Number

Pin Assignment

Normal

Lead Free

Halogen Free

123456 7 8

Package

Packing

TL431L-AB3-R

TL431LK-AB3-R

TL431LG-AB3-R

R A K -

-

-

-

-

SOT-89

Tape Reel

TL431L-AE3-R

TL431LK-AE3-R

TL431LG-AE3-R

K R A -

-

-

-

-

SOT-23

Tape Reel

TL431L-AF5-R

TL431LK-AF5-R

TL431LG-AF5-R

X X K R A -

-

-

SOT-25

Tape Reel

TL431L-S08-R

TL431LK-S08-R

TL431LG-S08-R

KAAXXA A R

SOP-8

Tape Reel

TL431L-SM1-R

TL431LK-SM1-R

TL431LG-SM1-R

KXXXXA X R

MSOP-8

Tape Reel

TL431L-SM1-T

TL431LK-SM1-T

TL431LG-SM1-T

KXXXXA X R

MSOP-8

Tube

TL431L-T92-B

TL431LK-T92-B

TL431LG-T92-B

R A K -

-

-

-

-

TO-92

Tape Box

TL431L-T92-K

TL431LK-T92-K

TL431LG-T92-K

R A K -

-

-

-

-

TO-92

Bulk

TL431L-T92-R

TL431LK-T92-R

TL431LG-T92-R

R A K -

-

-

-

-

TO-92

Tape Reel

Note: Pin Code: K: Cathode

A: Anode

R: Reference

X: No Connection

MARKING (SOT-23/SOT-25)

SOT-23

SOT-25
