Pins and Connections
USB2SER Data Sheet, Rev. 0
Freescale Semiconductor
5
1.3

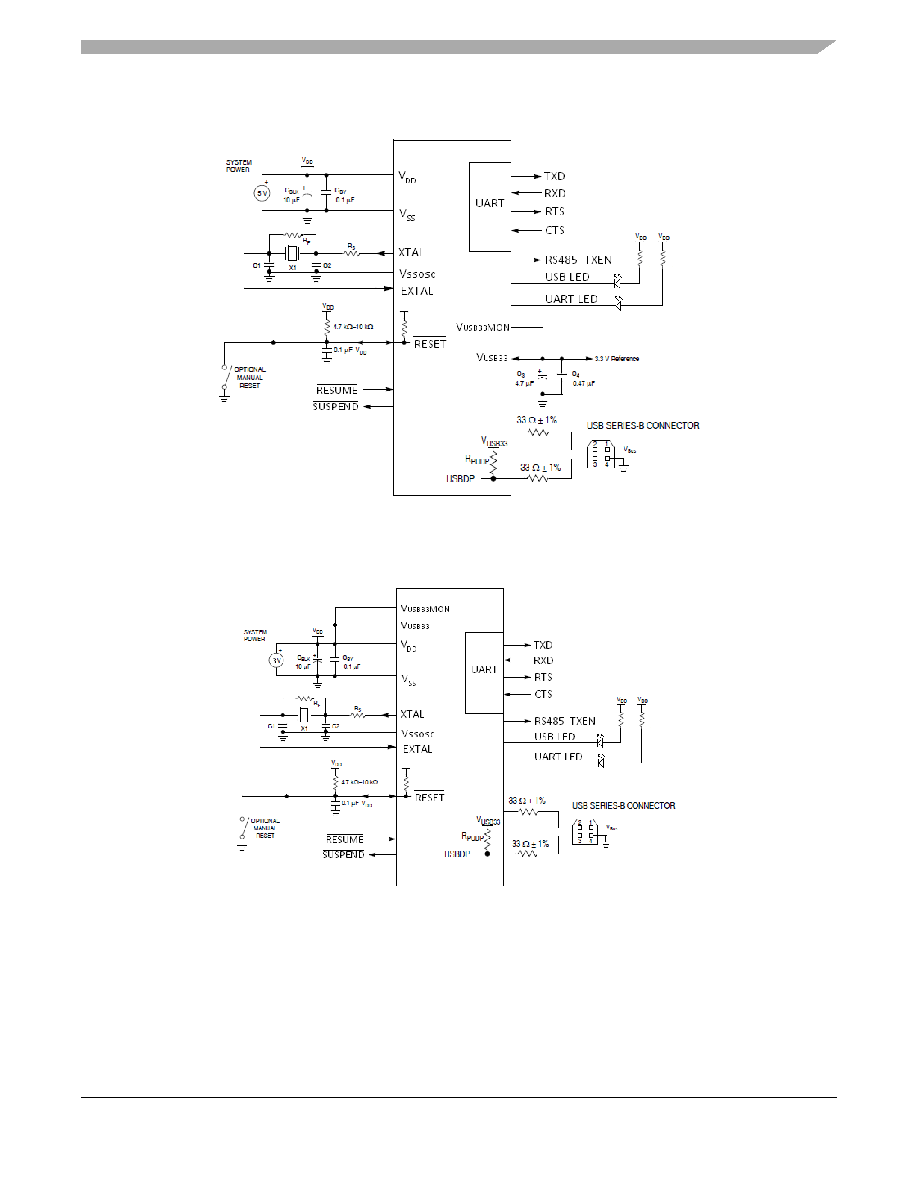

Recommended system connections
Figure 3. System connections working at 5 V
Figure 4. System connections working at 3 V
1 RC filter on RESET is recommended for EMC-sensitive applications.
2 RPUDP is shown for full-speed USB only. The diagram shows a configuration where the on-chip regulator and RPUDP are enabled. The voltage
regulator output is used for RPUDP. RPUDP can optionally be disabled if using an external pullup resistor on USBDP.
3 VBUS is a 5.0 V supply from upstream port that can be used for USB operation.
4 USBDP and USBDN are powered by the 3.3 V regulator.
5 When using internal VUSB33 as supply, there needs to be an external cap.
