SPD3595_1 datasheet(1/2 Pages) SSDI

tên linh kiện	SPD3595

Giải thích chi tiết về linh kiện	STANDARD RECOVERY RECTIFIER

PDF	2 Pages

Scroll/Zoom	100%

nhà sản xuất	SSDI [Solid States Devices, Inc]

Trang chủ	http://www.ssdi-power.com

Logo

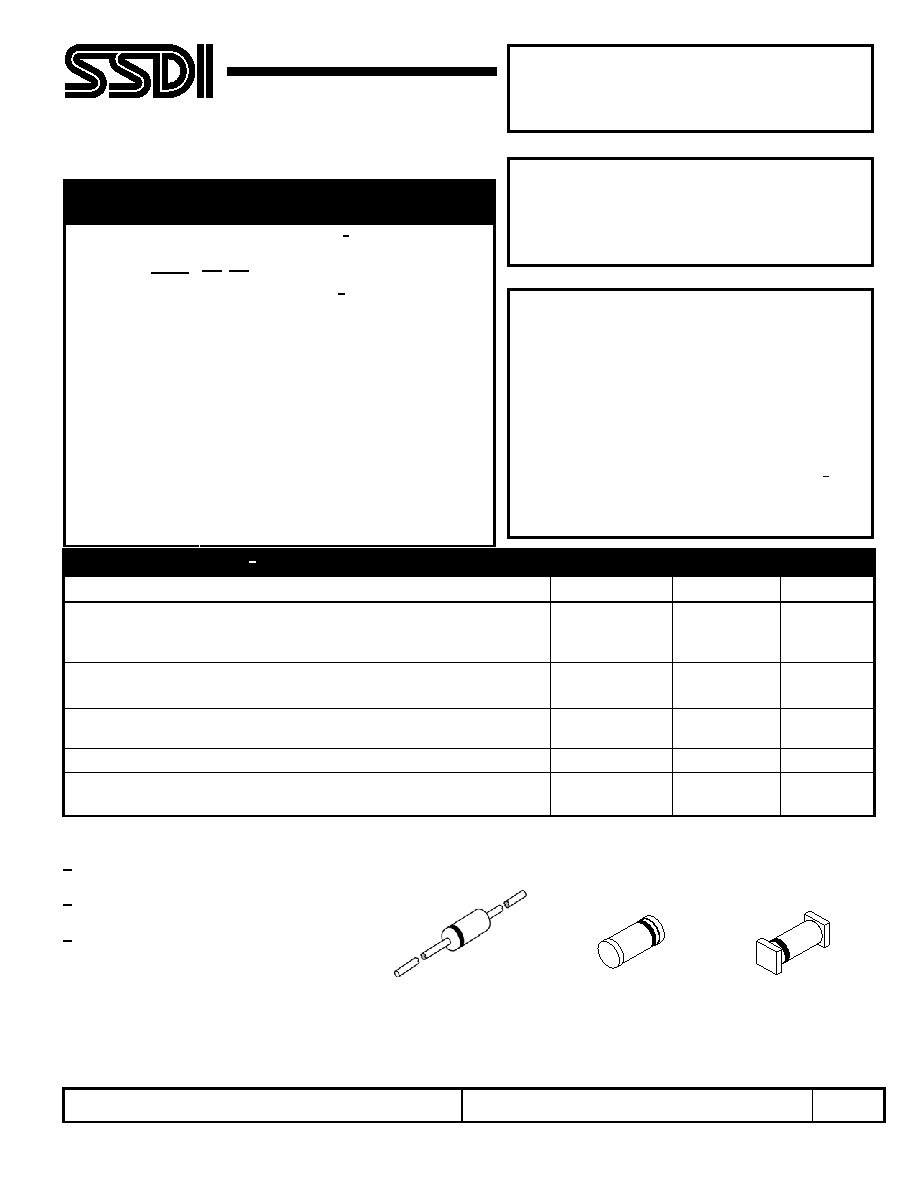

1 / 2 page

NOTE: All specifications are subject to change without notification.

SCD's for these devices should be reviewed by SSDI prior to release.

DATA SHEET #: RC0127C

DOC

Solid State Devices, Inc.

14701 Firestone Blvd * La Mirada, Ca 90638

Phone: (562) 404-4474 * Fax: (562) 404-1773

ssdi@ssdi-power.com * www.ssdi-power.com

Designer’s Data Sheet

Part Number/Ordering Information 1/

SPD____ __ __

└ Screening 2/

__ = Not Screened

TX = TX Level

TXV = TXV

S = S Level (for SM, use –S)

│

└ Package Type

__ = Axial Leaded

SM = Surface Mount Round Tab

(MELF)

SMS = Surface Mount Square Tab

│

└

Device Type ( VRWM )

3595 = 125 V

SPD3595

150 mA

125 VOLT

3

μsec STANDARD RECOVERY

RECTIFIER

FEATURES:

•

Standard Reverse Recovery Time: 3

μsec Max

•

Hermetically Sealed

•

Planar Passivated Chip

•

For High Efficiency Applications

•

Available in Axial, Subminiature Round Tab &

Subminiature Square Tab Versions

•

Faster Devices Available – Contact Factory

•

TX, TXV, and S-Level Screening Available

2/

• Replacement for 1N3595

MAXIMUM RATINGS 3/

RATING

SYMBOL

VALUE

UNIT

Peak Repetitive Reverse Voltage

DC Blocking Voltage

VRWM

VR

125

Volts

Average Rectified Forward Current

(Resistive Load, 60 Hz, Sine Wave, TC = 25°C)

IO

150

mAmps

Peak Surge Current

(t = 1sec, Ta = 25°C)

IFSM

500

mAmps

Operating & Storage Temperature

TOP and TSTG

-65 to +175

°C

Thermal Resistance

Junction to End Tab (SM & SMS)

Axial- Junction to Lead @ .375”

RθJE

RθJL

100

250

°C/W

NOTES:

1/ For Ordering Information, Price, and

Availability- Contact Factory.

2/ Screening Based on MIL-PRF-19500.

Screening Flows Available on Request.

3/ Unless Otherwise Specified, All Electrical

Characteristics @25ºC.

Axial Leaded

SM

SMS
