Shielded Power Chip Inductor

PCS8D43

15

RDC

(mΩ)

Rated

Current

Allied

Part

Number

Inductance

(

µh)

Tolerance

(%)

Test

Freq.

PCS8D43-R68N-RC

PCS8D43-1R2N-RC

PCS8D43-2R0N-RC

PCS8D43-3R9N-RC

PCS8D43-4R7N-RC

PCS8D43-100N-RC

PCS8D43-220N-RC

PCS8D43-330N-RC

PCS8D43-470N-RC

PCS8D43-680N-RC

.68

1.2

2.0

3.9

4.7

10

22

33

47

68

30

100

9.5

12.2

14

19

22

36

75

125

150

240

9.00

8.00

7.00

5.90

5.60

4.00

2.60

2.20

1.80

1.50

ALLIED COMPONENTS INTERNATIONAL

714-665-1140

www.alliedcomponents.com

RoHS

PCS8D43-6R8N-RC

6.8

30

100

25

4.40

PCS8D43-150N-RC

15

30

100

53

2.90

(A) Max

Max.

All specifications subject to change wtihout notice.

KHz, 0.1V

Features

• SMD Power Inductor

• Low DC resistance

• Ideal for DC-DC converter applications

• Magnetically shielded

Electrical

Inductance Range: .68µh to 100µh,

Tolerance:

30% over entire range

Operating Temp: -40ºC ~ +85ºC

Rated Current: Current at which inductance

drop by no more than 35% of intial value or the

Resistance to Soldering Heat

Pre-Heat 150ºC, 1 Min.

Solder Composition: Sn/Ag3.0/Cu0.5

Solder Temp: 260ºC +/- 5ºC for

10 sec. +/- 1 sec.

Test Equipment

(L):

HP4287 LCR Meter or equal

(RDC): CH502BC or equal

(Current): VR126G / 7220 Meter

Physical

Packaging: 800 pieces per 13 inch reel.

Marking: EIA Inductance Code

temperature has risen by 40ºC which ever occurs first

Also, available in tighter tolerances

REVISED 12/17/10

• High Current

Available in additional values

Storage Temp: -40ºC ~ +125ºC

4.5

PCS8D43-101N-RC

100

30

100

360

1.30

Tolerance: also available in: K=10% and M=20%

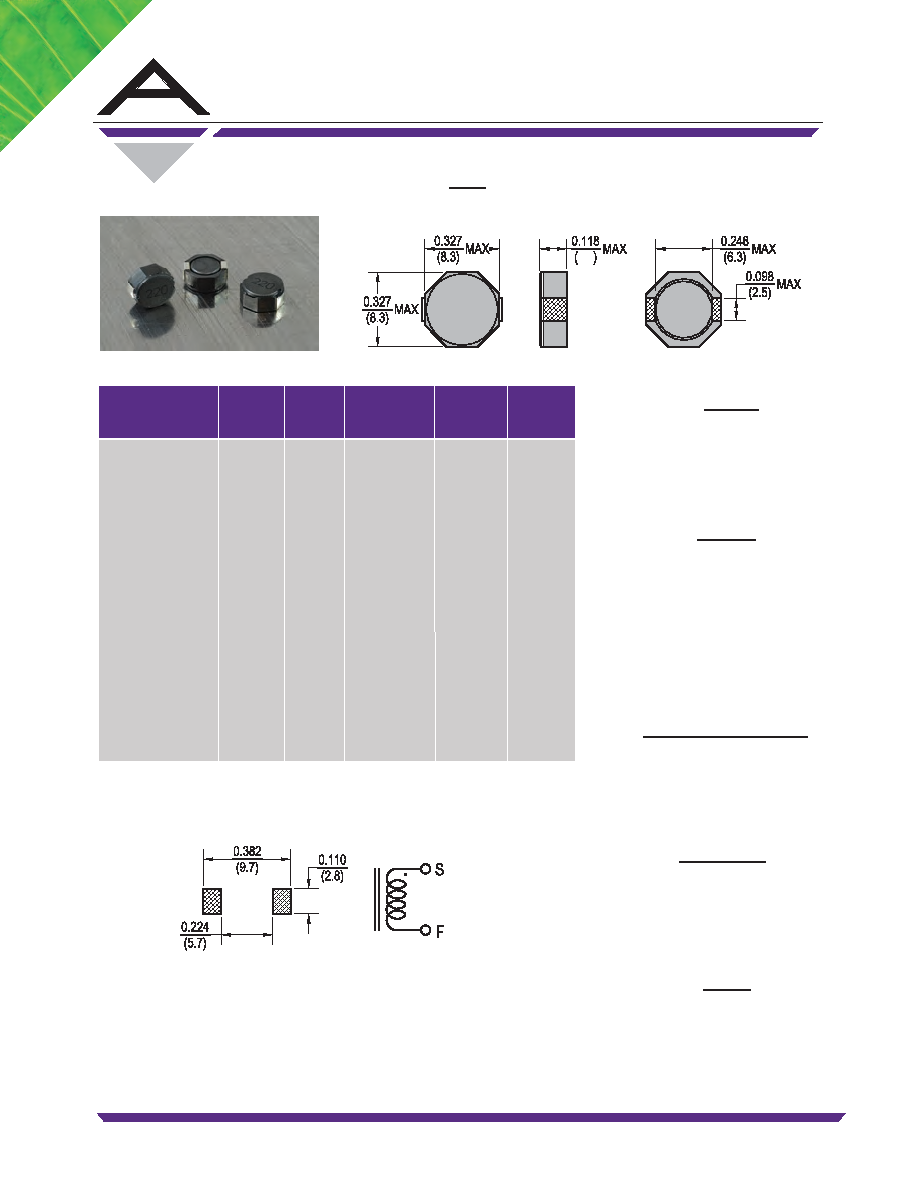

Dimensions:

Inches

(mm)
