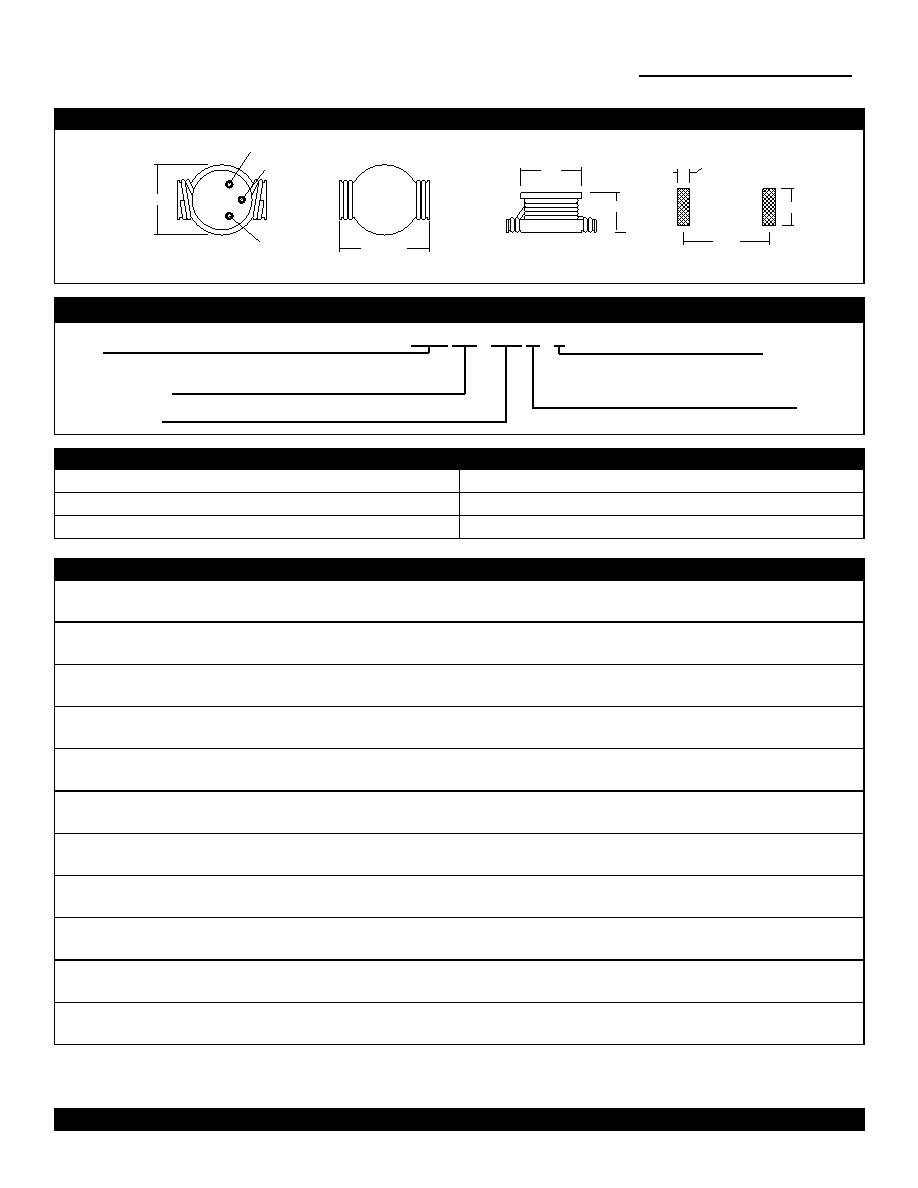

Dimensions

Part Numbering Guide

Series

Packaging Style

B=Bulk

T=Tape & Reel

HC = High Current

(250 pcs per reel)

Tolerance

Inductance Code

M=20%

PSSL - 1306 HC - R78 M - T

Power Inductor - High Current

(PSSL-1306HC Series)

Features

Inductance Range

0.78 µH to 15 µH

Available Tolerance

M=20%

Operating Temperature

-40°C to 85°C

Dimensions in mm

Electrical Specifications

Inductance

Code

Inductance

(µH ± 20%)

Test

Frequency

DCR Max

(m

)

Isat¹

(A)

Irms²

(A)

R78

0.78

100 kHz, 0.1 Vrms

2.6

30

15

1R5

1.5

100 kHz, 0.1 Vrms

4.0

25

15

2R2

2.2

100 kHz, 0.1 Vrms

6.1

20

12

3R3

3.3

100 kHz, 0.1 Vrms

8.6

17

10

3R9

3.9

100 kHz, 0.1 Vrms

10

15

9.0

4R7

4.7

100 kHz, 0.1 Vrms

14

13

8.4

6R0

6.0

100 kHz, 0.1 Vrms

17

12

7.5

7R8

7.8

100 kHz, 0.1 Vrms

18

11

7.5

100

10

100 kHz, 0.1 Vrms

26

10

6.0

150

15

100 kHz, 0.1 Vrms

32

8

4.4

Notes:

1)

Inductance drop = 10% typ. At Isat

2)

T = 40°C typ. At Irms

SRF Typ

(MHz)

156

100

75

60

55

40

35

28

20

Specifications subject to change without notice.

Rev. 02/01

(Not to scale)

TEL 949-366-8700

FAX 949-366-8707

WEB www.caliberelectronics.com

8.0 max

22.35 max

12.7

Suggested

Pattern

3.18

17.53

8.64

1st Significant Digit

2nd Significant Digit

Multiplier

16.26 max

Bottom

CAL I B E R

ELE C T R O N I C S

I N C .

specifications subject to change * revision 3-2003
