YEV09T06 6A DC-DC POL Converter
4.5V to 13.8V Input 0.59V to 5.1V Output
Data Sheet
ZD-02094 Rev 1.1, 25-Mar-09
www.power-one.com
Page 11 of 12

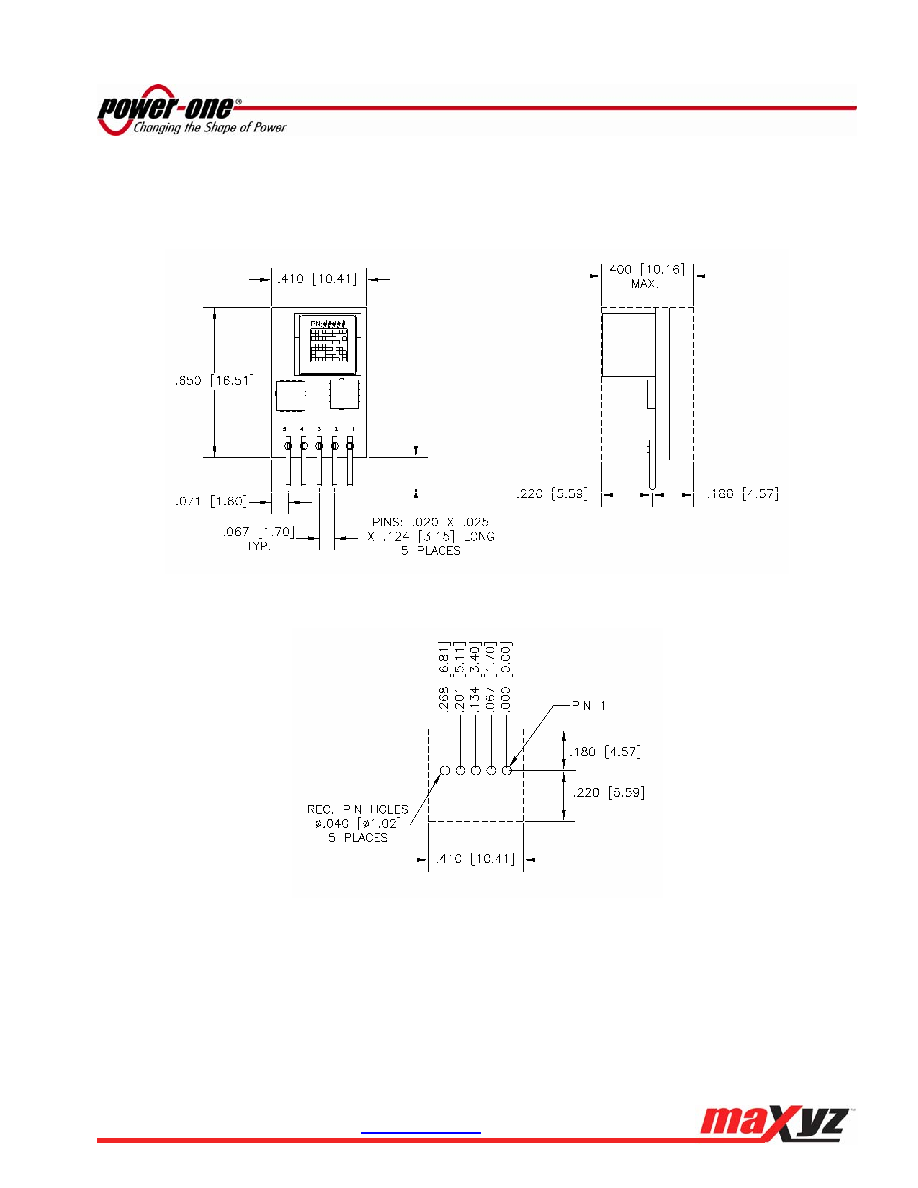

10. Mechanical Drawings
All Dimensions are in inches
Tolerances:
X.XX:
0.02”
X.XXX:
0.01”
Figure 17. Mechanical Drawing
Figure 18. Recommended Footprint – Top View
Notes:
1. NUCLEAR AND MEDICAL APPLICATIONS -
Power-One products are not designed, intended for use in, or authorized for use as critical
components in life support systems, equipment used in hazardous environments, or nuclear control systems without the express written
consent of the respective divisional president of Power-One, Inc.
2. TECHNICAL REVISIONS -
The appearance of products, including safety agency certifications pictured on labels, may change depending on
