PCF8564A_1
© NXP B.V. 2009. All rights reserved.
Product data sheet
Rev. 1 — 8 October 2009
34 of 44
NXP Semiconductors
PCF8564A
Real time clock and calendar
17. Handling information
All input and output pins are protected against ElectroStatic Discharge (ESD) under
normal handling. When handling Metal-Oxide Semiconductor (MOS) devices ensure that
all normal precautions are taken as described in
JESD625-A, IEC 61340-5 or equivalent
standards.

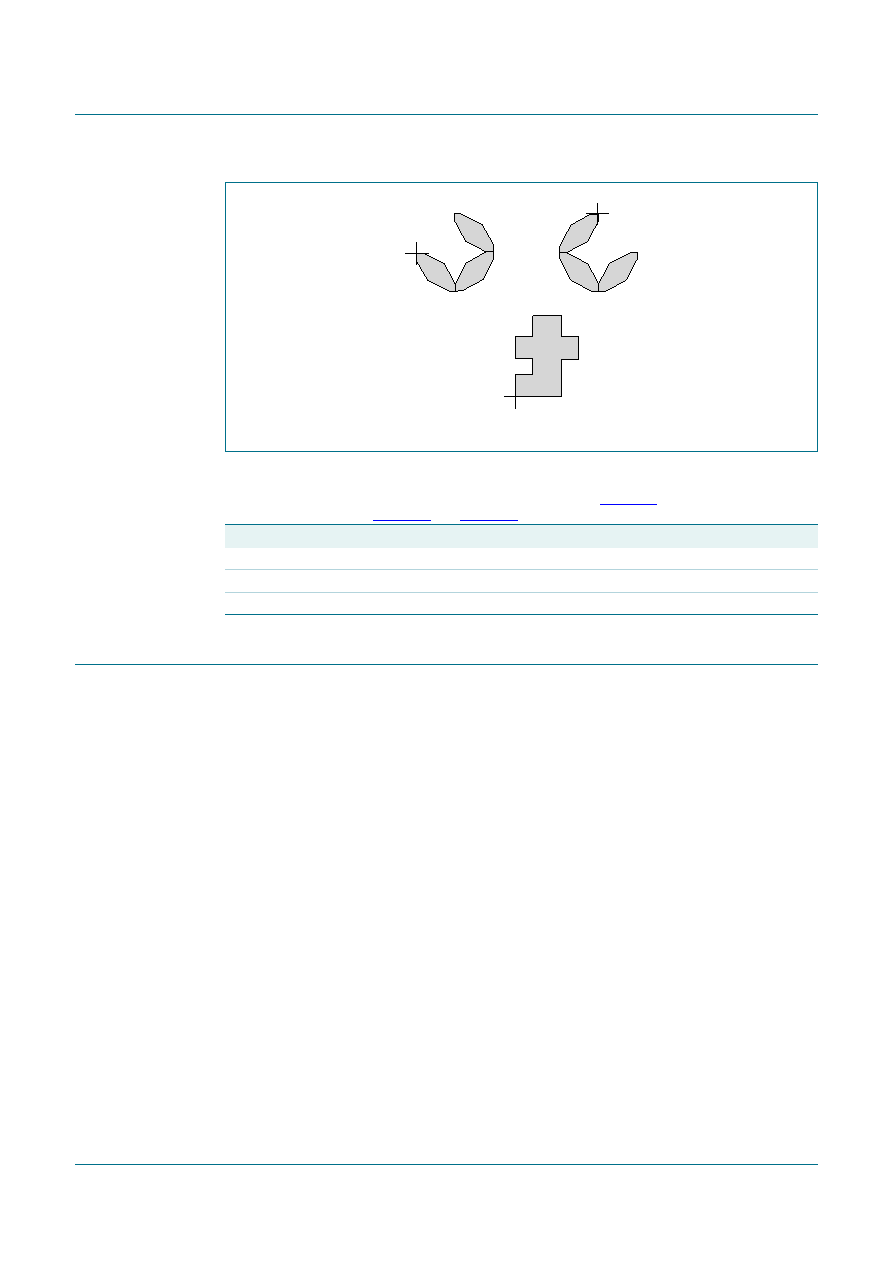

Fig 29. Alignment marks of all PCF8564A types
Table 33.
Alignment marks of all PCF8564A types
All x/y coordinates represent the position of the REF point (see Figure 29) with respect to the center
(x/y = 0) of the chip; see Figure 27 and Figure 28.
Alignment markers
Size (
µm)
X (
µm)
Y (
µm)
C1
100
× 100
465.2
−826.3
C2
100
× 100
−523.0
890.0
F90
× 117
−569.9
−885.5
REF
REF
C2
C1
F
013aaa036
REF
