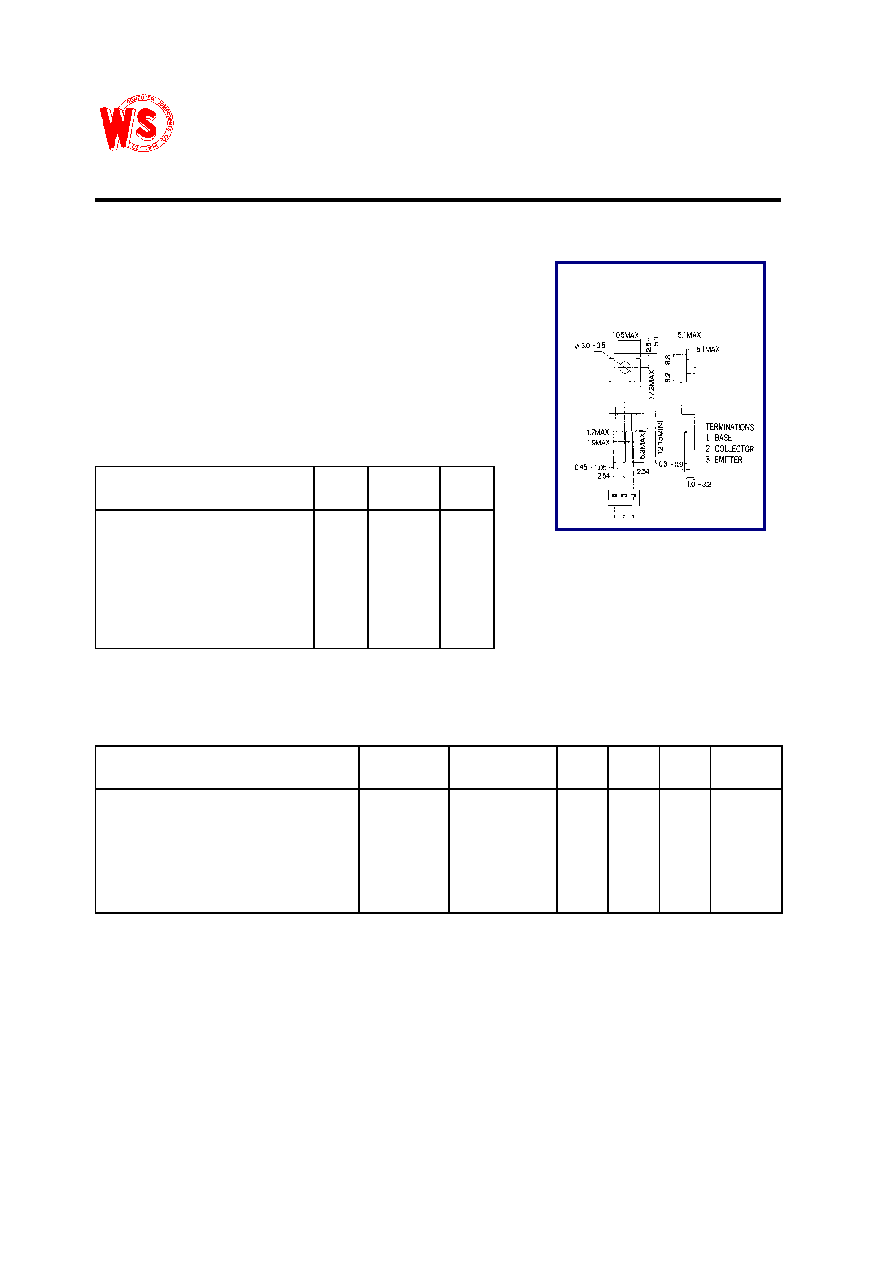

2SC5416LS

NPN

SILICON TRANSISTOR

HIGH VOLTAGE POWER

SWITCHING APPLICATIONS

SC-67

ABSOLUTE MAXIMUM RATINGS(TA=25℃

℃

℃)

Characteristic

Symbol

Rating

Unit

Collector-Emitter Voltage

Emitter-Base Voltage

Collector Current (DC)

Collector Current (Pulse)

Base Current (DC)

Base Current (Pulse)

Collector Dissipation (TC=25℃)

))

)

Junction Temperature

Storage Temperature

VCBO

VCEO

VEBO

IC

IB

PC

Tj

Tstg

1000

450

9

4

8

2

4

100

150

-65~150

V

A

W

℃

ELECTRICAL CHARACTERISTICS (TA=25℃

℃

℃)

Characteristic

Symbol

Test Condition

Min

Typ

Max

Unit

Collector Emitter Sustaining Voltage

Collector Cutoff Current

Emitter Cutoff Current

DC Current Gain

Collector Emitter Saturation Voltage

Fall Time

VCEO(SUS)

ICES

IEBO

hFE

VCE(sat)

tf

IC=100mA,

IB=0

VCE=850V, VEB =0

VCE=1000V,VEB =0

VEB=9V,

IC=0

IC=0.1A, VCE =5V

IC=2.5A, IB=0.5A

450

30

1

10

50

1.5

0.15

V

mA

µA

V

µS

Wing Shing Computer Components Co., (H.K.)Ltd.

Tel:(852)2341 9276

Fax:(852)2797 8153

Homepage: http://www.wingshing.com

E-mail:

wsccltd@hkstar.com
