PixArt Imaging Inc.

PAS005B

CMOS Image Sensor IC

All rights strictly reserved any portion in this paper shall not be reproduced, copied or transformed to any other forms without permission.

PixArt Imaging Inc.

Hsync.

x x x x

x x

x x

644 pixels 0ut

x x x x

line time = 480+4(x)+4(D)+644+4(x) = 1136 pixclks

x x x

480 pixclks

Pixclk_a

644 pixels out

Note: "x" indicates don't care PXD[9:0] , "D" dark.

x

D D D D

D D D D

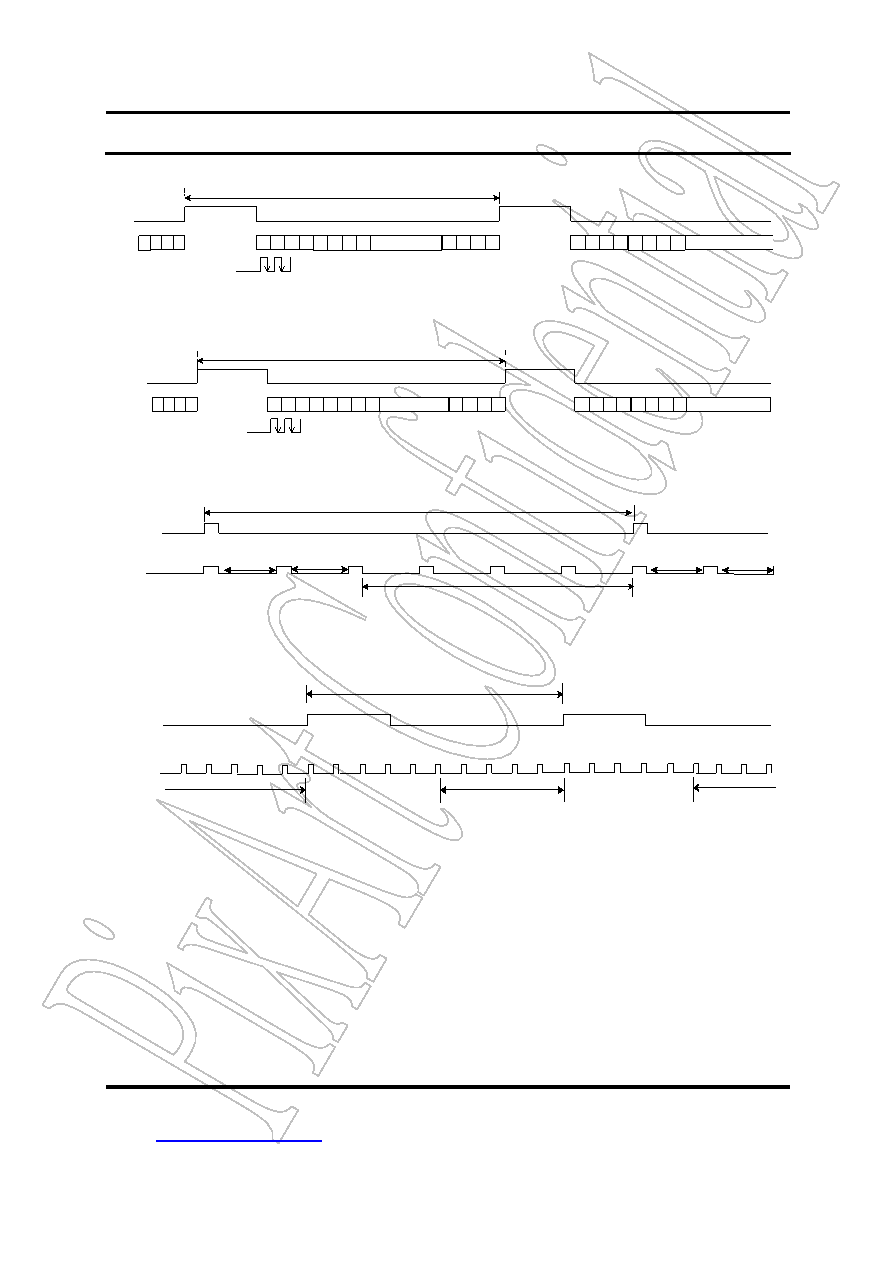

Fig 4.3.5.1-1 Inter-line timing (default)

Hsync.

x x x x

x x

x x

644 pixels 0ut

x x x x

line time = cov[10:0]+480+4(x)+4(D)+644+4(x) pixclks

x x x

cov[10:0]+480

Pixclk_a

644 pixels out

Note: "x" indicates don't care PXD[9:0] , "D" indicates dark.

x

D D D D

D D D D

Fig .4.3.5.1-2 Inter-line timing (programmable)

Valid frame data (482 lines)

Dark

Hsync.

480

Pixclks

480

Pixclks

Frame time(min) (=484 lines)

Vsync.

B,G,B,G...

G,R,G,R...

Dark

Dark

Dark

B,G,B,G...

Fig 4.3.5.1-3 Inter-frame timing (default)

Valid frame data

(480 lines)

Hsync.

Pixclks

Frame time = lpf[14:0]+3 lines

Vsync.

0

Dark

1

Dark

0

Dark

Valid frame data

(480 lines)

1

Dark

Fig 4.3.5.1-4 Inter-frame timing (programmable)

4.3.5.2. Sub-sampling QVGA(318X240) from (1288 X 968 ) windowing:

(with 4 column and 2 row for color interpolation)

cf[1:0] = 2, rf[1:0]=2, sub-sampling rate (1/4,1/4),cm =1, single_path = 1, row_ave= 1, CDS_ext2_in =1.

wcp[10:0]=0, wcw_in[10:0]=1287, column pixels 322=(1287+1)/4,

wrp[10:0]=0,wrd[10:0]=967, row pixel 242=(967+1)/4,
