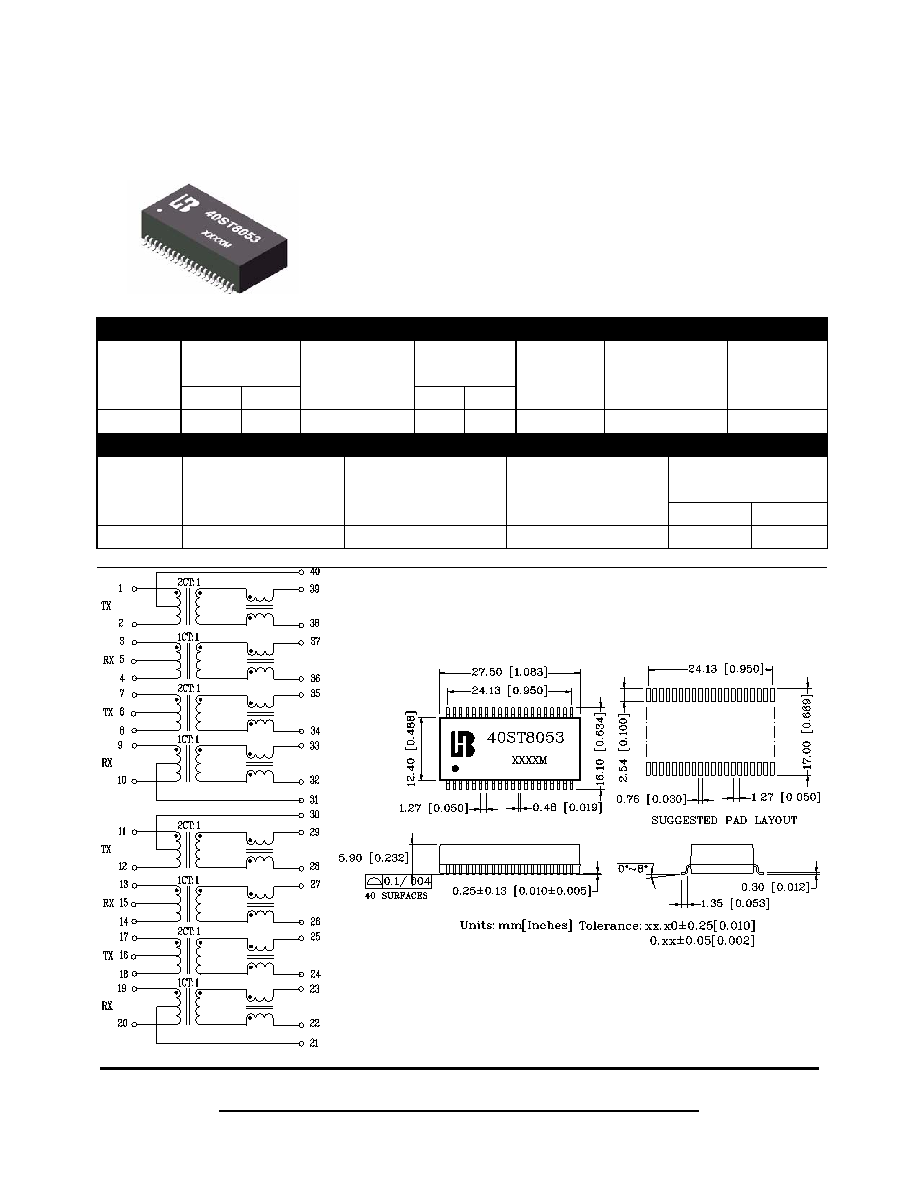

40 PIN SMD ETHERNET 10 BASE DUAL PORT TRANSFORMER

P/N: 40ST8053 DATA SHEET

Page : 1/1

462 Boston St - Topsfield, MA 01983 - Phone: 978-887-8050 - Fax: 978-887-5434

A0(02/06)

Feature

IEEE 802.3 Ethernet compatible.

40 PIN SMD package.

Customer designs available for specific application.

Operating temperature range : 0°C to +70°C.

Storage temperature range: -25°C to +125°C.

Electrical Specifications @ 25°C

Turns Ratio

(±5%)

L.L

(•H Max)

Part

Number

TX

RX

OCL

(•H Min)

TX

RX

Cw/w

(pF Max)

DCR (Ω Max)

RX/TX

HI-POT

(Vrms Max )

@ 1mA

40ST8053

2CT:1

1CT:1

140

0.8

0.4

15

0.4

1200

Continue

DCMR

(dB Min)

Part

Number

Peak Pulse Rating

(Volts)

Dissipation Rating

(mW)

Insulation Resistance

1-60MHz

60-200 MHz

40ST8053

50

75

10,000

-37

-25

Schematic

Mechanical
