ADL5358

Rev. 0 | Page 7 of

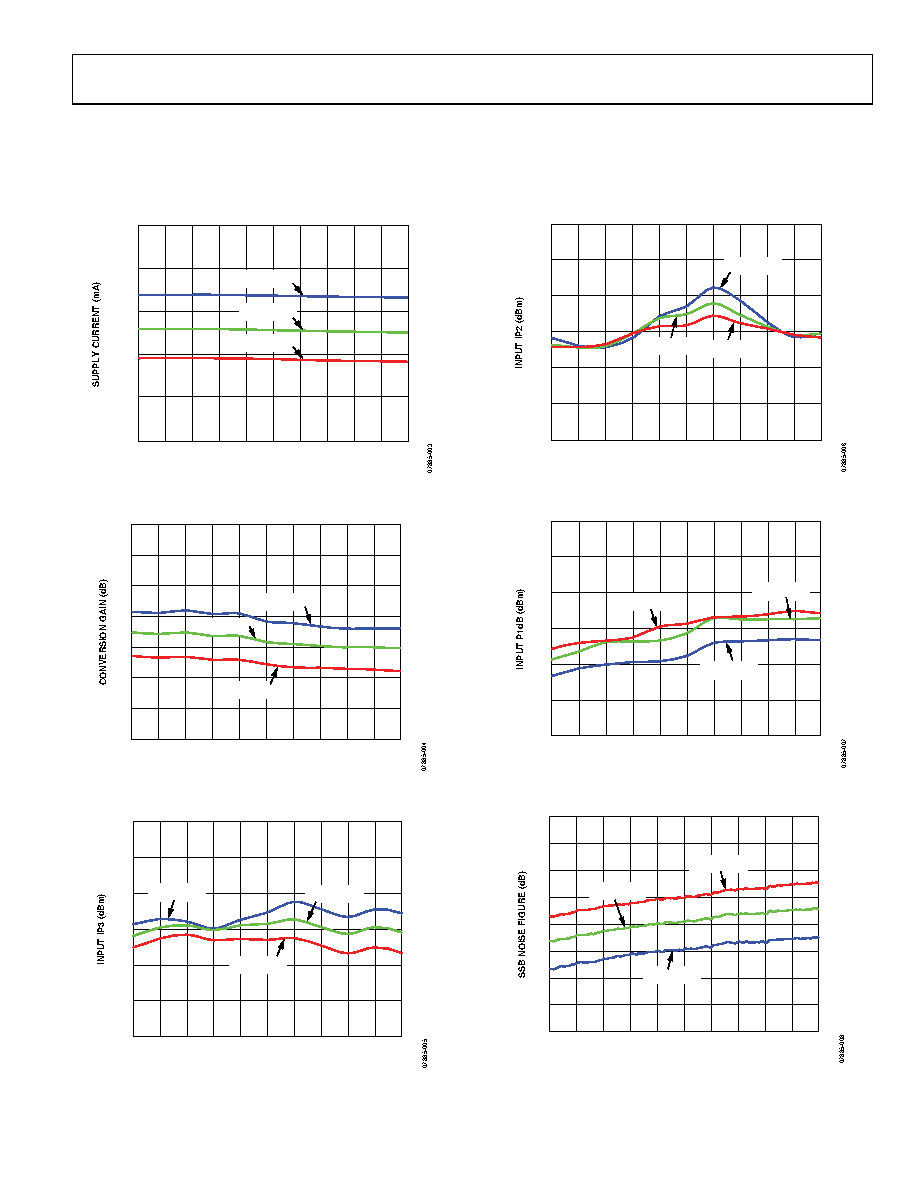

TYPICAL PERFORMANCE CHARACTERISTICS

5 V PERFORMANCE

VS = 5 V, IS = 350 mA, TA = 25°C, fRF = 900 MHz, fLO = 1103 MHz, LO power = 0 dBm, RF power = −10 dBm, R1 = R4 = 1.3 kΩ, R2 = R5 = 1 kΩ,

VGS0 = VGS1 = VGS2 = 0 V, ZO = 50 Ω, unless otherwise noted.

RF FREQUENCY (MHz)

700

750

800

850

900

950

1000 1050 1100 1150 1200

300

320

340

360

380

400

TA = +85°C

TA = +25°C

TA =–40°C

Figure 3. Supply Current vs. RF Frequency

RF FREQUENCY (MHz)

700

750

800

850

900

950

1000 1050 1100 1150 1200

TA = –40°C

TA = +85°C

TA = +25°C

Figure 4. Power Conversion Gain vs. RF Frequency

RF FREQUENCY (MHz)

700

750

800

850

900

950

1000 1050 1100 1150 1200

TA = +85°C

TA = +25°C

TA = –40°C

Figure 5. Input IP3 vs. RF Frequency

RF FREQUENCY (MHz)

TA = +85°C

TA = +25°C

TA =–40°C

700

750

800

850

900

950

1000 1050 1100 1150 1200

Figure 6. Input IP2 vs. RF Frequency

RF FREQUENCY (MHz)

TA = +85°C

TA = +25°C

TA = –40°C

700

750

800

850

900

950

1000 1050 1100 1150 1200

Figure 7. Input P1dB vs. RF Frequency

RF FREQUENCY (MHz)

700

750

800

850

900

950

1000 1050 1100 1150 1200

TA = +85°C

TA = +25°C

TA = –40°C

Figure 8. SSB Noise Figure vs. RF Frequency
