PD064VT4

The information contained herein is the exclusive property of Prime View International Co., Ltd. and shall not be distributed,

reproduced, or disclosed in whole or in part without prior written permission of Prime View International Co., Ltd.

Page:13

7-6) Vertical Display Position

Mode

Hsync

Vsync

V-Start Position

V-Display

Remark

VGA-480

Positive / Negative

Positive / Negative

34

480 lines

VGA-400

Negative

Positive

17

400 lines

Note 7-7

VGA-350

Positive

Negative

30

350 lines

Note 7-8

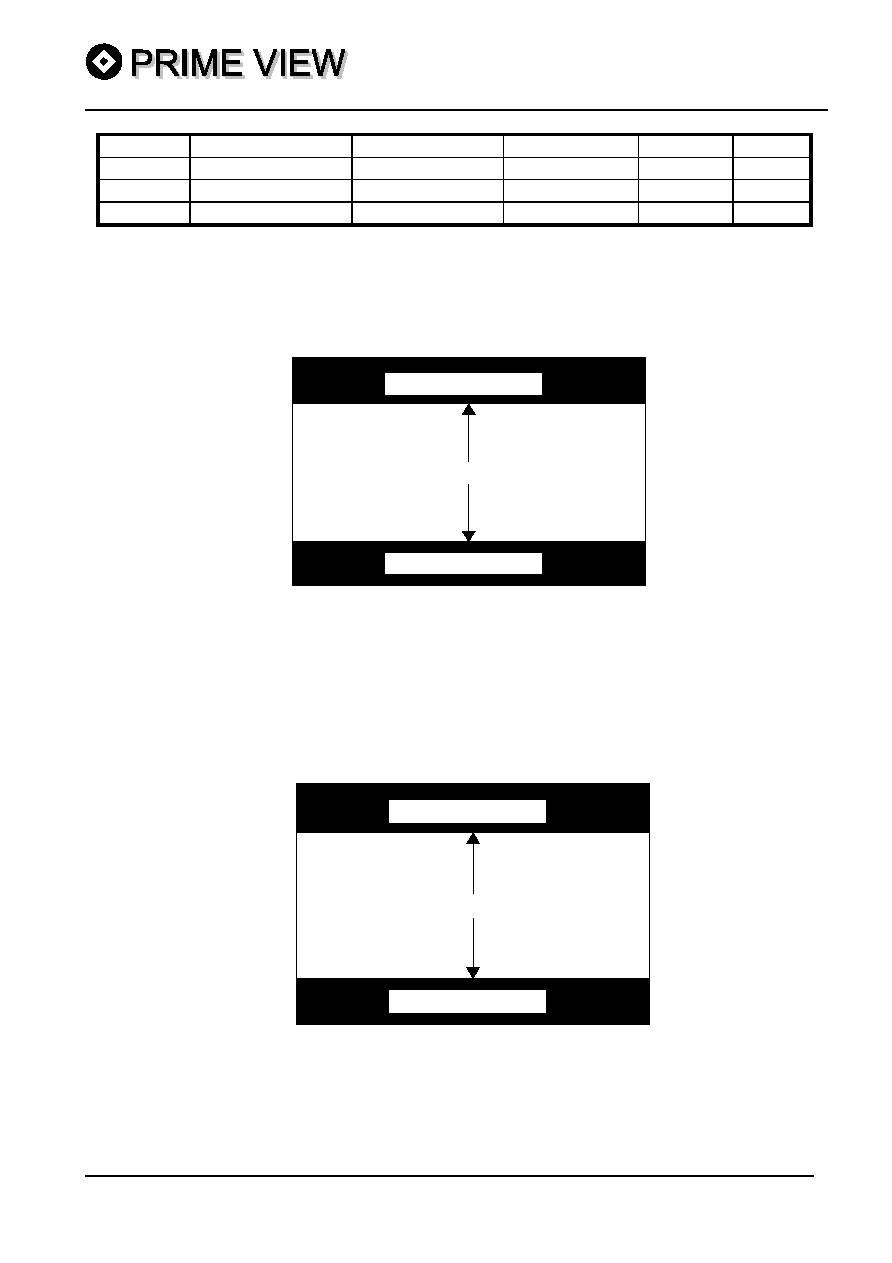

Note 7-7 :As the format is VGA-400 (Hsync = Negative , Vsync = Positive) , LCD module will adjust

the display area to the center of display . At this time , both of the upper and lower display

areas have 40 blanking lines (the display color is black) . The actual display area is center

400 lines .

40 B la n k in g Line s

40 0 D is p la y Line s

40 B la n k in g Line s

Note 7-8 : As the format is VGA-350 (Hsync = Positive, Vsync = Negative) , LCD module will adjust

the display area to the center of display . At this time , both of the upper and lower display

areas have 65 blanking lines (the display color is black) . The actual display area is center

350 lines .

65 Blanking Lines

350 Display Lines

65Blanking Lines
