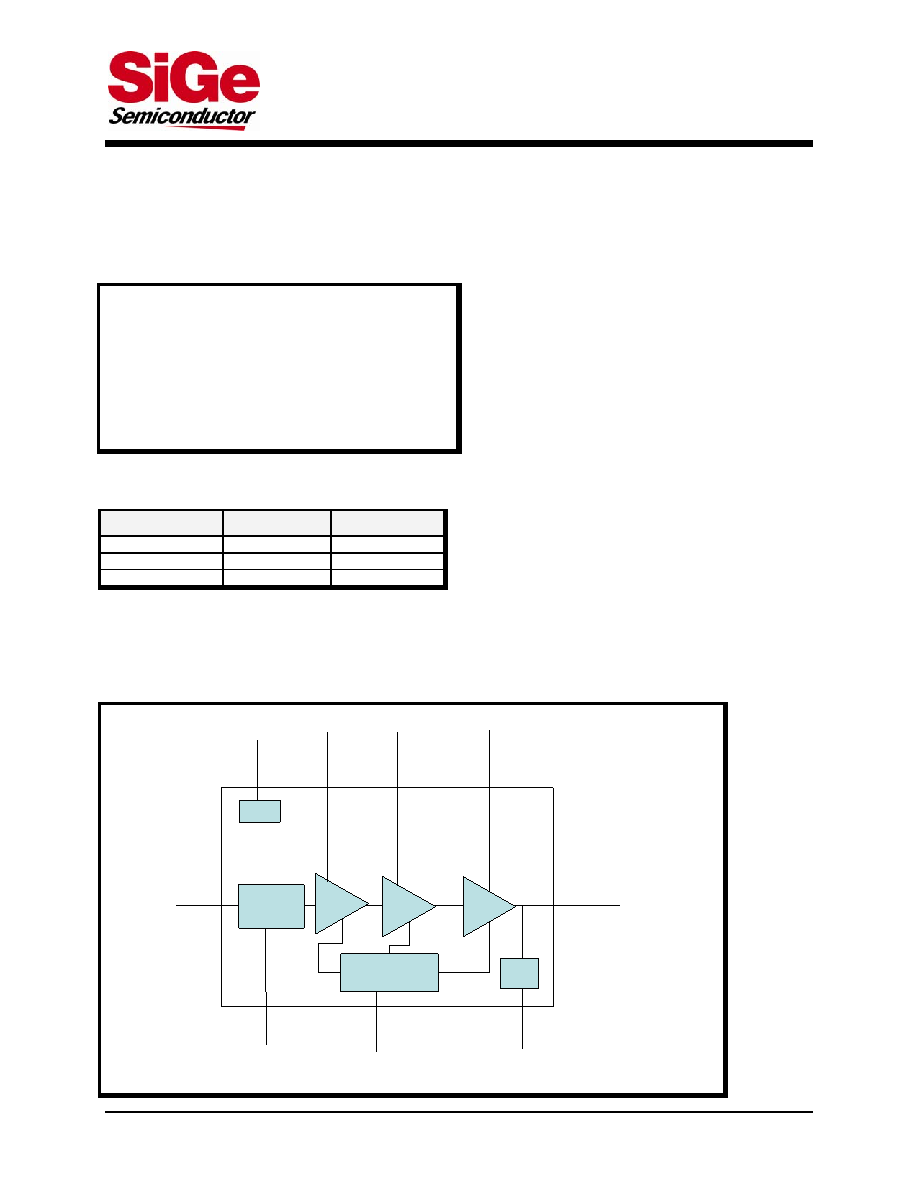

1 / 2 page

SE7262L

2.5-2.7 GHz WiMAX Power Amplifier

Applications

IEEE802.16e WiMAXTM

CPE and Mobile Computing

Features

25.5 dBm output power, with -28 dB EVM at 3.3V

High efficiency power amplifier with PAE>20%

37 dB gain

Integrated Step Attenuator

Integrated output power detector

All RF ports matched for 50 Ω operation

Supply voltage: 2.9 V – 4.2 V

Lead free, Halogen free, ROHS compliant

package (4 x 4 x 0.9 mm), MSL 3

Ordering Information

Part No.

Package

Remark

SE7262L

16 pin QFN

Samples

SE7262L-R

16 pin QFN

Tape and Reel

SE7262L-EK1

N/A

Evaluation kit

Product Description

The SE7262L WiMAX Power Amplifier is a high

performance device offering high output power with

high linearity and exceptional efficiency. Designed for

portable or mobile applications in the 2.5-2.7 GHz

band, it supports the IEEE 802.16d and IEEE 802.16e

wireless standards.

.

Functional Block Diagram

Figure 1: Functional Block Diagram

Bias Control

Power

Det

RF in

VATTN

VREF

VDET

RF out

VDD1

VDD2

VDD3

Step

Attn

Temp

Sensor

TEMP

Bias Control

Power

Det

RF in

VATTN

VREF

VDET

RF out

VDD1

VDD2

VDD3

Step

Attn

Temp

Sensor

TEMP

DST-00155 Rev 1.8 May-26-2009

1 of 10
