AD9572

Rev. 0 | Page 17 of 20

OUTLINE DIMENSIONS

0.50

BSC

BOTTOM VIEW

TOP VIEW

PIN 1

INDICATOR

EXPOSED

PAD

PIN 1

INDICATOR

SEATING

PLANE

0.05 MAX

0.02 NOM

0.20 REF

COPLANARITY

0.08

0.30

0.25

0.18

6.10

6.00 SQ

5.90

0.80

0.75

0.70

FORPROPERCONNECTIONOF

THE EXPOSED PAD, REFER TO

THE PIN CONFIGURATION AND

FUNCTION DESCRIPTIONS

SECTION OF THIS DATA SHEET.

0.45

0.40

0.35

0.25 MIN

*4.80

4.70 SQ

4.50

COMPLIANT TO JEDEC STANDARDS MO-220-WJJD-5

WITH EXCEPTION TO EXPOSED PAD DIMENSION.

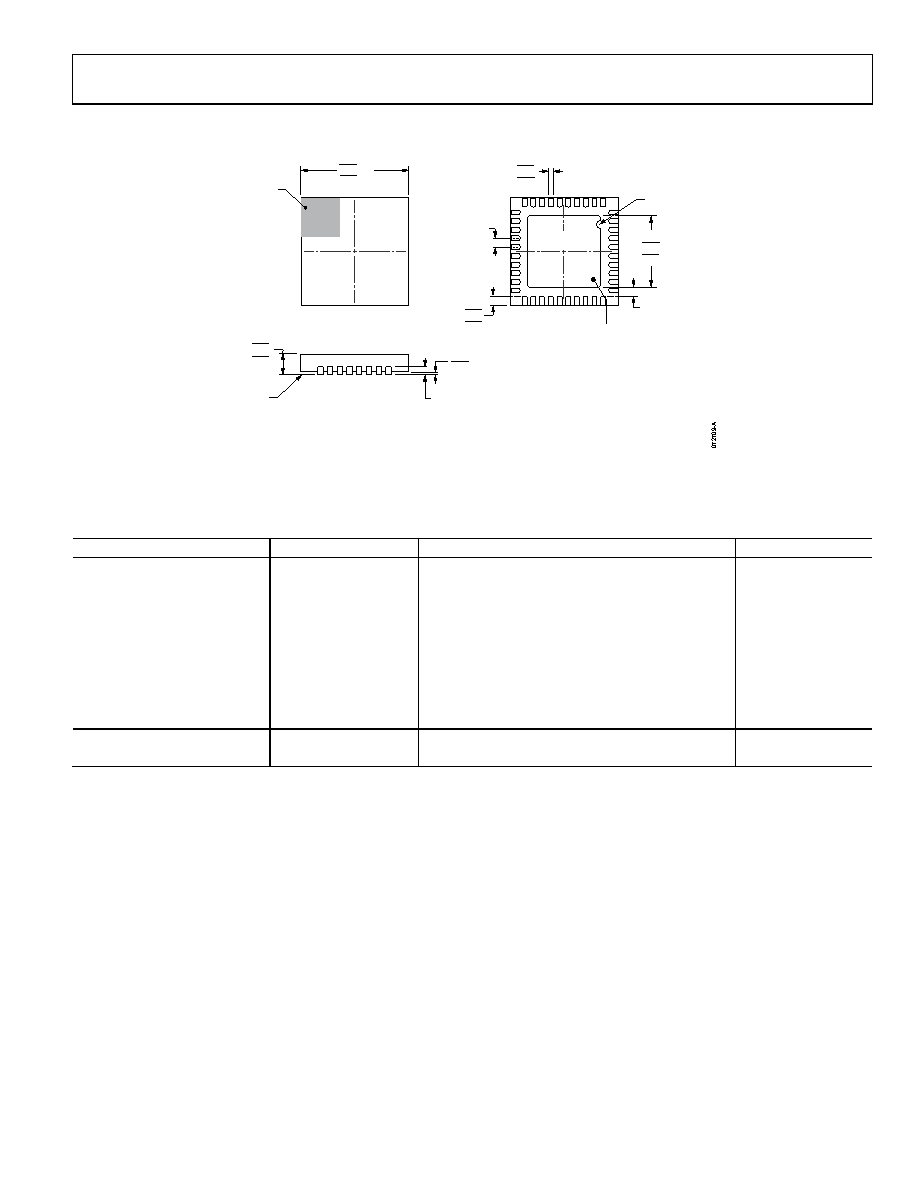

Figure 21. 40-Lead Lead Frame Chip Scale Package [LFCSP_WQ]

6 mm × 6 mm Body, Very Very Thin Quad

(CP-40-7)

Dimensions shown in millimeters

ORDERING GUIDE

Model

Temperature Range

Package Description

Package Option

AD9572ACPZLVD1, 2

−40°C to +85°C

40-Lead Lead Frame Chip Scale Package [LFCSP_WQ]

CP-40-7

AD9572ACPZLVD-RL1, 2

−40°C to +85°C

40-Lead Lead Frame Chip Scale Package [LFCSP_WQ],

7”Tape Reel, 2,500 Pieces

CP-40-7

AD9572ACPZLVD-R71, 2

−40°C to +85°C

40-Lead Lead Frame Chip Scale Package [LFCSP_WQ],

7”Tape Reel, 750 Pieces

CP-40-7

AD9572ACPZPEC1, 3

−40°C to +85°C

40-Lead Lead Frame Chip Scale Package [LFCSP_WQ]

CP-40-7

AD9572ACPZPEC-RL1, 3

−40°C to +85°C

40-Lead Lead Frame Chip Scale Package [LFCSP_WQ],

7”Tape Reel, 2,500 Pieces

CP-40-7

AD9572ACPZPEC-R71, 3

−40°C to +85°C

40-Lead Lead Frame Chip Scale Package [LFCSP_WQ],

7”Tape Reel, 750 Pieces

CP-40-7

AD9572-EVALZ-LVD1, 2

Evaluation Board

AD9572-EVALZ-PEC1, 3

Evaluation Board

1 Z = RoHS Compliant Part.

2 LVD indicates LVDS compliant, differential clock outputs.

3 PEC indicates LVPECL compliant, differential clock outputs.
