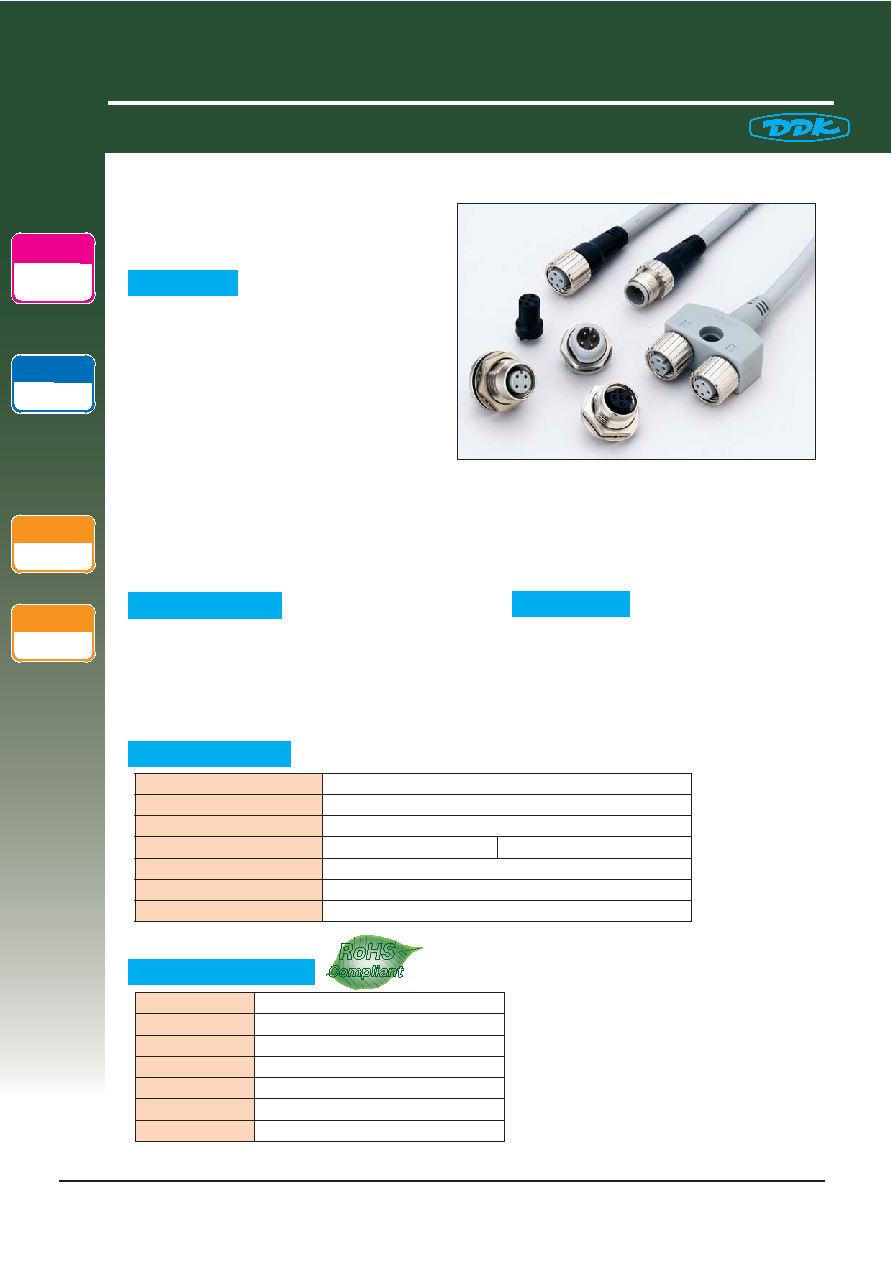

The CM02B series is a M12 sized and

sealed circular connector developed for the

connection of various sensors equipment.

 This series conforms to NECA 4202,

official standard of the Japan Electric Control

Equipment lndustry Association.

The use of the CM02B series will drastically

decrease wiring work man-hours needed to connect sensors.

 The CM02B series can be used in harsh environmental condition, having IP67 rated for

protection against moisture and dust.

This series is also intemateable with our CM01 series.

CM02B Series

RoHS

Compliant

RoHS

Compliant

M12 Sized & Sealed Circular Connector

・UL94V-0 insulator flammability rating

・Over molding style cable assembly

・Number of Contacts : 4

Rated Current

3A/Contact

Rated Voltage

125V DC 

Dielectric Withstanding Voltage  

1,500V AC for 1 minute

Insulation Resistance

1,000 MΩ Min. / Connector

100 MΩ Min. / Cable assembly

Operating Temperature Range

-25℃ to +70℃

Waterproof

IP67 when mated

Cable

Conductor Size : 20AWG / Colored, 1-Brown 2-White 3-Blue 4-Black

Insulator

Plastic(UL94V-0)

Contact

Copper Alloy / Gold Plating

Coupling Ring

Zinc Alloy / Nickel Plating

Shell

Zinc Alloy or Copper Alloy / Nickel Plating

Nut & Washer

Zinc Alloy or Copper Alloy / Nickel Plating

Gasket

Synthetic Rubber / Black

Over Molding Resin

Plastic(UL94V-0)/Gray

Waterproof

IP 67

Lock Type

Threaded

Coupling

Conforming

Standard

NECA 4202

Size

M12

1. Various sensors

2. Measurement equipment, medical equipment,

telecommunications equipment, and various other

electronic and electric equipment

◆ OUTLINE

◆ APPLICATIONS

◆ FEATURES

◆ SPECIFICATIONS

◆ MATERIALS/FINISH
