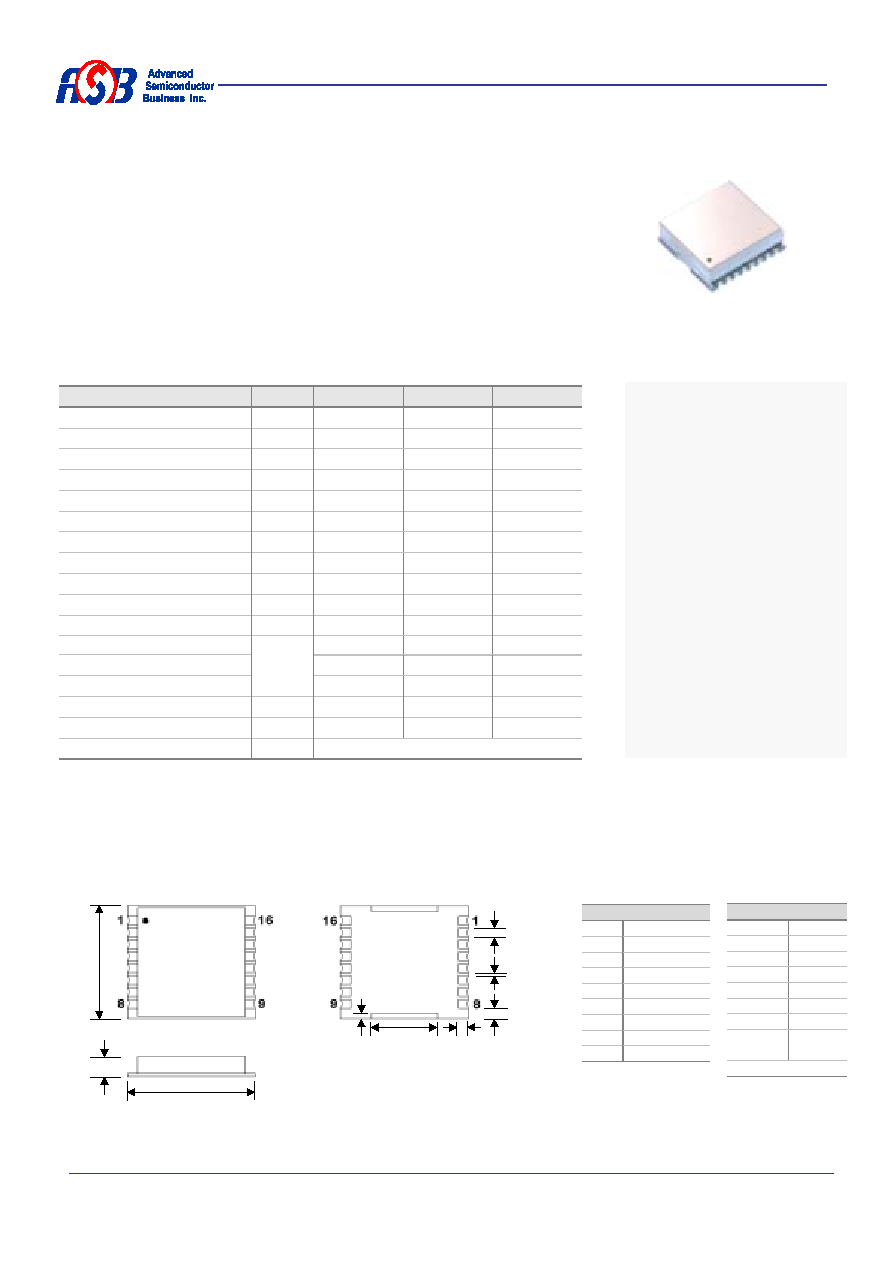

Plerow APL0915-R

PLL Module

Parameter

Unit

Min.

Typical

Max.

Frequency Range

MHz

915

Output Power

dBm

1

3

5

Supply Voltage

V

4.7

5.0

5.3

Current Consumption

mA

30

40

Channel Step Size

kHz

200

2 Harmonics (Fundamental)

dBc

-25

-20

Spurious Level

dBc

-75

-70

Lock Time

ms

5

10

Reference Frequency

MHz

10

Reference Input Level

dBm

-5

0

5

Phase Noise (C / N)

@ 1 kHz

-80

-75

@ 10 kHz

-105

-102

@ 100 kHz

dBc/Hz

-120

-115

Output Impedance

Ω

50

Operating Temp. Range

°C

-40

25

85

Package Type & Size

mm

SMT, 19.0W

×19.0L×5.8H

1) Measurement conditions are as follows: T = 25

°C, V

CC = 5 V, Freq. = 915 MHz, 50 ohm system.

Dimension (mm)

A

19.0

B

19.0

C

5.8

D

1.5

E

0.5

F

1.75

G

1.35

H

15.0

I

0.9

Tolerance:

± 0.2

Pin Configuration

1

GND

2

GND

3

GND

4

OSC IN

9

VCC (VCO)

13

RF OUT

15

VCP (PLL)

16

LOCK DETECT

Others

Ground

Features

Specifications

Outline Drawing

∙ +3 dBm Output Level at 915 MHz

∙ Channel Step Size : 200kHz

∙ 2

nd Harmonic: < -20 dBc

∙ Spurious Level : < - 70dBc

∙ Lock Time : < 10ms

∙ 30 mA Current Consumption

A

F

E

D

C

B

HG

Top View

Side View

Bottom View

I

Description

The plerow

TM PLL synthesizer module was

designed for use in wireless and wireline

systems in a wide range of frequency from

50 MHz to 6 GHz. ASB’s PLL provides ex-

ceptionally low spurious and phase noise

performance with fast locking time and low

current consumption. All products are avail-

able in a surface-mount type package.

More Information

Website: www.asb.co.kr

E-mail: sales@asb.co.kr

Tel: (82) 42-528-7220

Fax: (82) 42-528-7222

ASB Inc., 4th Fl. Venture Town

Bldg., 367-17 Goijeong-Dong,

Seo-Gu, Daejon 302-716, Korea
