1 / 4 page

Rev. B, Sep 2005

CMOS NAND Gate And INVERTER

Operating Voltage Range : 2V ~ 5.5V

High Speed Operation

: tpd = 2.6ns TYP

Low Power Consumption : 1µ

µ

µA (max)

MSOP-8A Package

■Applications

Palmtops

Digital Equipment

■

Description

ML74WLACSRG

comprises

of

CMOS

NAND

gate

and

INVERTER, manufactured using silicon gate CMOS processes.

The small quiescent current, which is one of the features of the

CMOS logic, gives way to high speed operations which enables

LS-TTL.

With wave forming buffers connected internally, stabilized output

can be achieved as the series offers high noise immunity.

As the series is integrated into a mini molded, MSOP-8A package,

high density mounting is possible.

■

Features

High Speed Operation

: tpd = 2.6ns TYP (Vcc=5V)

Operating Voltage Range: 2V ~ 5.5V

Low Power Consumption: 1µA (max)

Small Package

: MSOP-8A

■

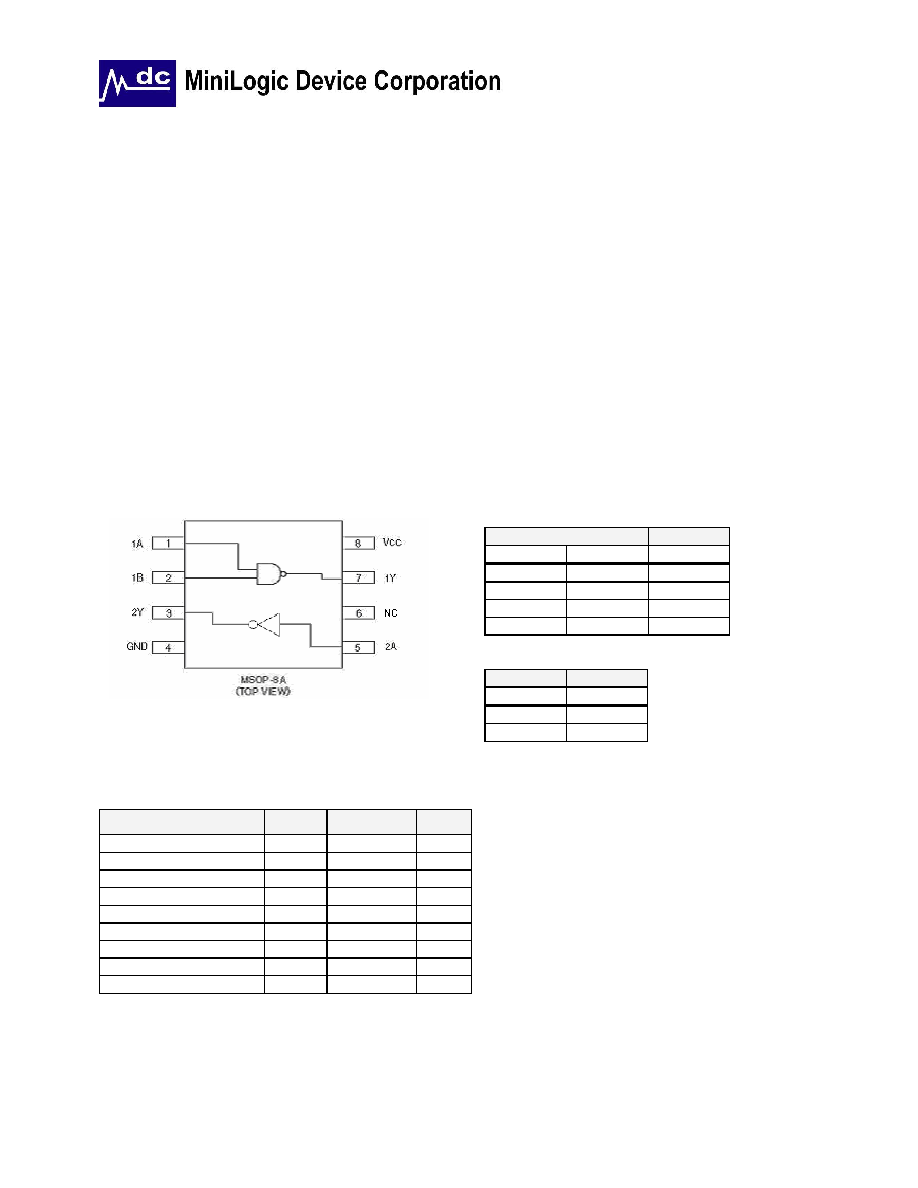

Pin Configuration

■

Function

NAND GATE

INPUT

OUTPUT

A

B

Y

H

L

H

L

H

L

H

L

H

INVERTER

INPUT

OUTPUT

A

Y

H

L

H

H=High level

L=Low level

■

Absolute Maximum Ratings

Ta=-40°C~85°C

PARAMETER

SYMBOL

RATINGS

UNITS

Power Supply Voltage

Vcc

-0.5 ~ +6.0

V

Input voltage

VIN

-0.5 ~ +6.0

V

Output Voltage

VOUT

-0.5 ~ Vcc +0.5

V

Input Diode Current

IIK

±20

mA

Output Diode current

IOK

±20

mA

Switch Output Current

IOUT

±25

mA

Vcc, GND Current

ICC, IGND

±50

mA

Power Dissipation (Ta=25°C)

Pd

300

mW

Storage Temperature

Tstg

-65 ~ +150

°C

Note: Voltage is all Ground standardized.
