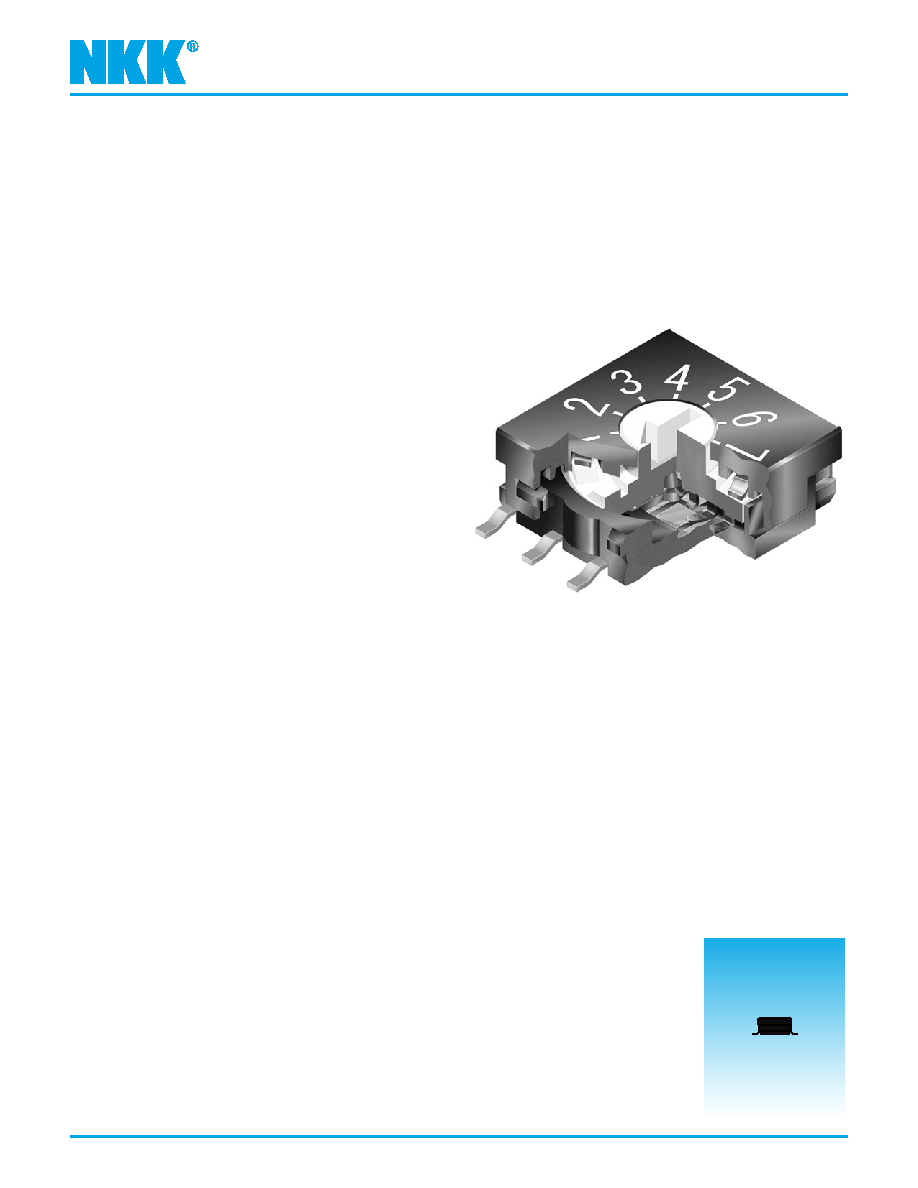

10mm Ultra-Thin SMT DIP Rotaries

Series FR02

Distinctive Characteristics

Slim .150” (3.8mm) body has the lowest profile in the industry and

allows close stacking of PC boards.

Highly visible legends and screwdriver actuator with

arrow position indication provide trouble-free

code setting.

Detent mechanism gives crisp, positive action

for accurate switch setting.

Use of heat resistant resin allows infrared

convection reflow soldering.

Gull-winged terminals ensure mechanical

stability during soldering and simplify solder

joint inspection.

Cam activated movable contact and gold contacts

assure contact reliability and continuity.

Tape-reel packaging meets EIA-481-2 Standard.

Coplanarity: all considered surfaces must lie between two parallel planes

that are a maximum distance apart of .0059” (0.15mm). (Additional

coplanarity details in Terms and Acronyms in the Supplement section.)

Actual Size
