Agency Listings

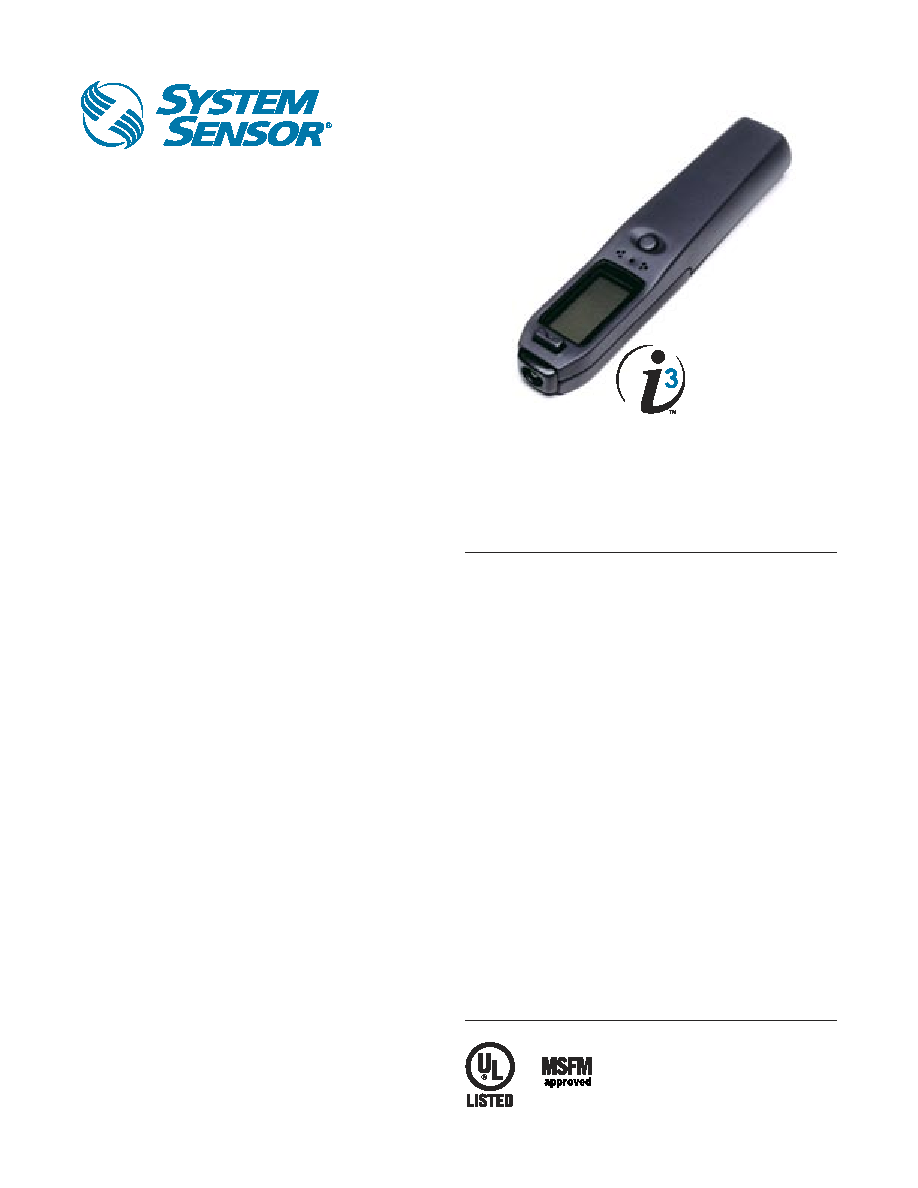

Sensitivity Reader

System Sensor’s i3 series sensitivity reader displays

sensitivity and status indication readings of all i3 series

detectors and other compatible System Sensor

smoke detectors.

Features

An LCD screen that displays sensitivity by percent-per-foot

obscuration

Connectors for a hand-held device or threaded extension pole

Dual LED and sounder indicators

A low battery indicator

Automatic shut-off after 30 minutes

•

•

•

•

•

Sensitivity readers, voltmeters and multimeters are designed

to assure smoke detectors are working within their listed and marked

sensitivity ranges.

With the System Sensor i3 series sensitivity reader (SENS-RDR),

an LCD screen displays a detector’s exact sensitivity by percent-

per-foot obscuration. Therefore, unlike many sensitivity readers,

voltmeters and multimeters that display only the voltage rating, the

step of cross-referencing a voltage reading to a sensitivity range is

eliminated with the SENS-RDR. Beyond displaying the sensitivity

reading, the LCD screen indicates the status of the detector in alpha-

numeric text as GOOD, SERVICE or REPLACE.

Testing a detector’s sensitivity is a simple and quick task. The

SENS-RDR connects to hand-held devices and threaded extension

poles for those detectors installed out of reach, eliminating the need

for a ladder. Within 10 seconds, the dual LED and sounder will alert

the installer that the reading has been taken. With dual indicators,

the installer won’t have to rely on a single LED in areas with visibility

issues or a single sounder in areas with audibility issues.

The SENS-RDR operates with two AA alkaline batteries. To ensure

these batteries are operable, the SENS-RDR has a low battery

indicator. And, to maximize battery life, the SENS-RDR automatically

shuts off after 30 minutes.
