1

LT1813/LT1814

18134fa

FEATURES

APPLICATIO S

DESCRIPTIO

TYPICAL APPLICATIO

Dual/Quad 3mA, 100MHz,

750V/

µs Operational Amplifiers

The LT

®1813/LT1814 are dual and quad, low power, high

speed, very high slew rate operational amplifiers with

excellent DC performance. The LT1813/LT1814 feature

reduced supply current, lower input offset voltage, lower

input bias current and higher DC gain than other devices

with comparable bandwidth. The circuit topology is a

voltage feedback amplifier with the slewing characteris-

tics of a current feedback amplifier.

The output drives a 100

Ωloadto ±3.5Vwith ±5Vsupplies.

On a single 5V supply, the output swings from 1.1V to 3.9V

with a 100

Ω load connected to 2.5V. The amplifiers are

stable with a 1000pF capacitive load making them useful

in buffer and cable driver applications.

The LT1813/LT1814 are manufactured on Linear

Technology’s advanced low voltage complementary bipo-

lar process. The LT1813 dual op amp is available in

8-pin MSOP, SO and 3mm x 3mm low profile (0.8mm)

dual fine pitch leadless packages (DFN). The quad LT1814

is available in 14-pin SO and 16-pin SSOP packages. A

single version, the LT1812, is also available (see separate

data sheet).

■ 100MHz Gain Bandwidth Product

■ 750V/

µs Slew Rate

■ 3.6mA Maximum Supply Current per Amplifier

■ Tiny 3mm x 3mm x 0.8mm DFN Package

■ 8nV/

√Hz Input Noise Voltage

■ Unity-Gain Stable

■ 1.5mV Maximum Input Offset Voltage

■ 4

µA Maximum Input Bias Current

■ 400nA Maximum Input Offset Current

■ 40mA Minimum Output Current, VOUT = ±3V

■

±3.5V Minimum Input CMR, VS = ±5V

■ 30ns Settling Time to 0.1%, 5V Step

■ Specified at

±5V, Single 5V Supplies

■ Operating Temperature Range: –40

°C to 85°C

■ Active Filters

■ Wideband Amplifiers

■ Buffers

■ Video Amplification

■ Communication Receivers

■ Cable Drivers

■ Data Acquisition Systems

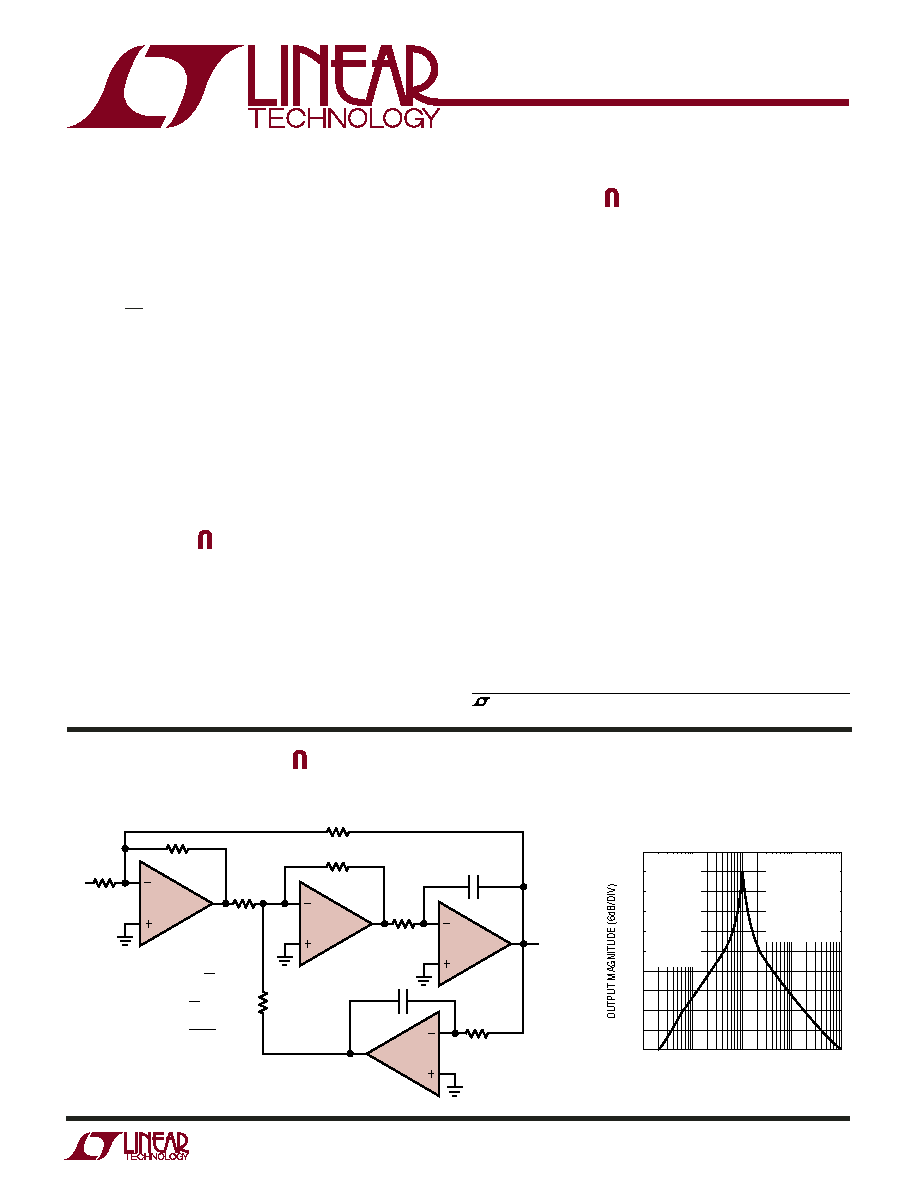

Bandpass Filter with Independently Settable Gain, Q and fC

Filter Frequency Response

, LTC and LT are registered trademarks of Linear Technology Corporation.

1/4 LT1814

RG

RQ

R

R1

RG

R

C

R1

RF

R

VIN

GAIN =

1/4 LT1814

BANDPASS

OUT

1/4 LT1814

1814 TA01

R1

RQ

Q =

1

2

πRFC

fC =

FREQUENCY (Hz)

0

1k

100k

1M

10M

1814 TA02

10k

R = 499

Ω

R1 = 499

Ω

RF = 475Ω

RQ = 49.9Ω

RG = 499Ω

C = 3.3nF

fC = 100kHz

Q = 10

GAIN = 1

VS = ±5V

VIN = 5VP-P

DISTORTION:

2nd < –76dB

3rd < –90dB

ACROSS FREQ

RANGE
