21 / 56 page

SCLK

32Clks

LRCLK

LeftChannel

24-BitMode

20-BitMode

16-BitMode

MSB

LSB

SCLK

32Clks

RightChannel

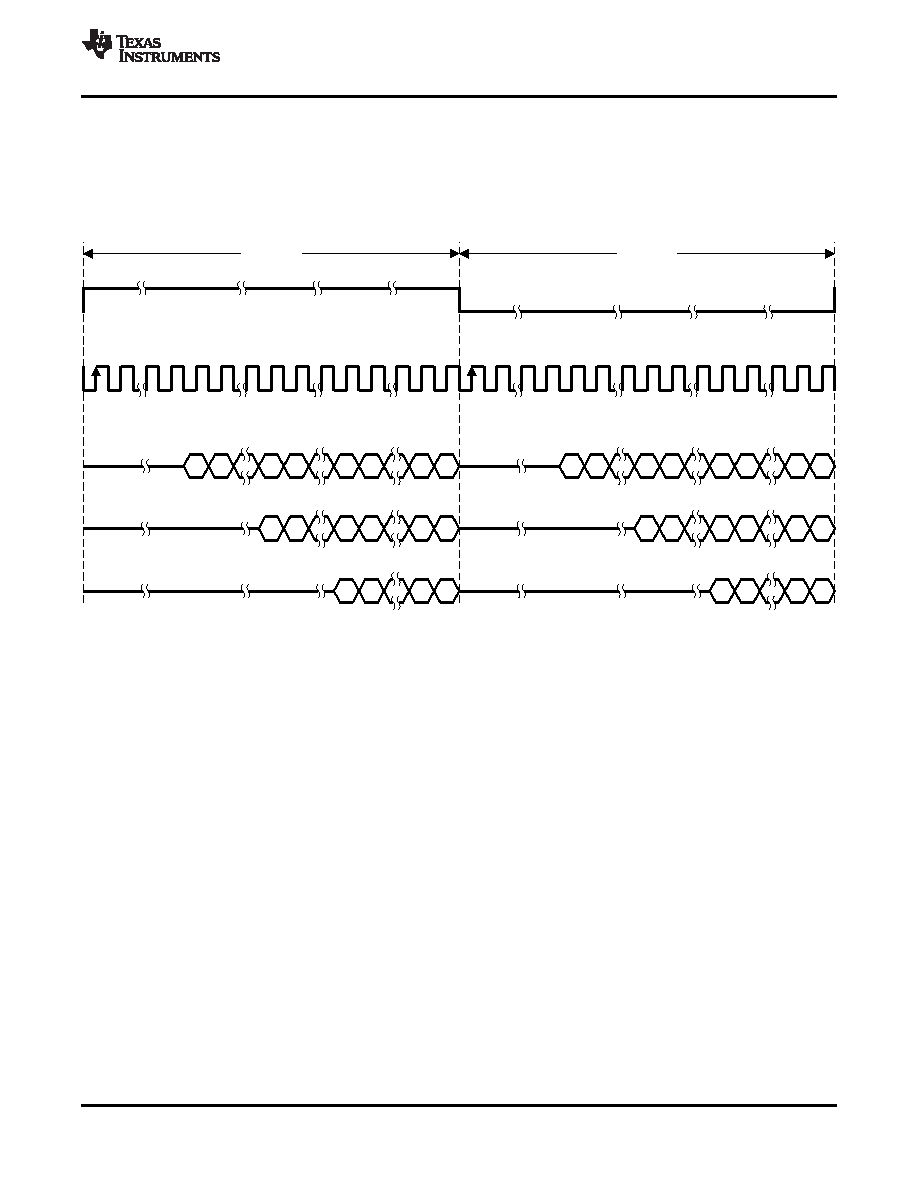

2-ChannelRight-Justified(SonyFormat)StereoInput

T0034-03

MSB

LSB

TAS5708

www.ti.com ........................................................................................................................................................................................... SLOS570 – DECEMBER 2008

it is for the right channel. LRCLK is high for the left channel and low for the right channel. A bit clock running at

32, 48, or 64 × fS is used to clock in the data. The first bit of data appears on the data 8 bit-clock periods (for

24-bit data) after LRCLK toggles. In RJ mode the LSB of data is always clocked by the last bit clock before

LRCLK transitions. The data is written MSB first and is valid on the rising edge of bit clock. The DAP masks

unused leading data bit positions.

Figure 24. Right Justified 64-fS Format
