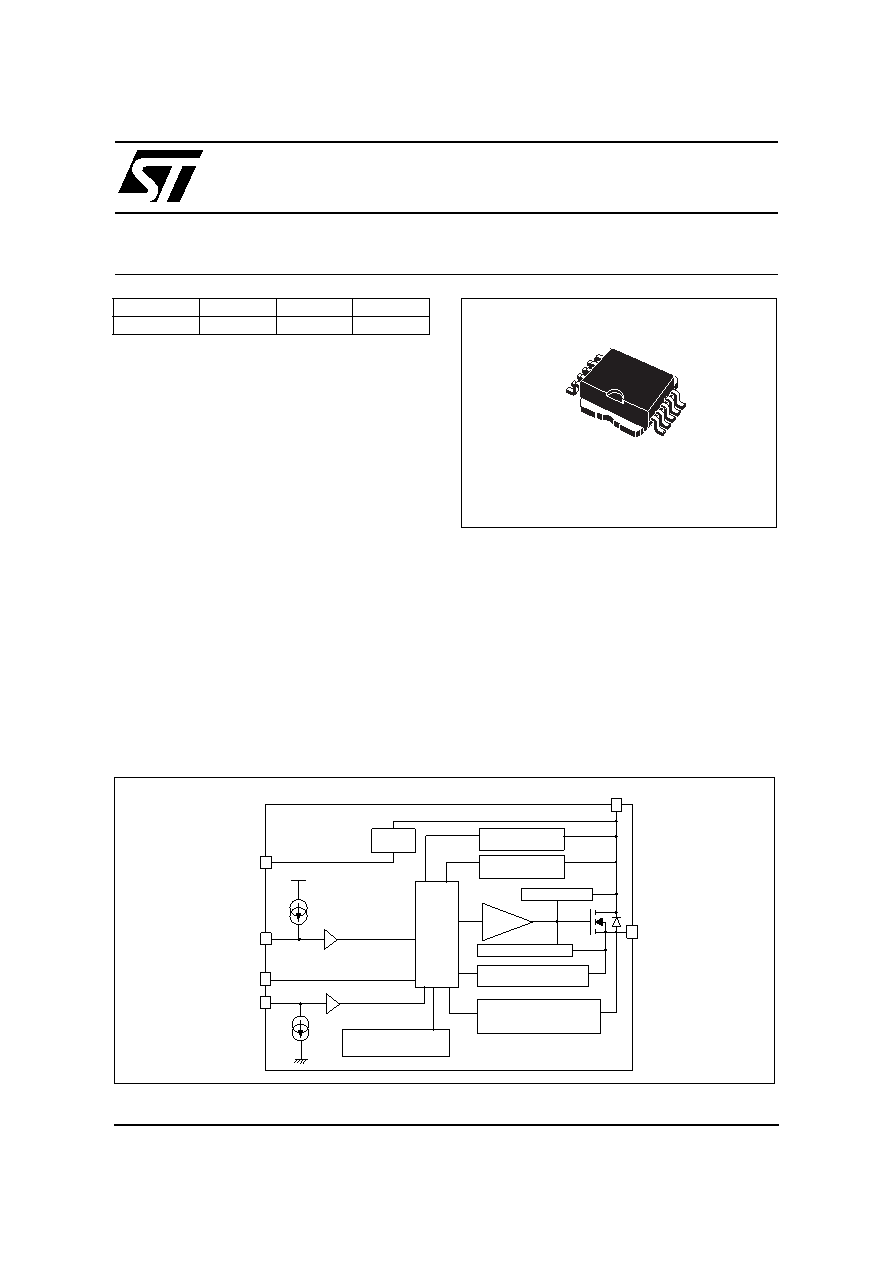

October 2000

1/11

®

1

VN710SP

AUTOMOTIVE GLOW PLUG DRIVER

s

CMOS COMPATIBLE INPUT

s

ON STATE OPEN LOAD DETECTION

s

OFF STATE OPENLOAD DETECTION

s

SHORTED LOAD PROTECTION

s

UNDERVOLTAGE AND OVERVOLTAGE

SHUTDOWN

s

PROTECTION AGAINST LOSS OF GROUND

s

VERY LOW STAND-BY CURRENT WHEN

ENABLE PIN IS LOW

s

REVERSE BATTERY PROTECTION (*)

DESCRIPTION

The VN710SP is a monolithic device made using

STMicroelectronics VIPower M0-3 technology,

intended for driving any kind of load with one side

connected to ground. Active VCC pin voltage

clamp protects the device against low energy

spikes (see ISO7637 transients compatibility

table). Active current limitation combined with

thermal shutdown protect the device against

overload. After a thermal shutdown event, device

stays latched off and diagnostic stays at a low

level until next falling edge of input signal. The

device detects open load condition both in on

state and off state. Output shorted to VCC is

detected in the off state. Device automatically

turns off in case of ground pin disconnection.

Enable pin allows to switch the device to idle state

with very low quiescent current from VCC. When

enable is low, device turns off regardless of input

pin state.

TYPE

RDS(on)

IOUT

VCC

VN710SP

18m

Ω

35 A

16 V

1

10

PowerSO-10™

PRELIMINARY DATA

UNDERVOLTAGE

OVERTEMPERATURE

VCC

GND

INPUT

OUTPUT

OVERVOLTAGE

CURRENT LIMITER

LOGIC

DRIVER

Power CLAMP

STATUS

VCC

CLAMP

ON STATE OPENLOAD

OFF STATE OPENLOAD

AND OUTPUT SHORTED

TO VCC DETECTION

ENABLE

DETECTION

BLOCK DIAGRAM

(*) See application schematic at page 7
