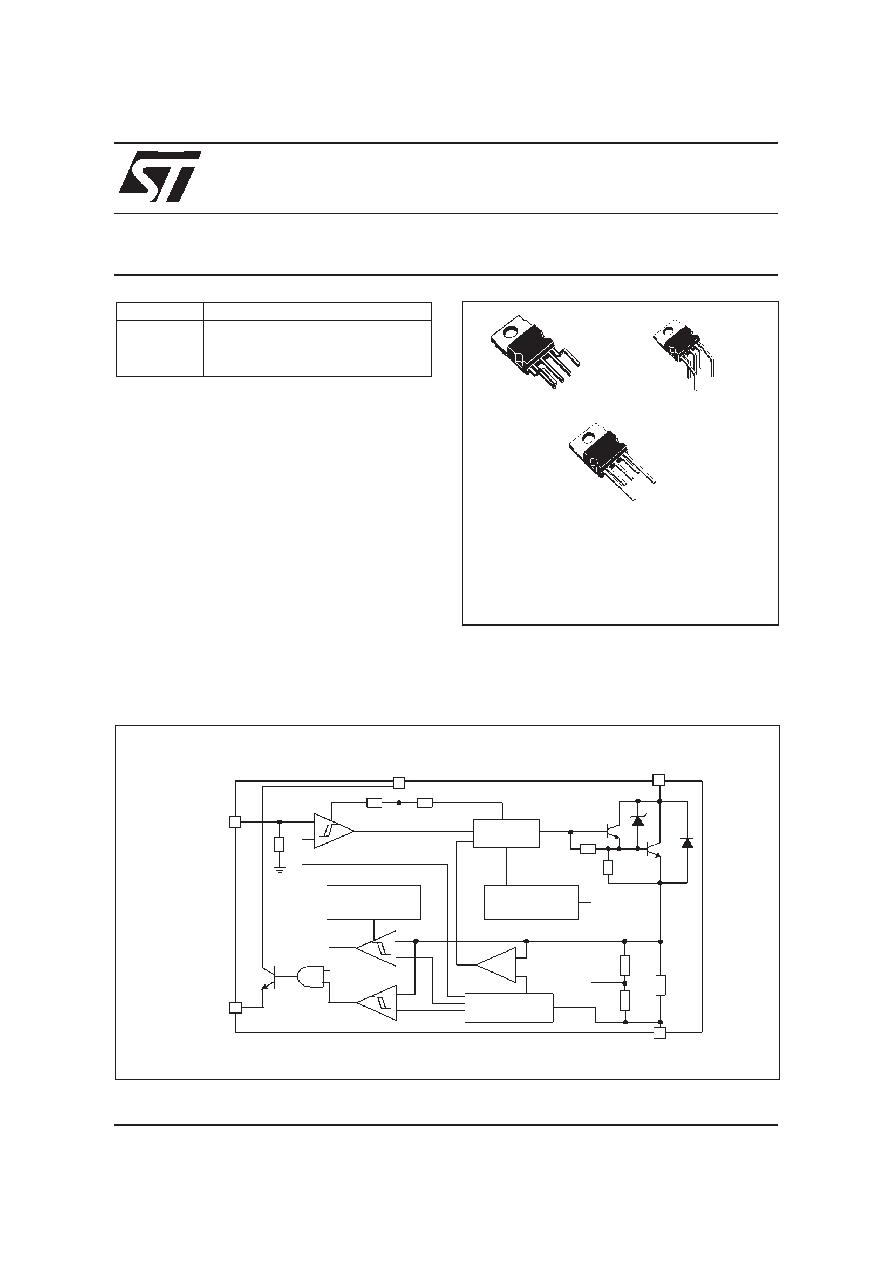

June 1999

1/9

®

VB027

/ VB027(011Y) / VB027(012Y)

HIGH VOLTAGE IGNITION COIL DRIVER

POWER I.C.

s

PRIMARY COIL VOLTAGE INTERNALLY SET

s

COIL CURRENT LIMIT INTERNALLY SET

s

LOGIC LEVEL COMPATIBLE INPUT

s

DRIVING CURRENT QUASI PROPORTIONAL

TO COLLECTOR CURRENT

s

DOUBLE FLAG-ON COIL CURRENT

DESCRIPTION

The VB027, VB027(011Y), VB027(012Y) is a high

voltage power integrated circuit made using the

STMicroelectronics VIPower

™ technology, with

vertical current flow power darlington and logic

level compatible driving circuit. Built-in protection

circuit for coil current limiting and collector voltage

clamping allows the device to be used as smart,

high voltage, high current interface in advanced

electronic ignition system.

TYPE

Vcl(min)

Icl(max)

Id(on)max

VB027

VB027(011Y)

VB027(012Y)

300V

9A

130mA

BLOCK DIAGRAM

DRIVER

GND

OVERTEMP.

FLAG 1

REFERENCE

PROTECTION

RSENSE

Vd

HVC

FLAG

INPUT

FLAG 2

QUASI PROP.

BASE CURRENT

PENTAWATT HV

+

-

+

-

PENTAWATT HV (011Y)

PENTAWATT HV (012Y)

ORDER CODES:

PENTAWATT HV

PENTAWATT HV (011Y)

VB027

VB027(011Y)

PENTAWATT HV (012Y)

VB027(012Y)
