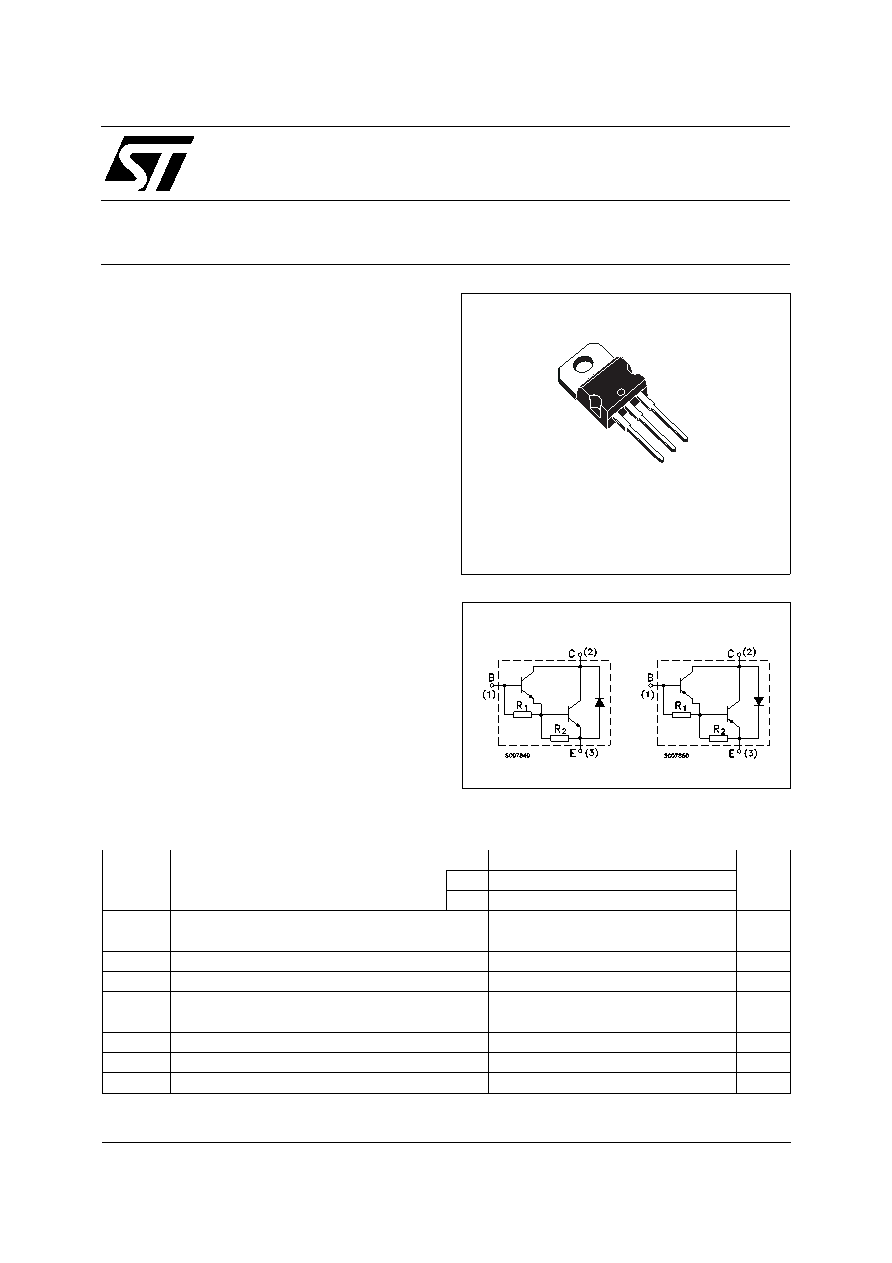

TIP142T

TIP147T

COMPLEMENTARY SILICON POWER

DARLINGTON TRANSISTORS

s

STMicroelectronics PREFERRED

SALESTYPES

s

COMPLEMENTARY PNP - NPN DEVICES

s

MONOLITHIC DARLINGTON

CONFIGURATION

s

LOW VOLTAGE

s

HIGH CURRENT

s

HIGH GAIN

APPLICATIONS

s

GENERAL PURPOSE SWITCHING

DESCRIPTION

The TIP142T is a silicon Epitaxial-Base NPN

power

transistor

in

monolithic

Darlington

configuration,

mounted

in

TO-220

plastic

package. It is intented for use in power linear and

switching applications.

The complementary PNP type is TIP147T.

INTERNAL SCHEMATIC DIAGRAM

March 2000

ABSOLUTE MAXIMUM RATINGS

Symbol

Parameter

Value

Unit

NPN

TIP142T

PNP

TIP147T

VCBO

Collector-Base Voltage (IE = 0)

100

V

VCEO

Collector-Emitter Voltage (IB = 0)

100

V

VEBO

Emitter-Base Voltage (IC = 0)

5

V

IC

Collector Current

15

A

ICM

Collector Peak Current (tp < 5ms)

20

A

IB

Base Current

0.5

A

Ptot

Total Dissipation at Tcase

≤ 25 oC

90

W

Tstg

Storage Temperature

- 65 to 150

oC

Tj

Max. Operating Junction Temperature

150

oC

For PNP types voltage and current values are negative.

1

2

3

TO-220

®

1/4
