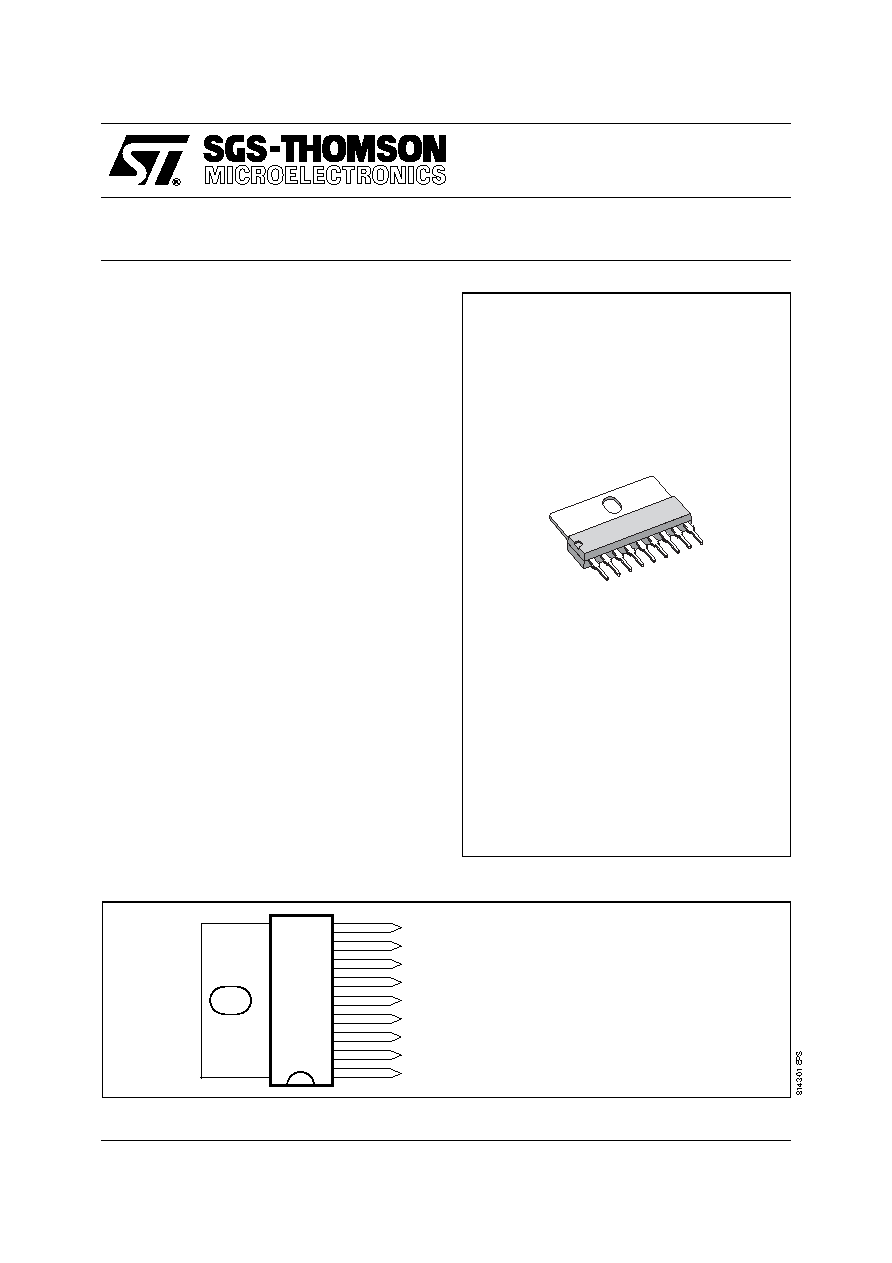

TDA8143

HORIZONTAL DEFLECTION POWER DRIVER

September 1993

9

8

7

6

5

4

3

2

1

GROUND

OUTPUT

V+

CC

SENSE-IN

GROUND

SPECIAL REMOTE STANDBY

CONTROL INPUT

PROTECTION AND REMOTE STANDBY INPUT

C

T

PIN CONNECTIONS

SIP9

(Plastic Package)

ORDER CODE : TDA8143

.

CONTROLLED DRIVING OF THE POWER

TRANSISTOR DURING TURN ON AND OFF

PHASE FOR MINIMUM POWER DISSIPA-

TION AND HIGH RELIABILITY

.

HIGH SOURCE AND SINK CURRENT CAPA-

BILITY

.

DISCHARGE CURRENT DERIVED FROM

PEAK CHARGE CURRENT

.

CONTROLLED DISCHARGE TIMING

.

DISABLE FUNCTION FOR SUPPLY UNDER

VOLTAGE AND NONSYNCHRONOUS OP-

ERATION

.

PROTECTION FUNCTION WITH HYSTERE-

SIS FOR OVERTEMPERATURE

.

OUTPUT DIODE CLAMPING

.

LIMITING OF THE COLLECTOR PEAK CUR-

RENT OF THE DEFLECTION POWER TRAN-

SISTOR DURING TURN ON PERIOD

.

SPECIAL REMOTE FUNCTION WITH DELAY

TIME TO SWITCH THE OUTPUT ON

DESCRIPTION

The TDA8143 is a monolithic integrated circuit

designed to drive the horizontal deflection power

tran-sistor.

The current source characteristic of this device is

adapted to the non-linear current gain behaviour of

the power transistor providing a minimum power

dissipation. The TDA8143 is internally protected

against short circuits and thermal overload.

1/9
