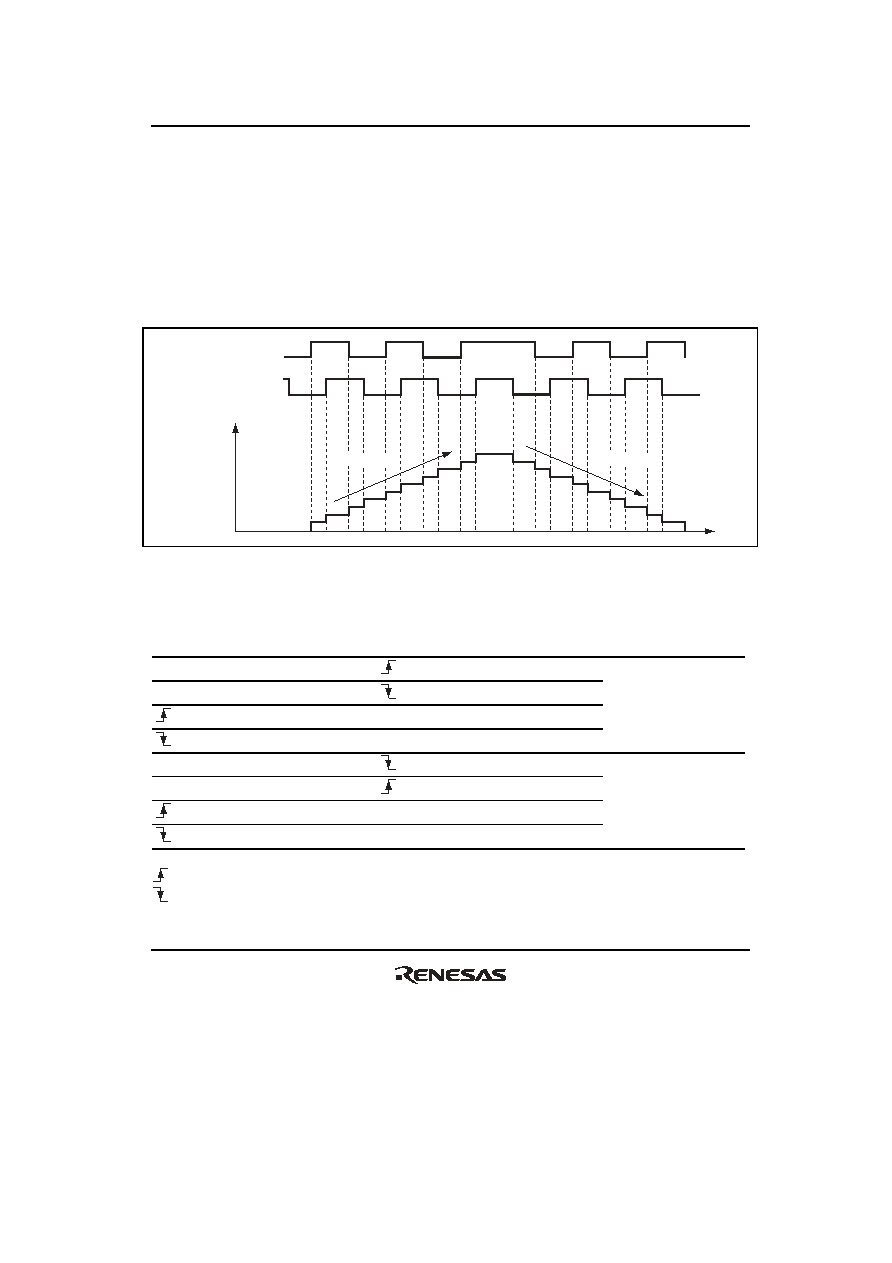

background image
Section 14 16-Bit Timer Pulse Unit (TPU)
Rev. 2.00 Sep. 24, 2008 Page 751 of 1468
REJ09B0412-0200
(2)
Examples of Phase Counting Mode Operation
In phase counting mode, TCNT counts up or down according to the phase difference between two
external clocks. There are four modes, according to the count conditions.
(a)
Phase counting mode 1
Figure 14.26 shows an example of phase counting mode 1 operation, and table 14.34 summarizes
the TCNT up/down-count conditions.
TCNT value
Time
Down-count
Up-count
TCLKA (channels 1 and 5)
TCLKC (channels 2 and 4)
TCLKB (channels 1 and 5)
TCLKD (channels 2 and 4)
Figure 14.26 Example of Phase Counting Mode 1 Operation
Table 14.34 Up/Down-Count Conditions in Phase Counting Mode 1
TCLKA (Channels 1 and 5)
TCLKC (Channels 2 and 4)
TCLKB (Channels 1 and 5)
TCLKD (Channels 2 and 4)
Operation
High level
Low level
Low level
High level
Up-count
High level
Low level
High level
Low level
Down-count
[Legend]
: Rising edge
: Falling edge
