Section 11 EXDMA Controller (EXDMAC)
Rev. 2.00 Sep. 24, 2008 Page 524 of 1468
REJ09B0412-0200
B
φ
EDREQ
EDRAK
EDACK
Start of transfer by
internal edge
confirmation
Start of transfer by
internal edge
confirmation
Start of transfer by
internal edge
confirmation
Bus release
EXDMAC single
transfer cycle
EXDMAC single
transfer cycle
EDREQ
acceptance
internal
processing
state
CPU
operation
Start of high level sensing
Start of high level sensing
Start of high level sensing
Bus release
Bus release
EXDMAC single
transfer cycle

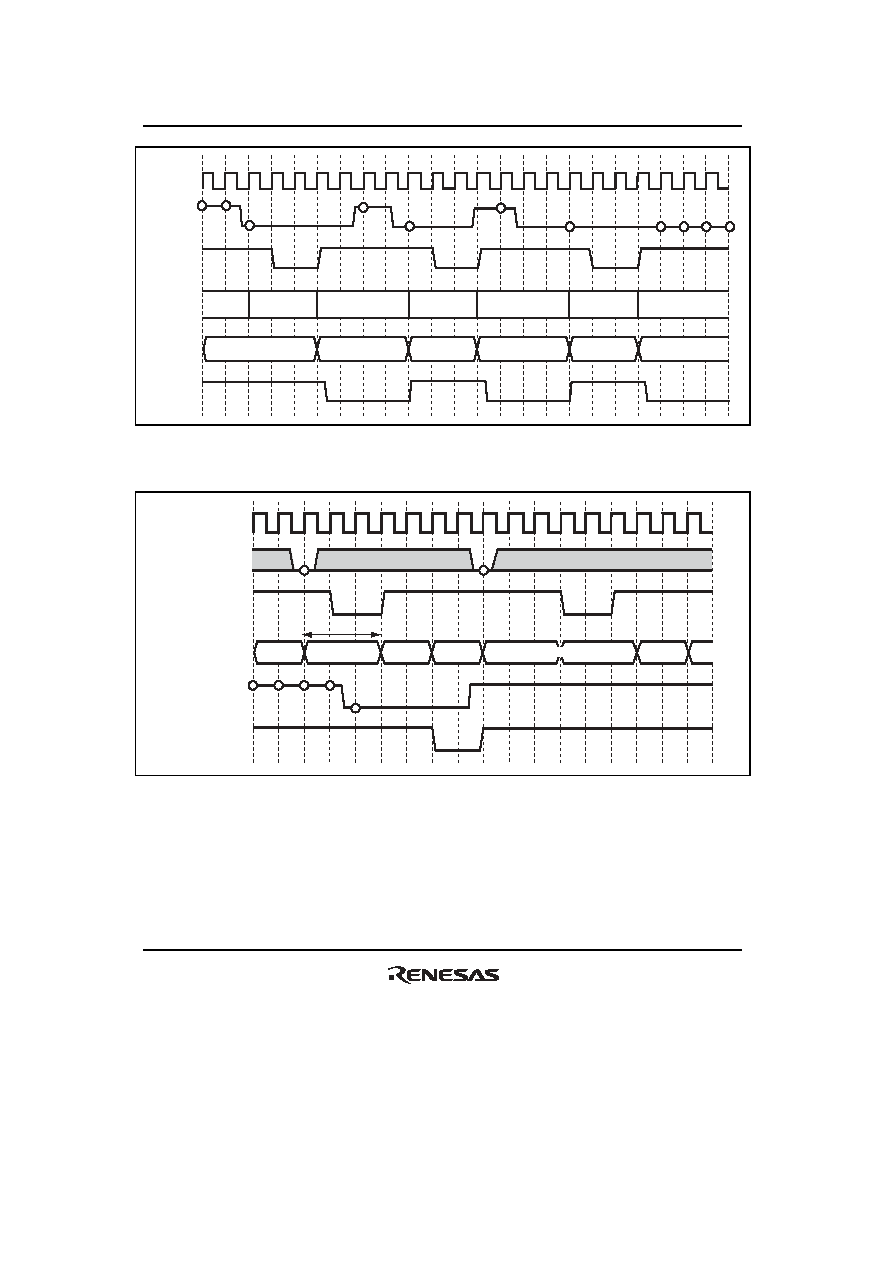

Figure 11.46 External Request/Normal Transfer Mode/Cycle Steal Mode (No
Conflict/Single Address Mode/Falling Edge Sensing)
3 cycles
B
φ
EDRAK of
another channel
Bus release
EXDMAC
transfer cycle
EXDMA
read
EXDMA
write
EXDMA
read
EXDMA
write
Transfer cycles of another channel
EDREQ of
another channel
EDREQ of
current channel
EDRAK of
current channel
Bus cycle
Figure 11.47 External Request/Normal Transfer Mode/Cycle Steal Mode
(Conflict with Another Channel/Dual Address Mode/Low Level Sensing)
