Section 11 EXDMA Controller (EXDMAC)
Rev. 2.00 Sep. 24, 2008 Page 506 of 1468
REJ09B0412-0200
11.5.10
Bus Cycles in Dual Address Mode
(1)
Normal Transfer Mode (Cycle Steal Mode)
In cycle steal mode, the bus is released after one byte, word, or longword has been transferred.
While the bus is released, one CPU, DMAC, or DTC bus cycle is initiated.
Figure 11.24 shows an example of transfer when
ETEND output is enabled, and word-size, normal
transfer mode (cycle steal mode) is performed from external 16-bit, 2-state access space to
external 16-bit, 2-state access space.
EXDMA read EXDMA write
Address bus
EXDMA read EXDMA write
EXDMA read EXDMA write
B
φ
RD
LHWR, LLWR
ETEND
Bus
release
Last transfer cycle
Bus
release
Bus
release
Bus
release

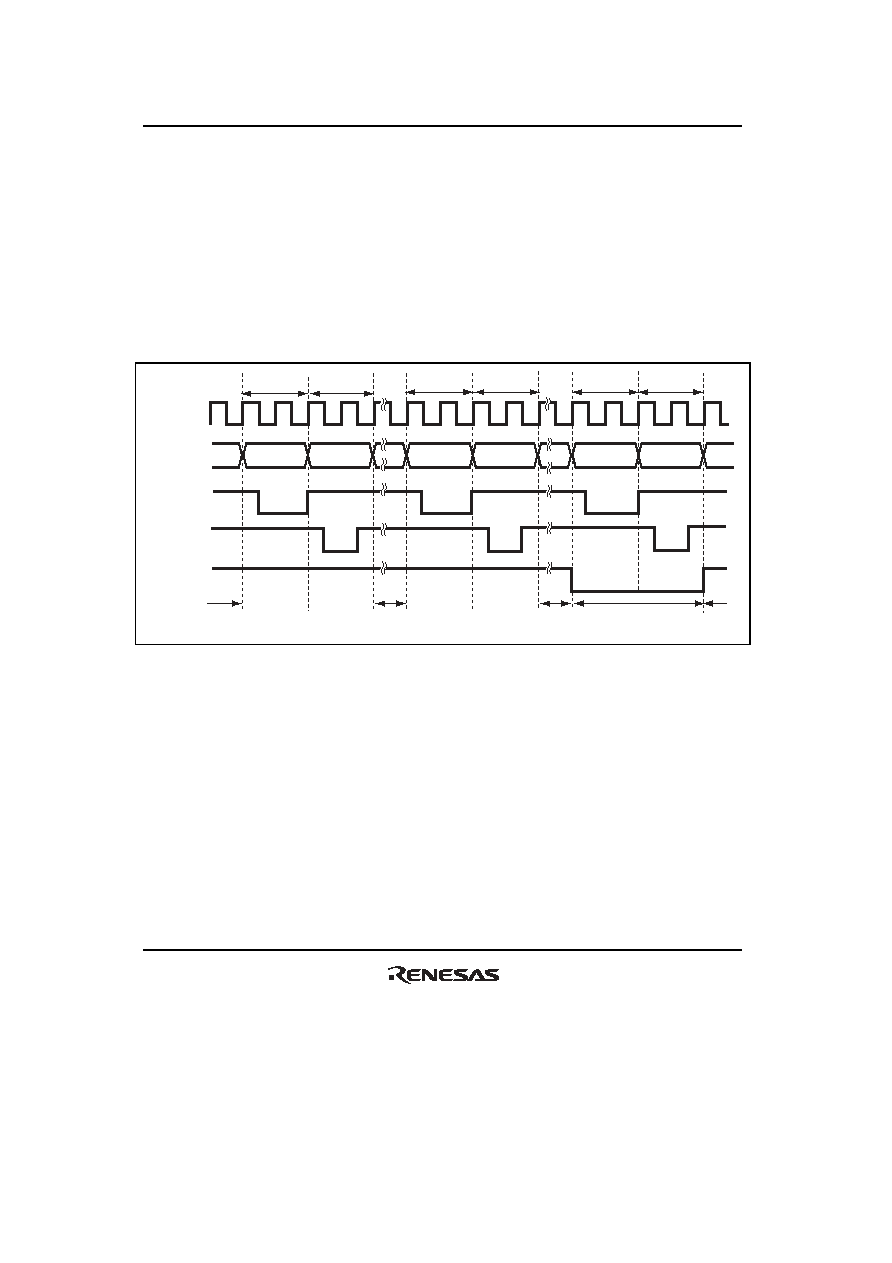

Figure 11.24 Example of Normal Transfer Mode (Cycle Steal Mode) Transfer
Figures 11.25 and 11.26 show examples of transfer when
ETEND output is enabled, and
longword-size, normal transfer mode (cycle steal mode) is performed from external 16-bit, 2-state
access space to external 16-bit, 2-state access space.
In figure 11.25, the transfer source (SAR) address is not at a longword boundary and the transfer
destination (DAR) address is at the longword boundary.
In figure 11.26, the transfer source (SAR) address is at the longword boundary and the transfer
destination (DAR) address is not at the longword boundary.
