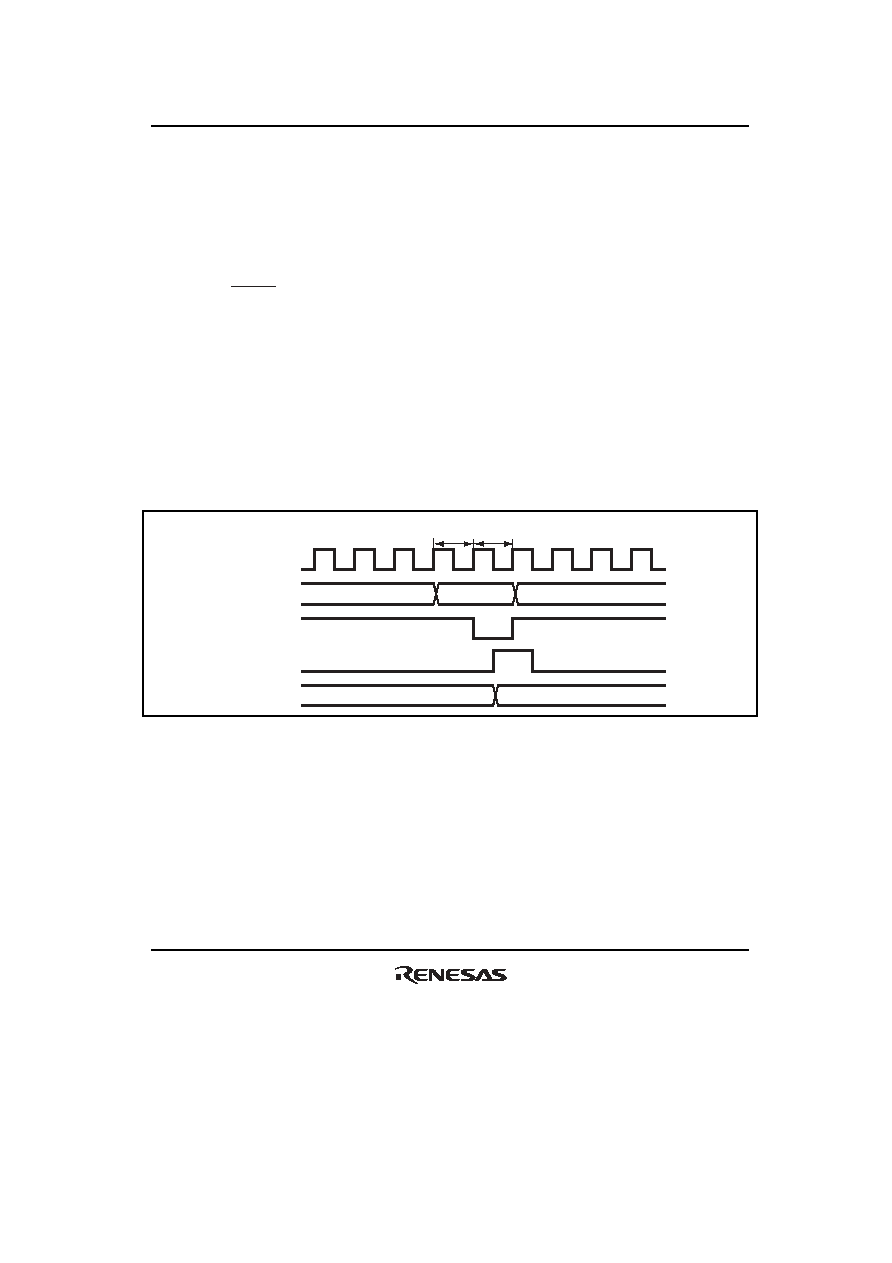

background image
Section 10 16-Bit Timer Pulse Unit (TPU)
Rev.1.00 Jun. 07, 2006 Page 575 of 1102
REJ09B0294-0100
10.10.3
Caution on Cycle Setting
When counter clearing by compare match is set, TCNT is cleared in the final state in which it
matches the TGR value (the point at which the count value matched by TCNT is updated).
Consequently, the actual counter frequency is given by the following formula:
f
=
P
φ
(N
+ 1)
f:
P
φ:
N:
Counter frequency
Operating frequency
TGR set value
10.10.4
Conflict between TCNT Write and Clear Operations
If the counter clearing signal is generated in the T2 state of a TCNT write cycle, TCNT clearing
takes precedence and the TCNT write is not performed. Figure 10.46 shows the timing in this
case.
Counter clear
signal
H'0000
P
φ
TCNT
N
Address
Write
T
1
T
2
TCNT address
TCNT write cycle
Figure 10.46 Conflict between TCNT Write and Clear Operations
