STTH310/S

5/5

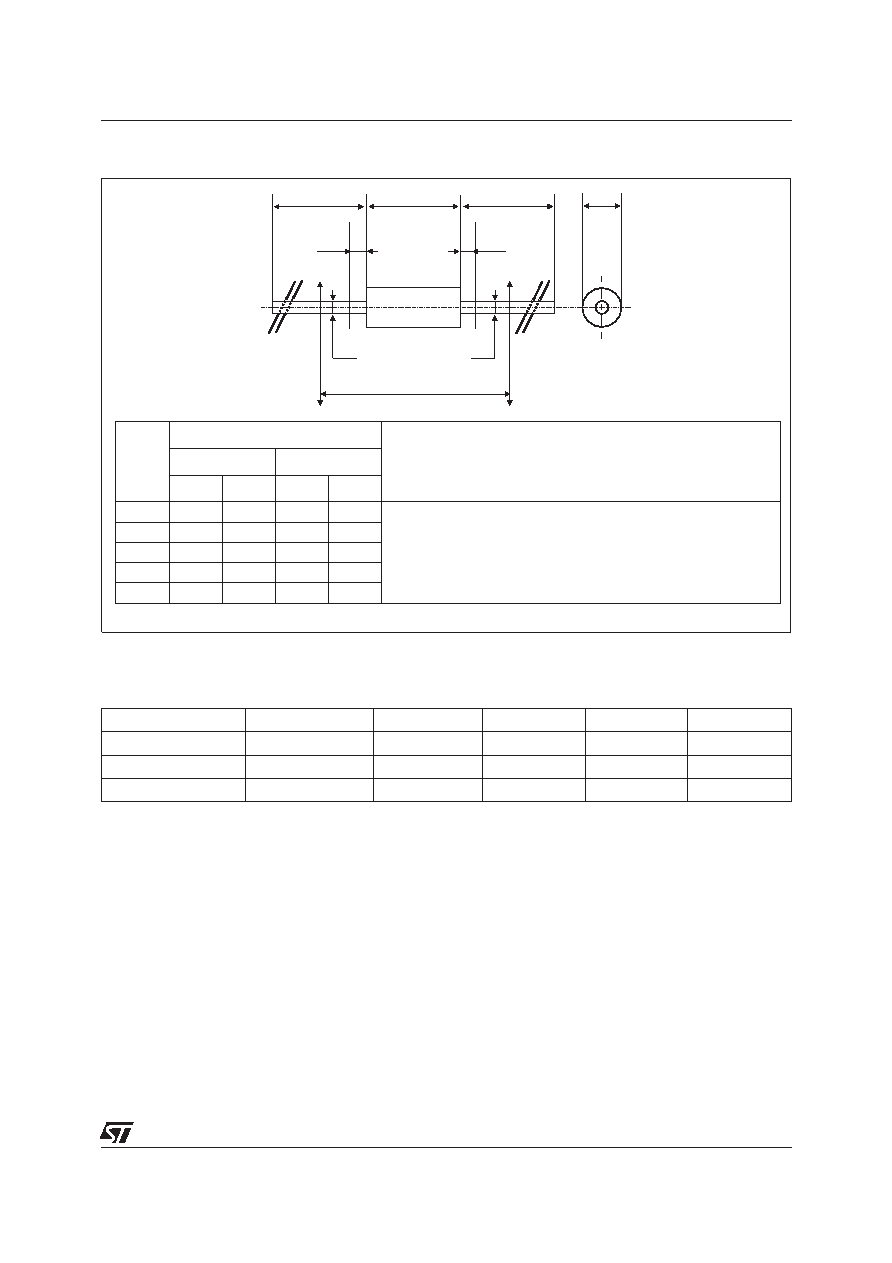

PACKAGE MECHANICAL DATA

DO-201AD

BA

E

E

ØD

ØD

ØC

B

note 2

note 1

note 1

REF.

DIMENSIONS

NOTES

Millimeters

Inches

Min.

Max.

Min.

Max.

A

9.50

0.374

1 - The lead diameter

∅ D is not controlled over zone E

2 - The minimum length which must stay straight between

the right angles after bending is 0.59"(15 mm)

B

25.40

1.000

C

5.30

0.209

D

1.30

0.051

E

1.25

0.049

Ordering code

Marking

Package

Weight

Base qty

Delivery mode

STTH310

STTH310

DO-201AD

1.12 g

600

Ammopack

STTH310S

S10

SMC

0.245 g

2500

Tape & reel

STTH310RL

STTH310

DO-201AD

1.12 g

1900

Tape & reel

s

Epoxy meets UL 94,V0
