VIPER17

Pin settings

5/33

Pin settings

3.1

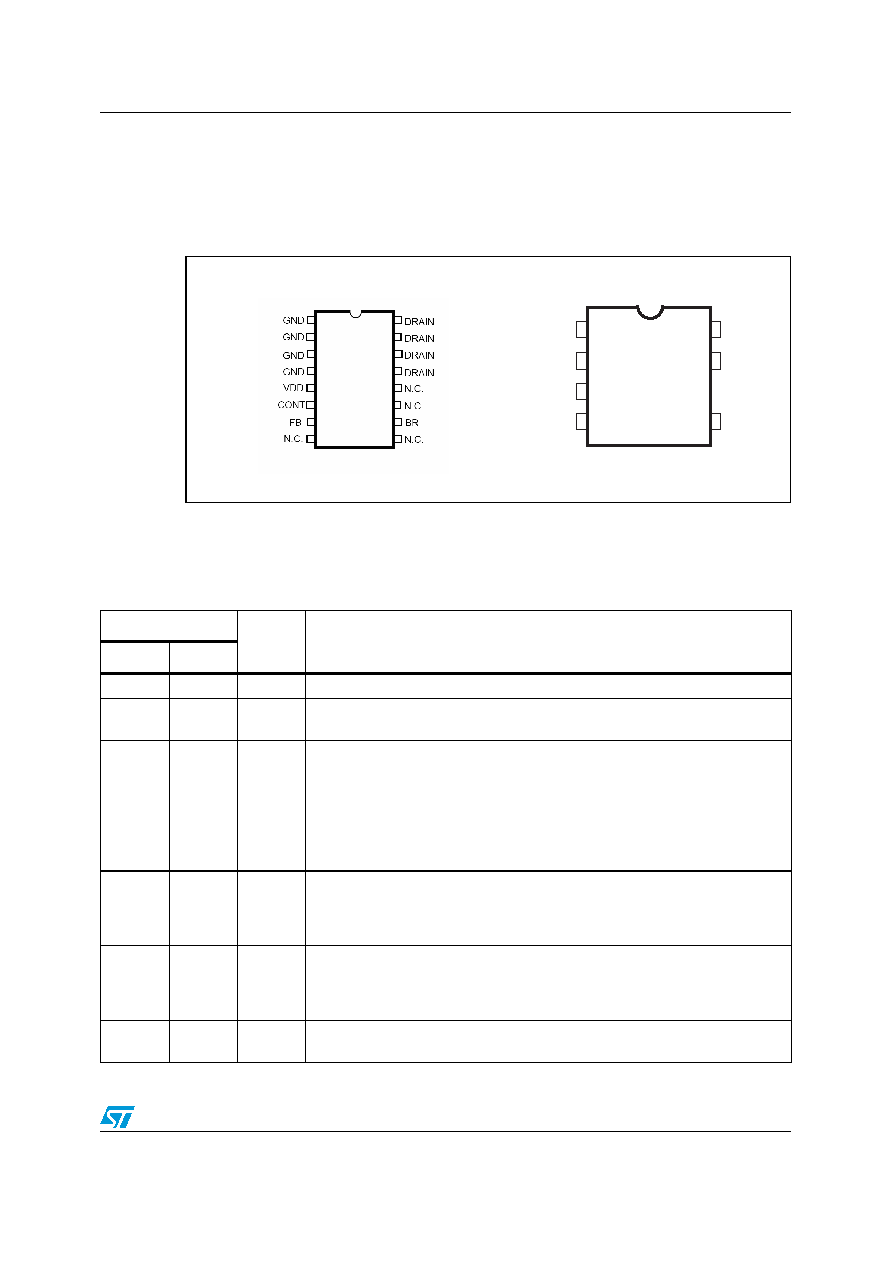

Connection diagram

Figure 3.

Connection diagram (top view)

3.2

Pin description

GND

CONT

VDD

DRAIN

Table 3.

Pin description

Pin N.

Name

Function

DIP-7

SO16

1...4

GND

This pin represents the device ground and the source of the power section.

VDD

Supply voltage of the control section. This pin also provides the charging current

of the external capacitor during start-up time.

CONT

Control pin. The following functions can be selected:

1. current limit set point adjustment. The internal set default value of the cycle-

by-cycle current limit can be reduced by connecting to ground an external

resistor.

2. output voltage monitoring. A voltage exceeding 3 V shuts the IC down

reducing the device consumption. This function is strobed and digitally filtered for

high noise immunity.

Control input for duty cycle control. Internal current generator provides bias

current for loop regulation. A voltage below 0.5 V activates the burst-mode

operation. A level close to 3.3 V means that we are approaching the cycle-by-

cycle over-current set point.

510

Brownout protection input with hysteresis. A voltage below 0.45 V shuts down

(not latch) the device and lowers the power consumption. Device operation

restarts as the voltage exceeds 0.45 V plus hysteresis voltage. It can be

connected to ground when not used.

7,8

13...16

DRAIN

High voltage drain pin. The built-in high voltage switched start-up bias current is

drawn from this pin too.
