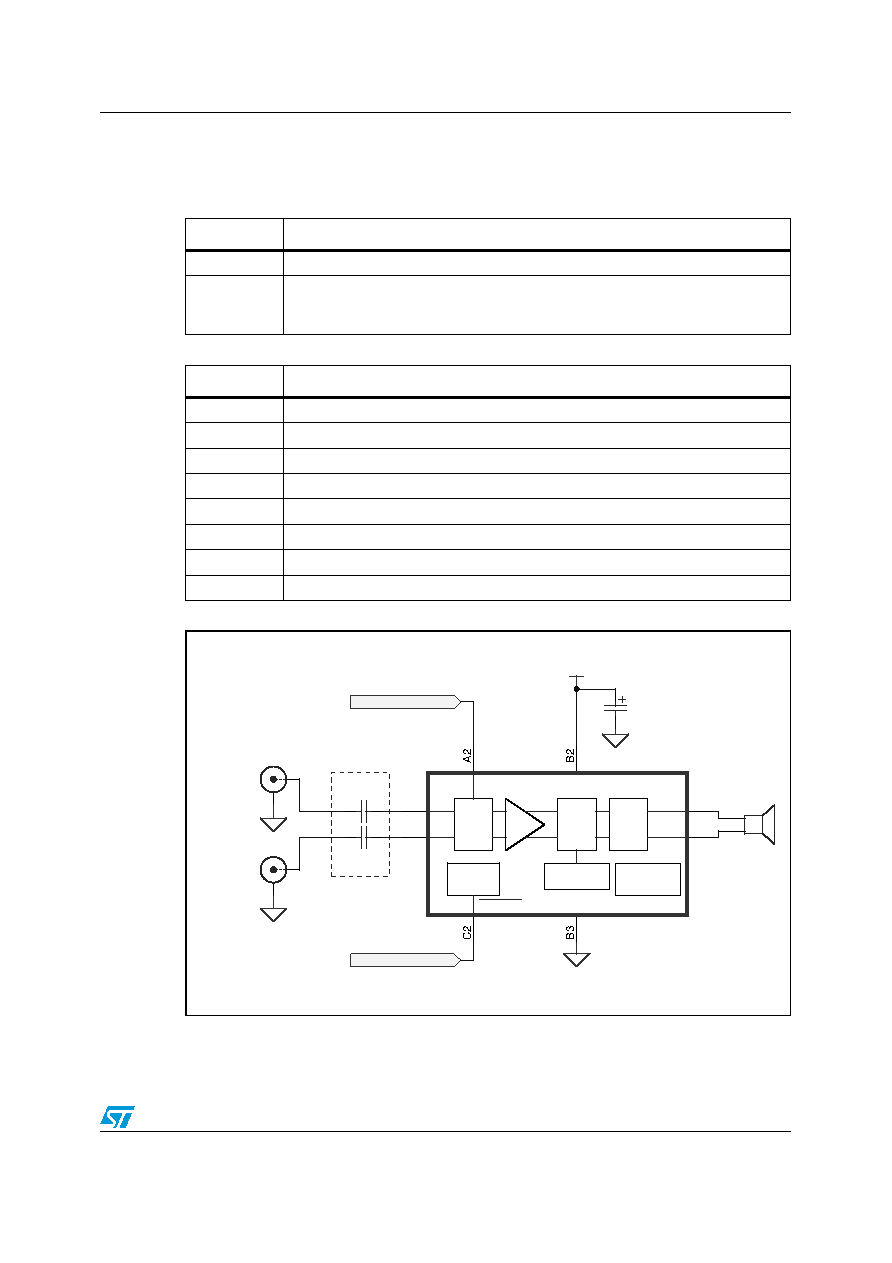

TS2007FC
Application information
5/28
2
Application information
See
Figure 1.
Typical application
Note:
See Section 4.10: Output filter considerations on page 23.
Table 3.
External component description
Components
Functional description
Cs
Supply capacitor that provides power supply filtering.
Cin
Input coupling capacitors (optional) that block the DC voltage at the amplifier input
terminal. These capacitors also form a high pass filter with
Zin (Fc = 1 / (2 x π x Zin x Cin)).
Table 4.
Pin description
Pin name
Pin description
IN+
Positive differential input
VCC
Power supply
IN-
Negative differential input
GS
Gain select input
STDBY
Standby pin (active low)
GND
Ground
OUT+
Positive differential output
OUT-
Negative differential output
VCC
Cin
Cin
In-
Speaker
Cs
1uF
TS2007
Input capacitors
are optional
In+
Differential
Input
Gain
Select
+
-
Standby
Control
A1
C1
A3
C3
PWM
H
Bridge
Oscillator
IN-
IN+
GS
Vcc
OUT+
OUT-
Standby
Gnd
Protection
Circuit
Gain select control
Standby control
