1 / 11 page

1/11

July 2004

s

5V TOLERANT INPUTS

s

HIGH SPEED: tPD = 4.1ns (MAX.) at VCC = 3V

s

POWER DOWN PROTECTION ON INPUTS

AND OUTPUTS

s

SYMMETRICAL OUTPUT IMPEDANCE:

|IOH| = IOL = 24mA (MIN) at VCC = 3V

s

PCI BUS LEVELS GUARANTEED AT 24 mA

s

BALANCED PROPAGATION DELAYS:

tPLH ≅ tPHL

s

OPERATING VOLTAGE RANGE:

VCC(OPR) = 1.65V to 3.6V (1.2V Data

Retention)

s

PIN AND FUNCTION COMPATIBLE WITH

74 SERIES 08

s

LATCH-UP PERFORMANCE EXCEEDS

500mA (JESD 17)

s

ESD PERFORMANCE:

HBM > 2000V (MIL STD 883 method 3015);

MM > 200V

DESCRIPTION

The 74LVC08A is a low voltage CMOS QUAD

2-INPUT AND GATE fabricated with sub-micron

silicon gate and double-layer metal wiring C2MOS

technology. It is ideal for 1.65 to 3.6 VCC

operations

and

low

power

and

low

noise

applications.

It can be interfaced to 5V signal environment for

inputs in mixed 3.3/5V system.

It has more speed performance at 3.3V than 5V

AC/ACT family, combined with a lower power

consumption.

All

inputs

and

outputs

are

equipped

with

protection circuits against static discharge, giving

them 2KV ESD immunity and transient excess

voltage.

74LVC08A

LOW VOLTAGE CMOS QUAD 2-INPUT AND GATE

HIGH PERFORMANCE

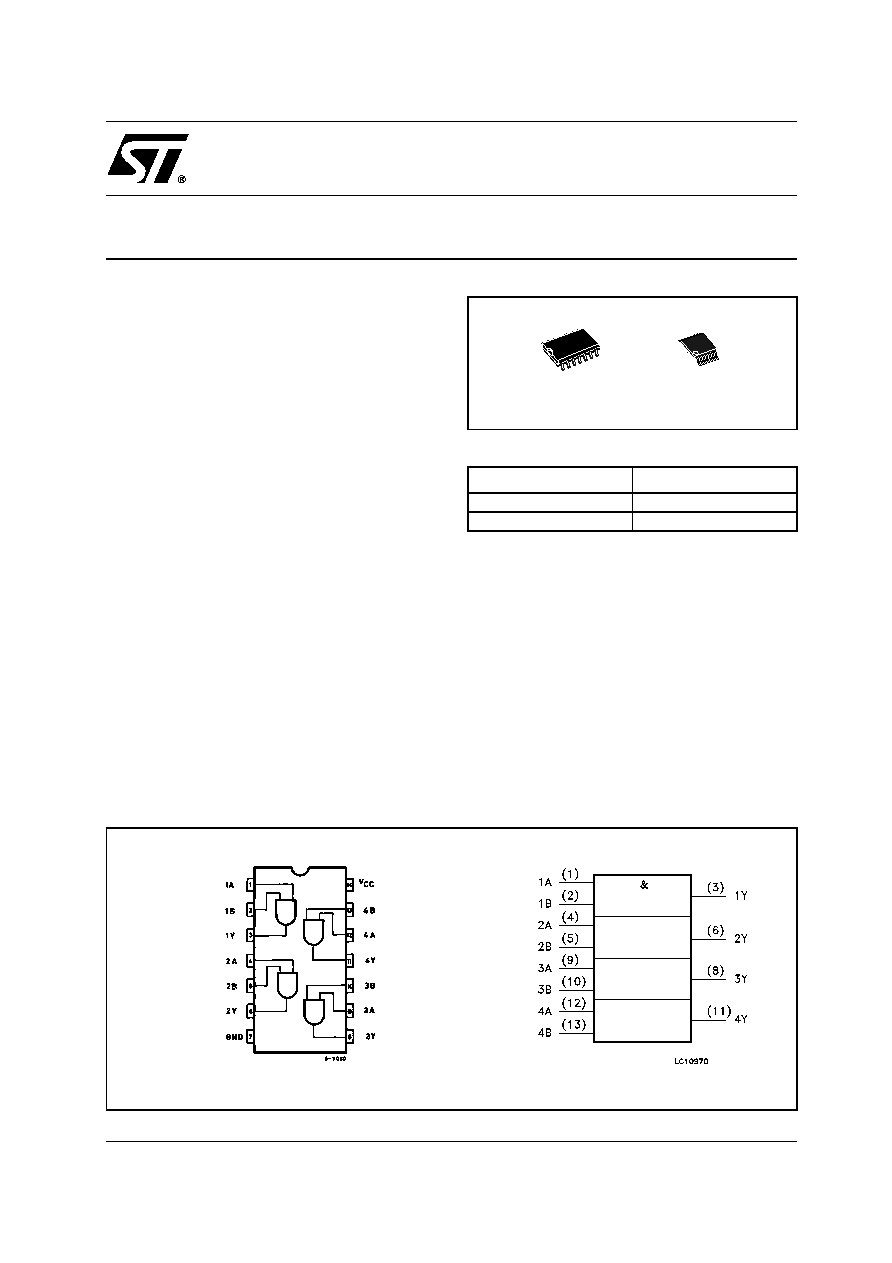

Figure 1: Pin Connection And IEC Logic Symbols

Table 1: Order Codes

PACKAGE

T & R

SOP

74LVC08AMTR

TSSOP

74LVC08ATTR

TSSOP

SOP

Rev. 4
