Rev. B - November 10, 2000

Preliminary

T80C5112

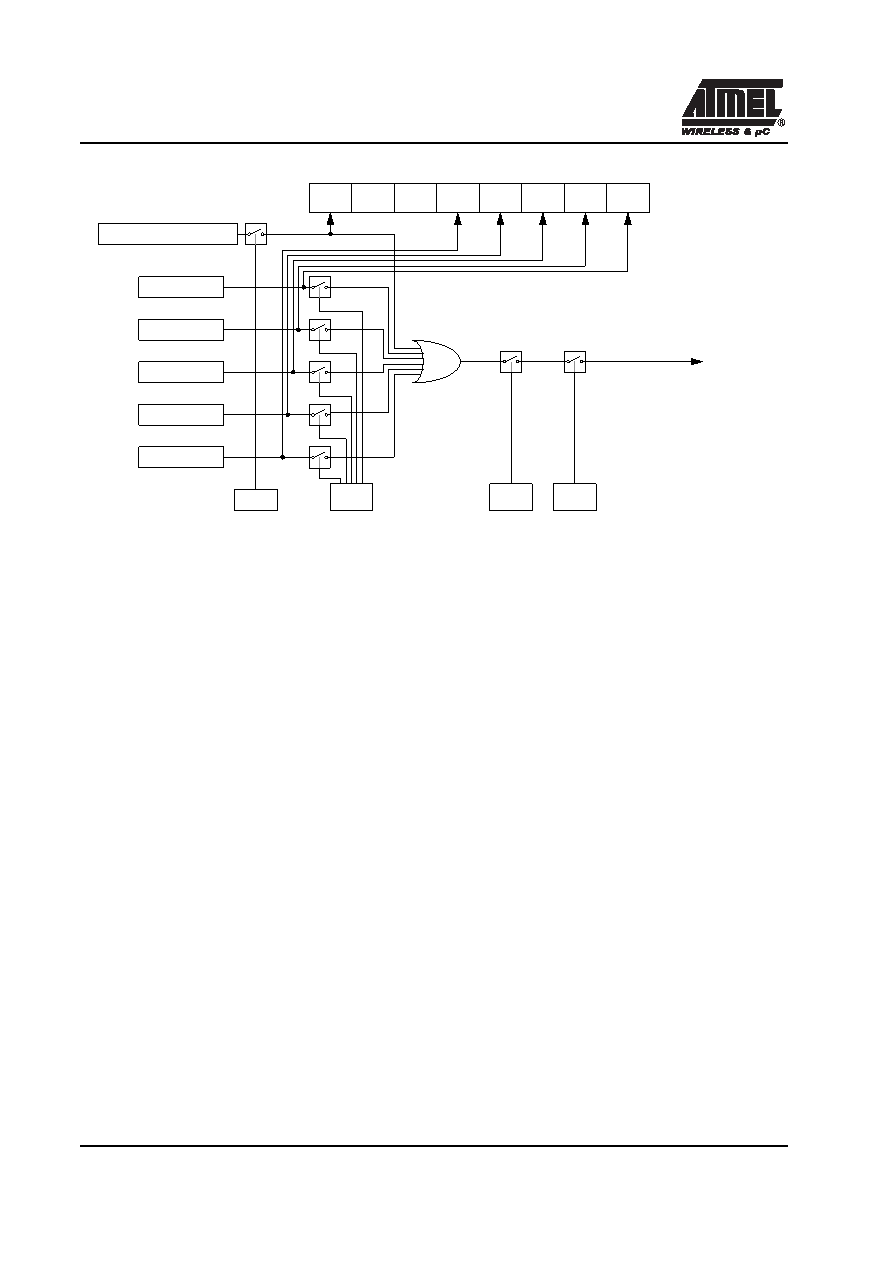

Figure 23. PCA Interrupt System

PCA Modules: each one of the five compare/capture modules has six possible functions. It can perform:

16-bit Capture, positive-edge triggered,

16-bit Capture, negative-edge triggered,

16-bit Capture, both positive and negative-edge triggered,

16-bit Software Timer,

16-bit High Speed Output,

8-bit Pulse Width Modulator.

In addition, module 4 can be used as a Watchdog Timer.

Each module in the PCA has a special function register associated with it. These registers are: CCAPM0 for module

0, CCAPM1 for module 1, etc. (See Table 28). The registers contain the bits that control the mode that each

module will operate in.

· The ECCF bit (CCAPMn.0 where n=0, 1, 2, 3, or 4 depending on the module) enables the CCF flag in the

CCON SFR to generate an interrupt when a match or compare occurs in the associated module.

· PWM (CCAPMn.1) enables the pulse width modulation mode.

· The TOG bit (CCAPMn.2) when set causes the CEX output associated with the module to toggle when there

is a match between the PCA counter and the module's capture/compare register.

· The match bit MAT (CCAPMn.3) when set will cause the CCFn bit in the CCON register to be set when there

is a match between the PCA counter and the module's capture/compare register.

· The next two bits CAPN (CCAPMn.4) and CAPP (CCAPMn.5) determine the edge that a capture input will

be active on. The CAPN bit enables the negative edge, and the CAPP bit enables the positive edge. If both

bits are set both edges will be enabled and a capture will occur for either transition.

· The last bit in the register ECOM (CCAPMn.6) when set enables the comparator function.

Table 29 shows the CCAPMn settings for the various PCA functions.

CCON

0xD8

CCF4

CCF3

CCF2

CCF1

CCF0

Module 4

Module 3

Module 2

Module 1

Module 0

ECF

PCA Timer/Counter

ECCFn CCAPMn.0

CMOD.0

IE.6

IE.7

To Interrupt

priority decoder
