1 / 24 page

1/24

September 2001

s WIDE TRANSMIT AND RECEIVE DYNAMIC

RANGE

TO

REDUCE

EXTERNAL

FILTERING REQUIREMENTS

s RECEIVE PROGRAMMABLE GAIN: 0 TO

31dB GAIN IN 1dB STEPS

s RECEIVE PROGRAMMABLE ATTENUATOR

0,-4dB, -8dB, -12dB

s 12-BIT A/D CONVERTER IN RECEIVE PATH

s TRANSMIT PROGRAMMABLE GAIN: 0 TO

-15dB IN 1dB STEPS

s 14-BIT D/A CONVERTER IN TRANSMIT PATH

s LOW POWER MODE: 10mW IN LISTENING

MODE, 250

µW IN POWER DOWN

s TONE DETECTOR: ACTIVITY DETECTION

FOR WAKE-UP FUNCTION

s 64-PIN TQFP PACKAGE

s 64-PIN LFBGA PACKAGE

s 0.50

µm, 5V BICMOS TECHNOLOGY

s 3.3V DIGITAL INTERFACE

s 5V ANALOG INTERFACE

INTRODUCTION

The ST70136 ADSL Analog Front End (AFE) chip

implements

the

analog transceiver functions

required in a Customer Premise ADSL modem. It

connects the digital modem chip with the loop

driver and hybrid balance circuits.

The AFE has been designed with high dynamic

range in order to greatly reduce the external filter-

ing requirements at the front end.

The AFE chip and its companion digital chip along

with a loop driver, implement the complete

G.992.2 and G.992.1 DMT modem solution.

The AFE receive path contains a programmable

gain amplifier (RxPGA), a low pass anti-aliasing

filter, and a 12-bit A/D converter. The RxPGA is

digitally programmable from 0 to 31dB in 1dB

steps.

The AFE transmit path consists of a 14-bit D/A

converter, followed by a programmable gain

amplifier (TxPGA). The transmit gain is program-

mable from 0 to -15dB in 1dB steps.

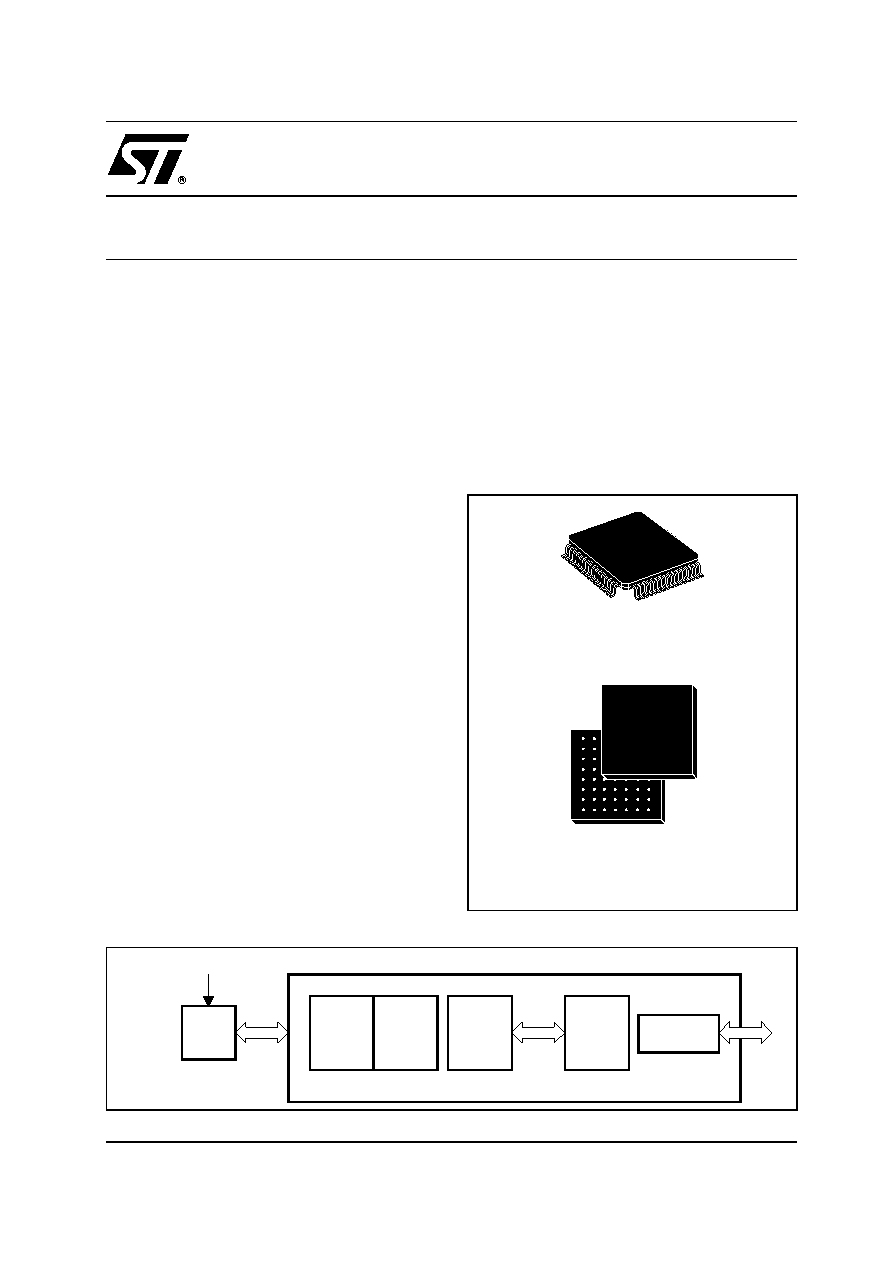

TQFP64 Full Plastic

(10 x 10 x 1.40 mm)

ORDER CODE: ST70136B

LFBGA64

(8 x 8 x 1.7 mm)

ORDER CODE: ST70136G

Figure 1 : Overall Application Block Diagram

Software for Control xDSL

PC

PCI

or

USB

PCI

or

USB

DMT

xDSL

AFE

ST70137

ST70136

LOOP

DRIVER

TS612/TS652

LINE

HYBRID

ST70136

CPE ADSL ANALOG FRONT END
