9 / 33 page

output shifts data out from the voice data register

on the rising edges of MCLK. Serial voice data is

shifted into DR input during the same time slot on

the falling edges of MCLK.

DX is in the high impedance Tristate condition

when in the non selected time slots.

Control Interface:

Control information or data is written into or read-

back from PIAFE via the serial control port con-

sisting of control clock CCLK, serial data input CI

and output CO, and Chip Select input, CS-. All

control instructions require 2 bytes as listed in Ta-

ble 1, with the exception of a single byte power-

up/down command.

To shift control data into ST5088, CCLK must be

pulsed high 8 times while CS- is low. Data on CI

input is shifted into the serial input register on the

rising edge of each CCLK pulse. After all data is

shifted in, the content of the input shift register is

decoded, and may indicate that a 2nd byte of

control data will follow. This second byte may

either be defined by a second byte-wide CS-

pulse or may follow the first contiguously, i.e. it is

not mandatory for CS- to return high in between

the first and second control bytes. At the end of

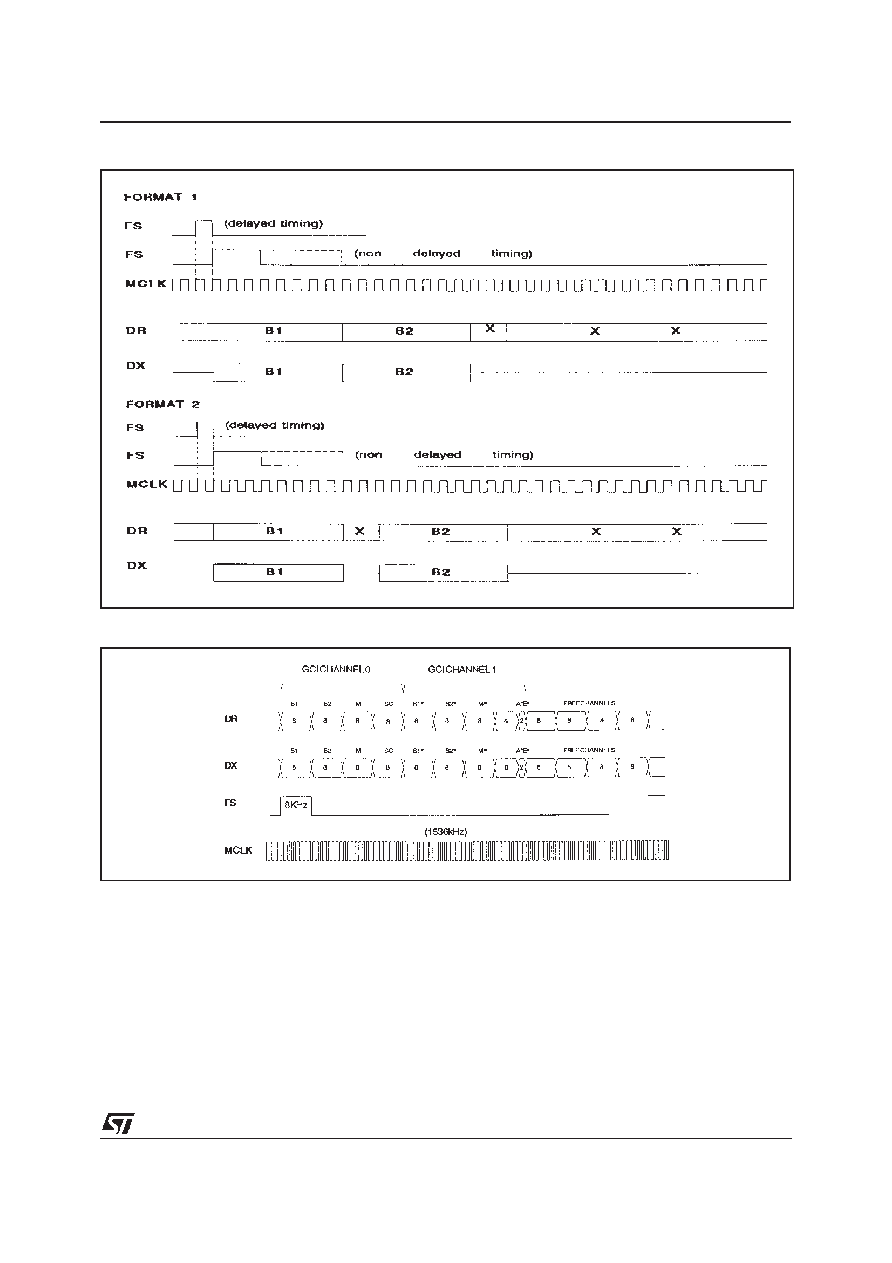

Figure 2: GCI Interface Frame Structure

Figure 1: Digital Interface Format

ST5088

9/33
