ST19RF08

2/2

HARDWARE DESCRIPTION

The ST19RF08, a member of the ST19 device

family, is a serial access microcontroller especially

designed for very large volume and cost competi-

tive secure portable objects.

The ST19RF08 is based on a STMicroelectronics

8 bit CPU core including on-chip memories: 960

Bytes of RAM, 32 K Bytes of USER ROM and 8 K

Bytes of EEPROM.

RAM, ROM and EEPROM memories can be con-

figured into partitions. Access rules from any

memory partition to another partition are setup by

the user defined Memory Access Control Logic.

It is manufactured using the highly reliable ST sub-

micron technology.

As all other ST19 family members, it is fully com-

patible with the ISO standards for Smartcard appli-

cations:

– ISO7816 for contact operation,

– ISO14443 for contactless operation.

SOFTWARE DEVELOPMENT DESCRIPTION

Software development and firmware (ROM code/

options) generation are completed by the ST16-19

HDSE development system.

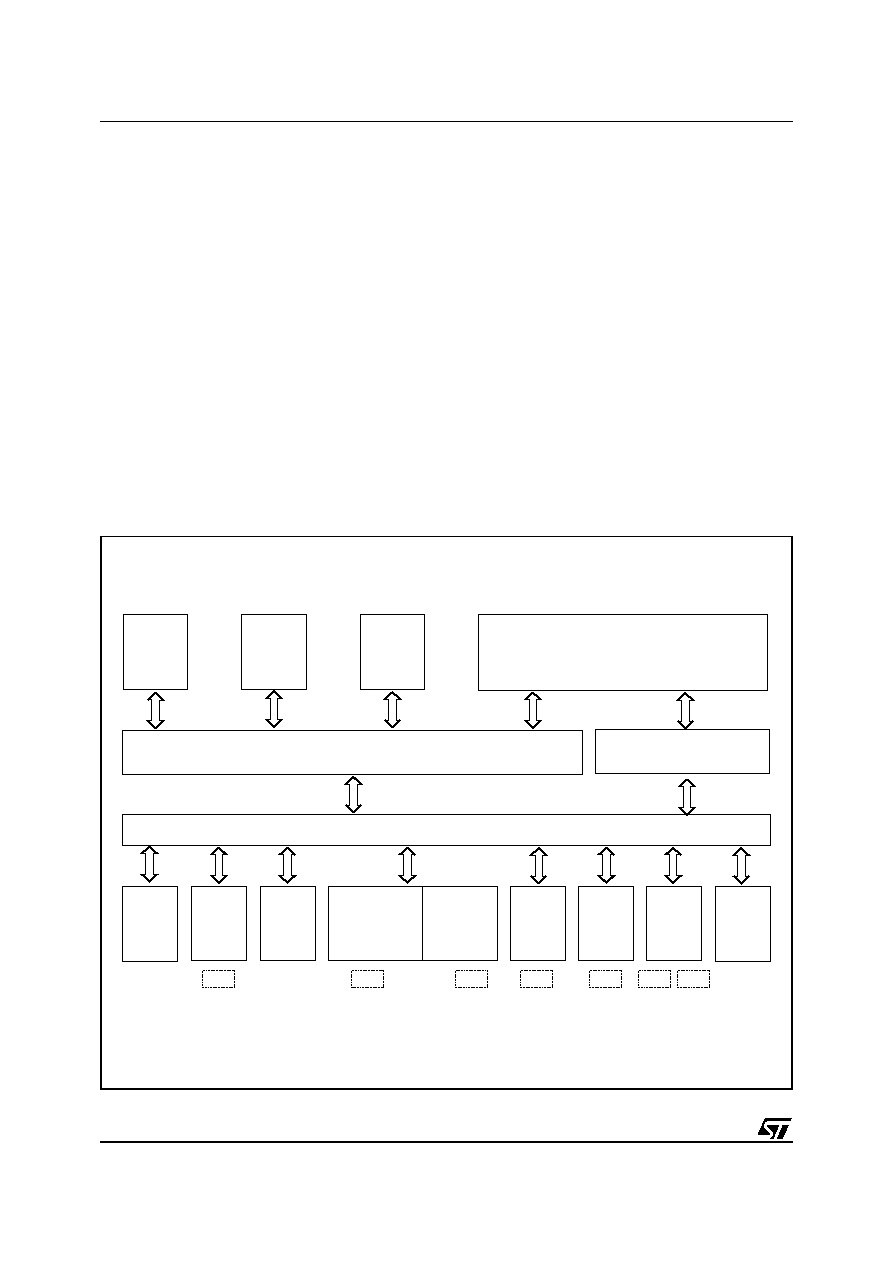

Figure 1 Block Diagram

SCP 101c/DS

INTERNAL BUS

RESET

EEPROM

MEMORY ACCESS FIREWALL

CLK

I/O

GND

Vcc

SYSTEM ROM

SECURITY

ADMINISTRATOR

USER

ROM

CLOCK

GENERA-

TOR

MODULE

8 BIT

TIMER

UNPRE-

DICTABLE

NUMBER

GENERATOR

8 BIT

CPU

SERIAL

I/O

INTER-

FACE

SYSTEM ROM

FIREWALL

INTER-

FACE

AC1

AC0

HARDW.

CRC

CALCU-

LATOR

HARDW.

DES

ACCEL-

ERATOR

RAM

960

Bytes

8 K

Bytes

32 K

Bytes
