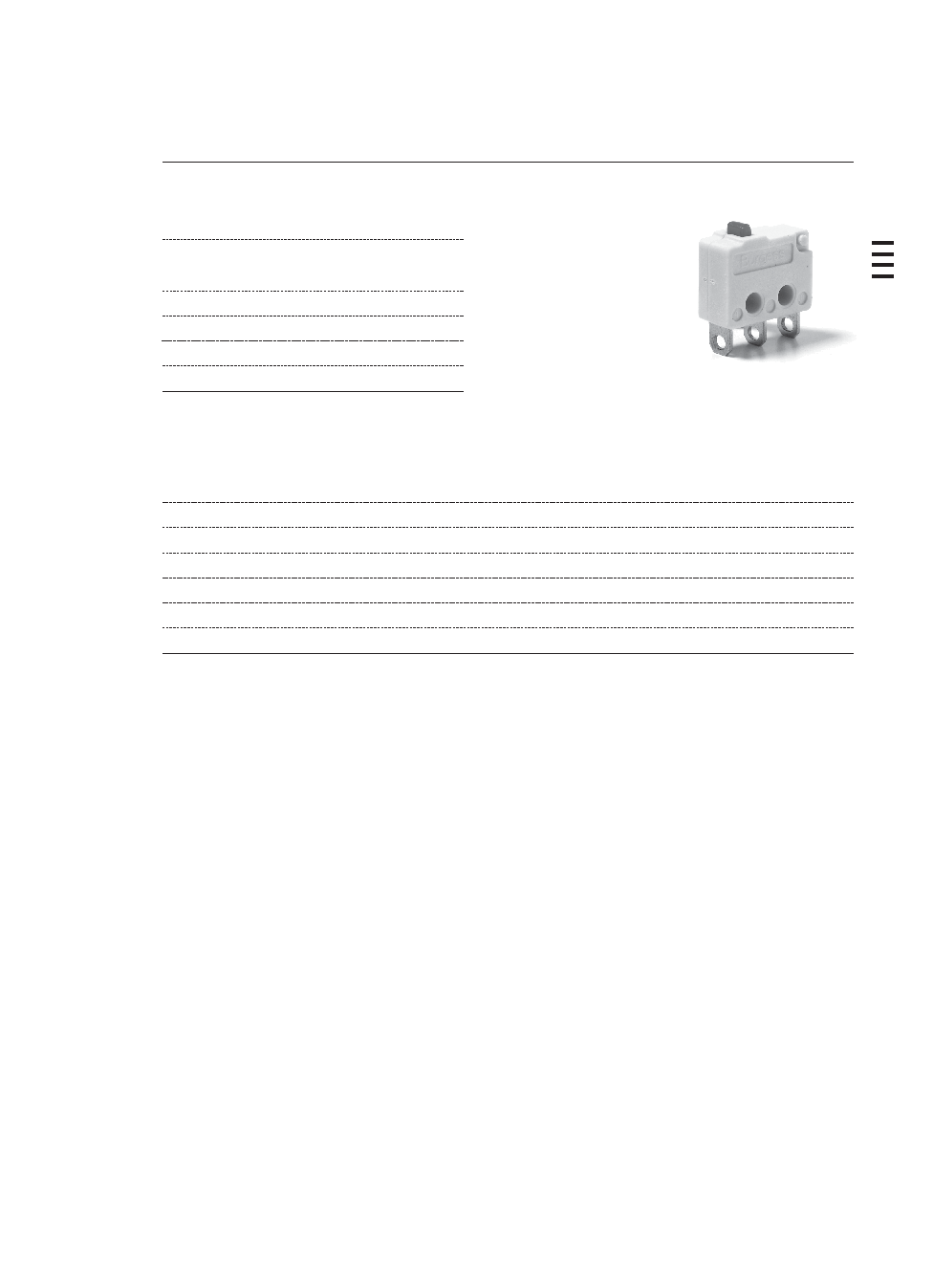

Snap-action Microswitches

Ultraminiature

F4

Characteristics

High electrical rating from a very small switch

Long mechanical and electrical life

Gold-plated contact option

Rating

Up to 250 VAC, 5 A

Dimensions (mm)

12.8

i 10 i 5

Actuator

Plunger, plain lever, simulated roller (cam follower) lever

Approvals

UL and CSA

Preferred Range

Ordering Reference Actuating Force

Sealing

Operating pos.

Terminal

Circuit

Actuator

Contacts

Electrical rating

(N)

(ozf)

(mm)

(in)

F4T7UL 1.4

5.00

IP40

8.1

0.32

Solder

CO

Plunger

Silver

Up to 250 VAC, 5 A

F4T7GPUL 1.4

5.00

IP40

8.1

0.32

Solder

CO

Plunger

Gold plate

Up to 250 VAC, 5 A

F4T7Y1UL 0.6

2.20

IP40

8.2

0.32

Solder

CO

Plain lever

Silver

Up to 250 VAC, 5 A

F4T7Y1GPUL 0.6

2.20

IP40

8.2

0.32

Solder

CO

Plain lever

Gold plate

Up to 250 VAC, 5 A

F4T7YCUL 0.7

2.50

IP40

10.3

0.41

Solder

CO

Simulated roller

Silver

Up to 250 VAC, 5 A

F4T7YCGPUL 0.7

2.50

IP40

10.3

0.41

Solder

CO

Simulated roller

Gold plate

Up to 250 VAC, 5 A
