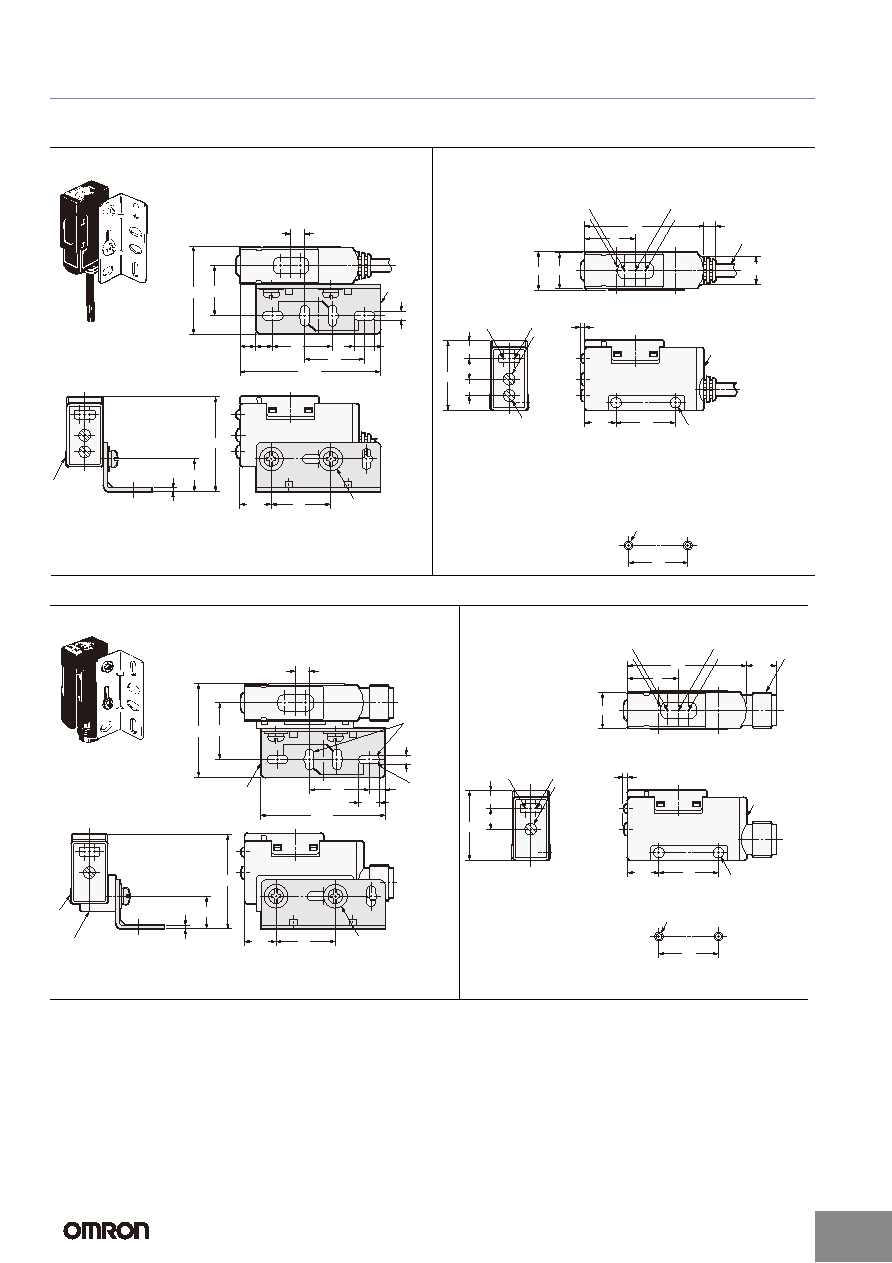

E3S-A

Retro-reflective Sensors (Vertical)

Pre-wired Sensors

Sensors with Connectors

10.5

31.5

1.2 10.7

3.1

47.2

5.5 5.4

7.2

16.9

28.9

4.8

With Mounting Bracket Attached

Stainless

steel

(SUS304)

*The Mounting Bracket can be attached to side A.

Optical axis

Optical

axis

Two, M3

× 12 screws

E3S-AR61/71/81/91

(4) *2

8.8 dia.

12.4

1.3

10.5

5.5

5.9

23.3

Emitter

Receiver

*1. Available on E3S-AR71 and E3S-AR91 only.

*2. 9.7 mm for E3S-AR71 and E3S-AR91.

*3. The E3S-AR611 or E3S-AR81 has three conductors.

Lens (5.7

× 10.9)

Optical axis

Two, M3

× 12 screws

Stability indicator

(green)

Light indicator

(red)

Operation mode

selector switch

Two, M3 holes

4-dia. vinyl-insulated

round cable

with 5 conductors

(Conductor cross

section: 0.2 mm2,

Insulator diameter:

1.1 mm),

Standard length:

2 m *3

Sensitivity

adjuster

(white)

Timer adjuster/

Turbo switch (black) *1

Turn to adjust the timer:

push to switch turbo function

Mounting Holes

Four

mounting

holes

10.5

31.5

1.2 10.7

3.1

41.7

5.4

7.2

19.4

31.4

4.8

Use these

two holes

for

mounting.

Stainless steel

(SUS304)

*The Mounting Bracket can be attached to side A.

Optical axis

Optical

axis

Two, M3

× 12 screws

E39-L60 Close Mounting Plate (provided)

(Attach the mounting plate or the

plug cannot be connected.)

With Mounting Bracket Attached

E3S-AR66/86

M12

Connector

(10)

1.3

10.5

5.9

23.3

Stability indicator

(green)

Mounting Holes

Emitter

Receiver

Lens (5.7

× 10.9)

Optical axis

Two,

× 12 screws

Light indicator (red)

Operation

mode

selector switch

Two, M3 holes

Sensitivity

adjuster

(white)
