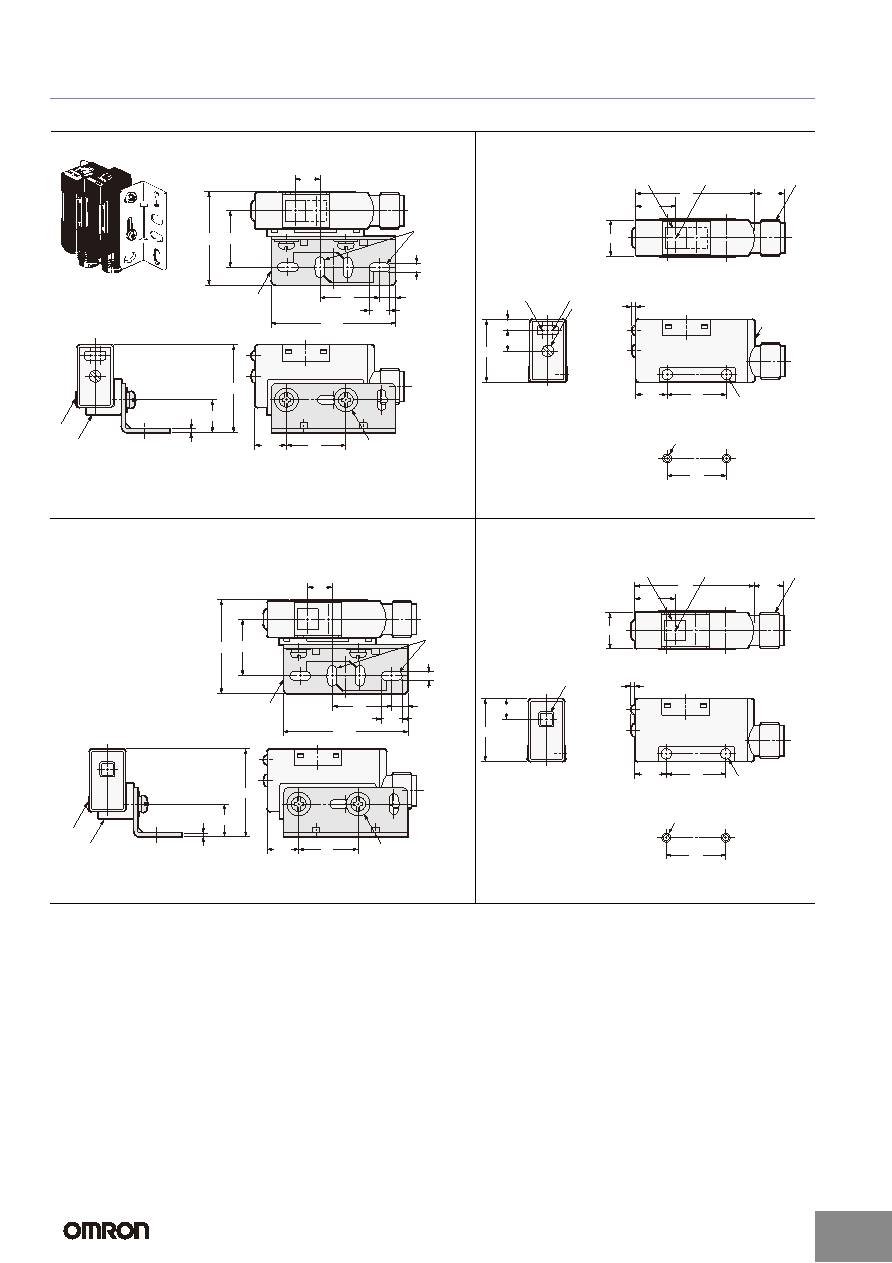

E3S-A

Connector Sensors

3.1

41.7

5.4

7.2

19.4

31.4

Use these

two holes

for

mounting.

29.2

1.2 10.7

10.5

8.3

Stainless steel

(SUS304)

*The Mounting Bracket can be attached to side A.

Optical axis

Optical

axis

Two, M3

× 12 screws

E39-L60 Close Mounting Plate (provided)

(Attach the mounting plate or the

plug cannot be connected.)

With Mounting Bracket Attached

E3S-AT66/86 (Receiver)

M12

Connector

13.5

(10)

1.3

10.5

Operation

mode

selector

switch

3.6

Two, M3 holes

Two, M3 × 12 screws

Lens (7

× 7)

Optical axis

LIght indicator (red)

Stability

indicator

(green)

Sensitivity

adjuster

(white)

Mounting Holes

29.2

1.2 10.7

10.5

3.1

41.7

5.4

7.2

19.4

31.4

8.3

Use these

two holes

for

mounting.

Stainless steel

(SUS304)

*The Mounting Bracket can be attached to side A.

Optical axis

Optical

axis

Two, M3

× 12 screws

E39-L60 Close Mounting Plate (provided)

(Attach the mounting plate or the

plug cannot be connected.)

With Mounting Bracket Attached

E3S-AT66/86 (Emitter)

13.5

(10)

1.3

10.5

8.5

M12 Connector

Two, M3

× 12 screws

Two, M3 holes

Lens (7

× 7)

Optical axis

Power indicator (red)

Mounting Holes
