MAKING THE RIGHT CONNECTIONS

T: +44 (0)1933 234400 F: +44 (0)1933 234411 E: sales@hylec-apl.com W: www.hylec-apl.com

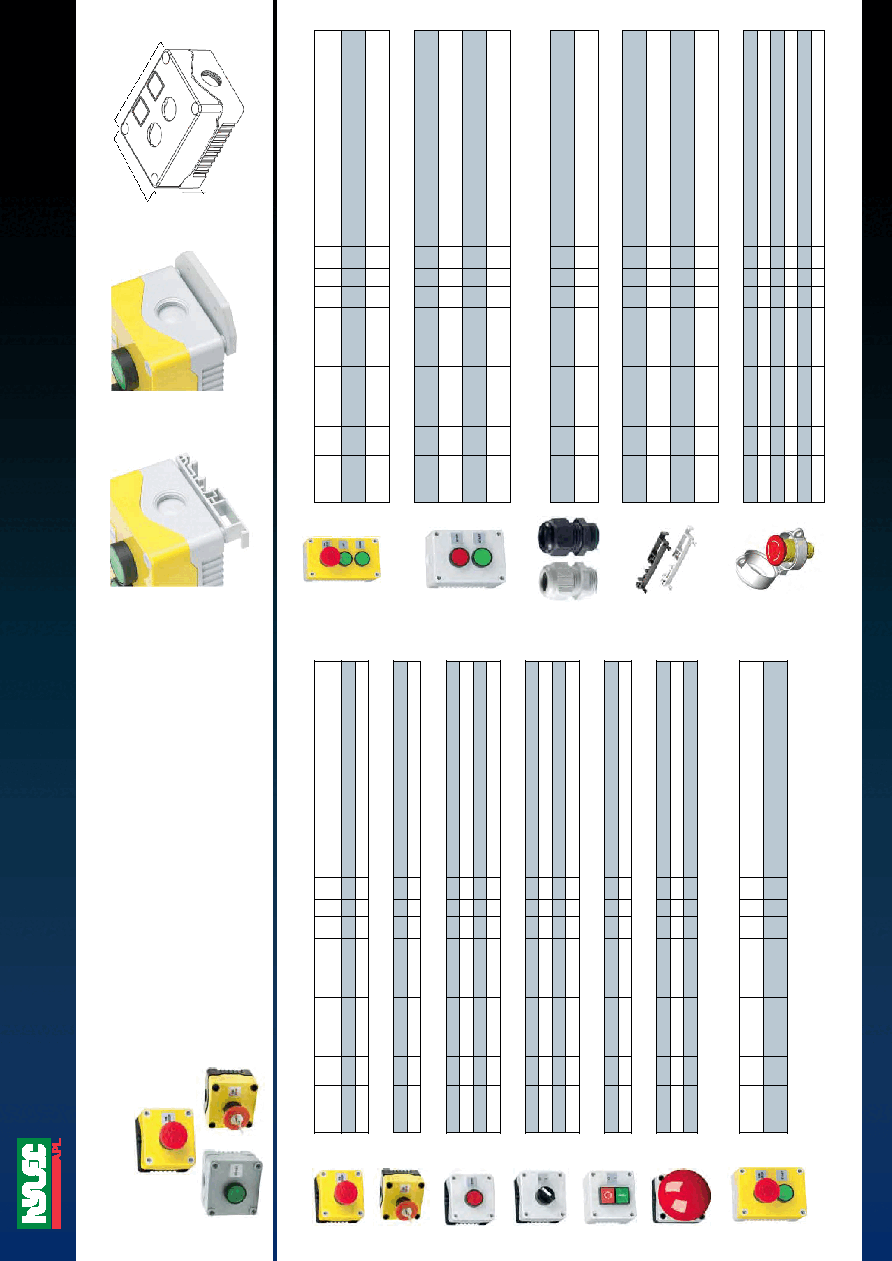

Control Stations & Enclosures

Control Stations

Features:

• Insulation resistance - >100MOhm @ 500VDC

• Enclosures sealed upto IP66

• Unique snap on Din Rail and Flange brackets

• Dust & waterproof for short-term submersion

• 4 sizes avaliable! Accepting 1-4 push

button switches

• 2 contact blocks fitted as standard

• Different voltage ratings are availiable

• Contact material - Silver Bifurcated and serrated

• Operating Temperature -10 to +65degC

• Contact rating - AC12 Resistive / AC15

Electromagnetic - 240V (3A) / 415V (1.5A)

• Mechanical life - 1 million operations

Single Control Stations

2 Switch Control Stations

Accessories

Product

Code

Rating

Colour

(Cover / Base)

Material

(mm)

Description

1DE.01.01AG IP56

Yellow / Grey

ABS-UL94-HB

73 53*

Emergency Stop’ EN418 fail safe, twist to release

1DE.01.01AB

IP56

Yellow / Black

ABS-UL94-HB

73 53*

Emergency Stop’ EN418 fail safe, twist to release

1DE.01.03AG IP56

Yellow / Grey

ABS-UL94-HB

73 53*

Emergency Stop' EN418 fail safe, key release

1DE.01.03AB

IP56

Yellow / Black

ABS-UL94-HB

73 53*

Emergency Stop' EN418 fail safe, key release

75.024 mm

IP66

Grey / Black

ABS-UL94-HB

73 53*

Single 'Stop' push button, Red actuator

1DE.01.04AG IP66

Grey / Grey

ABS-UL94-HB

73 53*

Single 'Stop' push button, Red actuator

1DE.01.06AB

IP66

Grey / Black

ABS-UL94-HB

73 53*

Single 'Start' push button, Green actuator

1DE.01.06AG IP66

Grey / Grey

ABS-UL94-HB

73 53*

Single 'Start' push button, Green actuator

1DE.01.08AB

IP56

Grey / Black

ABS-UL94-HB

73 53*

2-Position Selector Switch

1DE.01.08AG IP56

Grey / Grey

ABS-UL94-HB

73 53*

2-Position Selector Switch

1DE.01.09AB

IP56

Grey / Black

ABS-UL94-HB

73 53*

2-Position Key Switch

1DE.01.09AG IP56

Grey / Grey

ABS-UL94-HB

73 53*

2-Position Key Switch

1DE.01.10AB

IP56

Grey / Black

ABS-UL94-HB

73 53*

Double push button - Stop / Start (O/I)

1DE.01.10AG IP56

Grey / Grey

ABS-UL94-HB

73 53*

Double push button - Stop / Start (O/I)

1DE.SP.21NR

IP66

Grey / Black

ABS-UL94-HB

85 102**

Palm / Foot push button Red button

1DE.SP.21NG

IP66

Grey / Black

ABS-UL94-HB

85 102**

Palm / Foot push button Green button

1DE.SP.21NB

IP66

Grey / Black

ABS-UL94-HB

85 102**

Palm / Foot push button Black button

Emergency Stop

Emergency Stop & 1 Push Button

Cable Glands

Mounting Brackets

Miscellaneous

Emergency Stop Key

Emergency Stop & 2 Push Buttons

Push Button

2 & 3 Push Buttons

Selector / Key Switch

Double Push Button

Palm / Foot Switch

*Enclosure dimensions **Including Actuator

1DE.02.01AG IP56

Grey / Grey

ABS-UL94-HB

80 106 53

Emergency Stop' EN418 fail safe, twist to release. Single 'Start' push

button, Green actuator.

1DE.02.01AB

IP56

Grey / Black

ABS-UL94-HB

80 106 53

Emergency Stop' EN418 fail safe, twist to release. Single 'Start' push

button, Green actuator.

Product

Code

Rating

Colour

(Cover / Base)

Material

(mm)

Description

1DE.03.01AG IP56

Grey / Grey

ABS-UL94-HB

80 139 53

Emergency Stop' EN418 fail safe, twist to release. Double 'Up /

Down' push buttons, Green actuators.

1DE.03.01AB

IP56

Grey / Black

ABS-UL94-HB

80 139 53

Emergency Stop' EN418 fail safe, twist to release. Double 'Up /

Down' push buttons, Green actuators.

1DE.02.02AG IP66

Grey / Grey

ABS-UL94-HB

80 106 53

Double push button - 'Start' push button, Green actuator & 'Stop'

push button, Red actuator.

1DE.02.02AB

IP66

Grey / Black

ABS-UL94-HB

80 106 53

Double push button - 'Start' push button, Green actuator & 'Stop'

push button, Red actuator.

1DE.03.02AG IP66

Grey / Grey

ABS-UL94-HB

80 106 53

Double push button - 'FWD / REV' push buttons, Green actuators &

'Stop' push button, Red actuator.

1DE.03.02AB

IP66

Grey / Black

ABS-UL94-HB

80 106 53

Double push button - 'FWD / REV' push buttons, Green actuators &

'Stop' push button, Red actuator.

DECGG

IP68

Grey

Polyamide 6

29.2 10 N/A

Grey Cable Gland POLY6 IP68, Fits All Sizes Of Enclosures, M20 X

1.5mm Thread Glands

DECGB

IP68

Black

Polyamide 6

29.2 10 N/A

Black Cable Gland POLY6 IP68, Fits All Sizes Of Enclosures, M20 X

1.5mm Thread Glands

DEDB

N/A

Black

PA66 UL94-V0

Flame Retardant

N/A N/A N/A

Snap-On Combi Foot DIN Rail Mounting Bracket In Black PA66 Fits

DE01-DE06

DEDG

N/A

Grey

PA66 UL94-V0

Flame Retardant

N/A N/A N/A

Snap-On Combi Foot DIN Rail Mounting Bracket In Grey PA66 Fits

DE01-DE06

DEFB

N/A

Black

PA66 UL94-V0

Flame Retardant

N/A N/A N/A

Snap-On Mounting Bracket In Black PA66 Fits DE01-DE06 2X M3

Fixing Holes

DEFG

N/A

Grey

PA66 UL94-V0

Flame Retardant

N/A N/A N/A

Snap-On Mounting Bracket In Grey PA66 Fits DE01-DE06 2X M3

Fixing Holes

DB22-H06L

IP65

Transparent

Polycarbonate

N/A N/A N/A

Transparent padlock cover

DPB22-D06

N/A

Transparent

Rubber

N/A N/A N/A

Transparent rubber boot for rectangular switch

DPPB-P06

N/A

Transparent

Rubber

N/A N/A N/A

Rubber cap for round push button

DPPB-02T

N/A

Grey

N/A N/A N/A

Fixing Nut Tool

DM0Y-O1

N/A

Yellow

N/A N/A N/A

Yellow Shroud with hole

DM01-OW

N/A

White

N/A N/A N/A

White Shroud with hole

Registered Design
