CA-RSPNMCN19 bảng dữ liệu(PDF) 1 Page - Infinite Electronics International, Inc.

tên linh kiện CA-RSPNMCN19
Giải thích chi tiết về linh kiện  CA, CA100 RP-SMA P/N-MALE
PDF  1 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
nhà sản xuất  L-COM [Infinite Electronics International, Inc.]
Trang chủ  https://www.l-com.com/
Logo L-COM - Infinite Electronics International, Inc.

CA-RSPNMCN19 bảng dữ liệu(HTML) 1 Page - Infinite Electronics International, Inc.

  CA-RSPNMCN19 Datasheet HTML 1Page - Infinite Electronics International, Inc.
Zoom Inzoom in Zoom Outzoom out
 1 / 1 page
background image

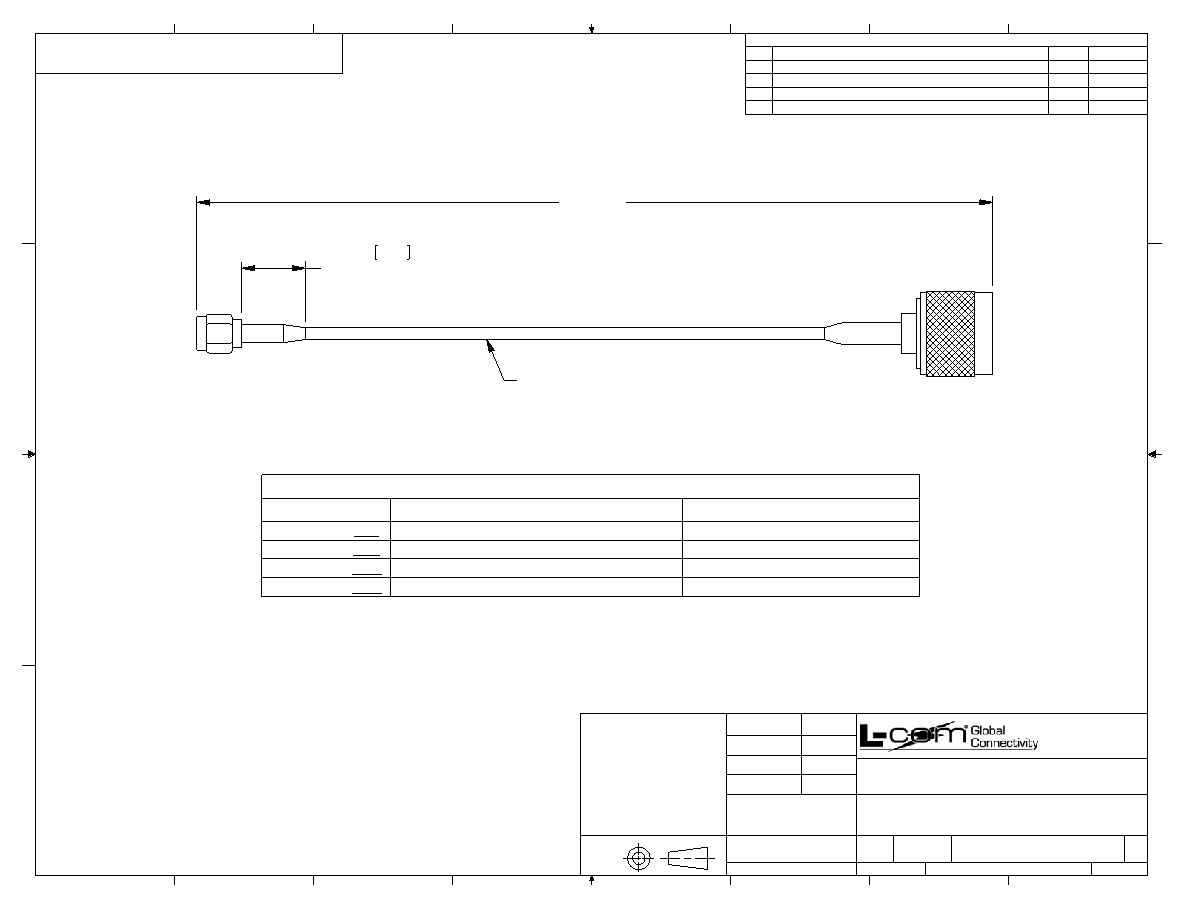

JACKET: PVC, BLACK
CONNECTOR
REVERSE POLARITY
SMA PLUG
100 SERIES, 50 OHM LOW-LOSS COAXIAL CABLE
TYPE N MALE
STRAIGHT CRIMP
CONNECTOR
LENGTH
2X, 1.0 25.4
HEAT SHRINK
PVC, BLACK
PROJECTION
REVISIONS
D.FRISIELLO
CA-RSPNMC
REV
NONE
B
2
ECN 4869: REVISE VIEW OF RP SMA JACK TO PLUG
6/28/10
D.FRISIELLO
CATEGORY
PRODUCT DESCRIPTION
DIMENSIONS ARE IN INCHES [mm]
CONFIGURATION DETAILS OF
01845
SCALE:
SIZE
CAD FILE:
DWG. NO.
A
SHEET
OF
REV.
DATE
APPROVALS
DRAWN BY
CHECKED BY
APPROVED BY
43321
PROPERTY OF L-COM, INC. ANY REPRODUCTION IN PART OR WHOLE
UNDIMENSIONED FEATURES
UNLESS OTHERWISE SPECIFIED,
6/21/10
A
B
C
D
45 BEECHWOOD DRIVE
WITHOUT THE WRITTEN PERMISSION OF L-COM, INC. IS PROHIBITED.
A
B
C
D
1
2
3
NORTH ANDOVER, MA
6
4
COLOR VARIATIONS
7
6/18/10
B
MAY OCCUR
CA-RSPNMC.SLDDRW
11
6/18/10
8
DESCRIPTION
K.BURGNER
K.BURGNER
6/18/10
CA, CA100 RP-SMA P/N-MALE
A
1
MAY VARY
3
4
5
6
7
8
5
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE
DATE
COAXIAL
D.GRIFFIN
FSCM NO.
INITIAL RELEASE
APPROVED
OVERALL CABLE LENGTH TOLERANCE:
≤12 [305] = +1 [25] / -0
>12 [305] ≤60 [1524] = +2 [51] / -0
>60 [1524] ≤120 [3048] = +4 [102] / -0
>120 [3048] ≤300 [7620] = +6 [152] / -0
>300 [7620] = +5% / -0%
ALL OTHER DIMENSIONAL TOLERANCES:
.X = ± .2
.XX = ± .02
.XXX = ±.005
RoHS Compliant 
CABLE ASSEMBLY SHALL BE INDIVIDUALLY PACKAGED IN
ACCORDANCE WITH L-COM SPECIFICATION PS-0031.
NOTES:
CABLE ASSEMBLY SHALL BE TESTED FOR CONTINUITY.
LENGTH CODE CHART
CABLE# & LENGTH
LENGTH SYMBOL
EXAMPLES OF PART# USED
CA-RSPNMCXXX
WHERE XXX = LENGTH IN FEET
CA-RSPNMC010 (10 FEET)
CA-RSPNMCNXX
WHERE NXX = LENGTH IN INCHES
CA-RSPNMCN16 (16 INCHES)
CA-RSPNMCMXX WHERE MXX = LENGTH IN METERS
CA-RSPNMCM07 (7 METERS)
CA-RSPNMCXMX WHERE XMX = LENGTH IN DECIMAL METERS
CA-RSPNMC3M5 (3.5 METERS)
