Page <1>

V1.1

12/07/23

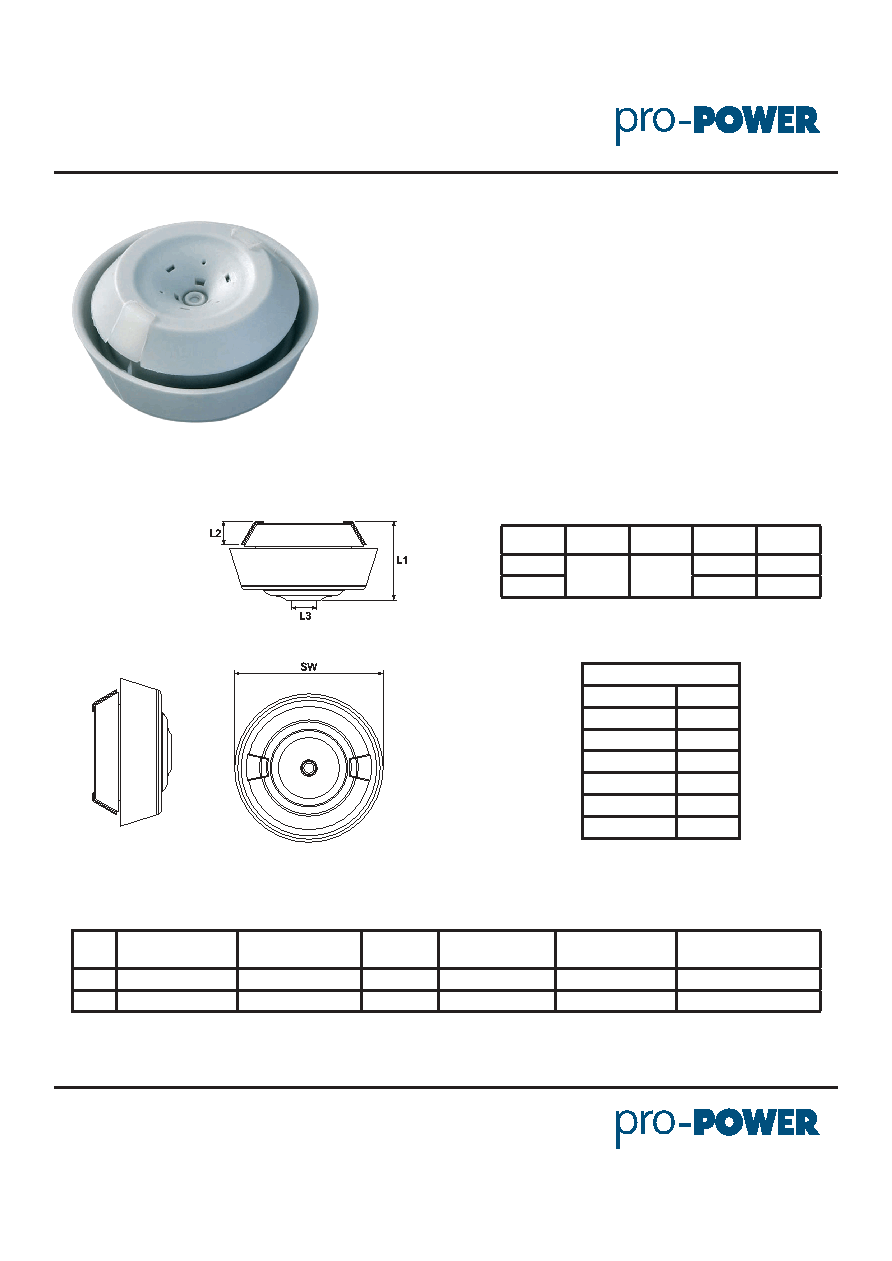

Gland Klikseal

Newark.com/exclusive-brands

Farnell.com/exclusive-brands

Element14.com/exclusive-brands

Features

•  Integrated tension relief, wide sealing range

•  Suitable for holes in materials of 1.5mm to 5mm thickness

•  Quick and simple assembly without the use of tools

•  Halogen-free

•  IP65 rated

Size For Cable / Pipe

Ø

Tension Relief

for cable Ø

Hole Size Wall Thickness

Wall Thickness

for IP67

Anchorage Type A

for Cable Ø

M20

4 to 11

6 to 11

20.5

1.5 to 5

2 to 5

7 to 11

M25

4 to 14

6 to 13

25.5

1.5 to 5

2 to 5

7 to 13*

* 8.1 to 8.9mm only approved for tension relief

Dimensions : Millimetres

Dimensions : Millimetres

Dimensions : Millimetres

Size

L1

L2

L3

SW

M20

20

5.7

4

29.3

M25

5

34.3

Tolerance

0 to 6

±0.2

6 to 18

±0.3

18 to 30

±0.4

30 to 50

±0.5

50 to 80

±0.6

80 to 120

±0.7

120 to 250

±0.8

Diagram
