Model: HG2409PCR

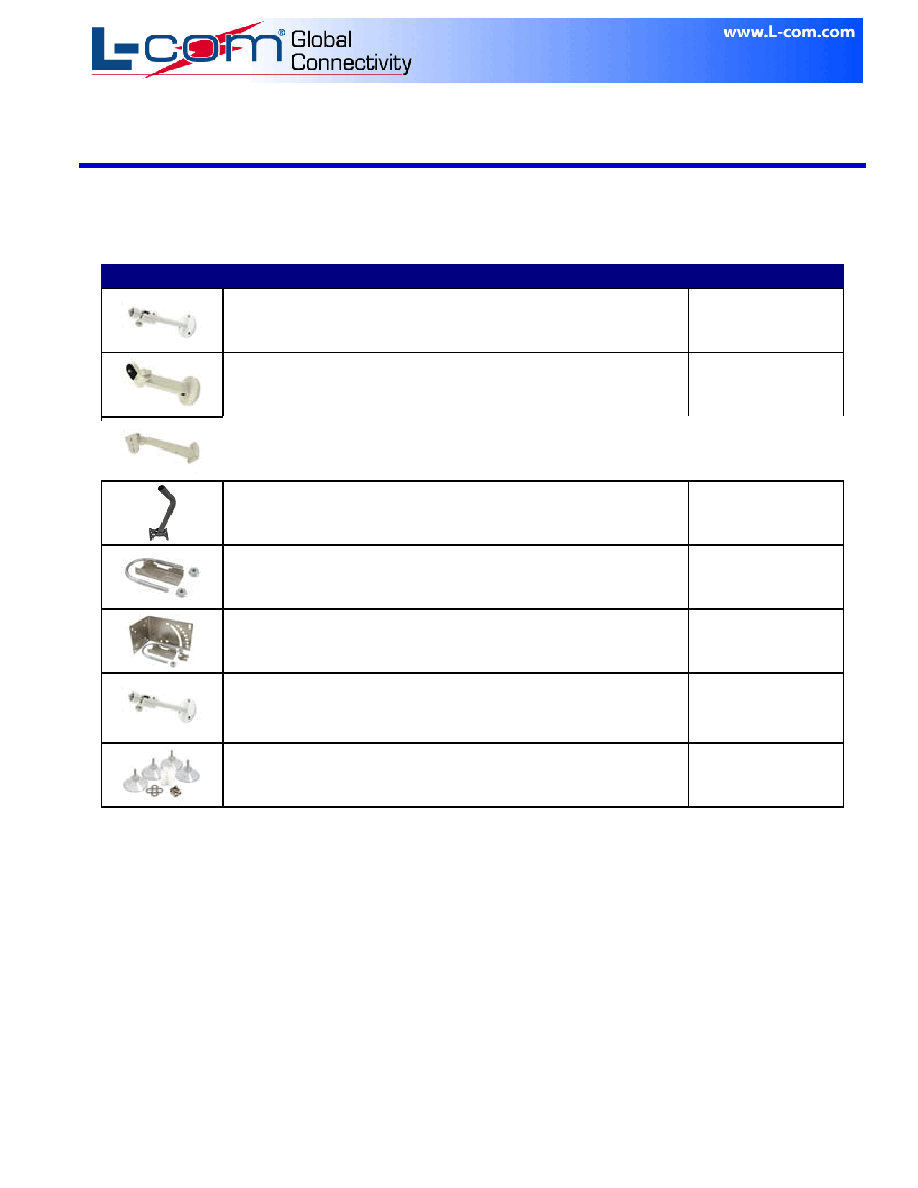

Mounting Options

Hyperlink's patch antennas offer several unique mounting options. They can be mounted flat against a wall, or to a mast using a

pair of 2 inch U-bolts. The antennas also accept most tilt-and-swivel security camera brackets equipped with standard 1/4-20

threads.

Description

Part Number

Small Metal Tilt-and-Swivel Mounting Bracket for indoor wall mounting.

Includes wall-mounting hardware.

HGX-PMT02

Medium Plastic Tilt-and-Swivel Mounting Bracket for indoor wall mounting.

Includes wall-mounting hardware.

HGX-PMT03

Large Metal Tilt-and-Swivel Mounting Bracket for indoor and outdoor wall or

mast mounting. Includes wall-mounting hardware. Can be mast-mounted

using U-Bolt Kit (sold separately).

HGX-PMT04

Universal Antenna Mount powder coated galvanized steel “DSS-style” arm

for outdoor wall mounting. Requires a pair of 2 inch U-bolts (sold

separately).

HGX-UMOUNT

Stationary Mounting Kit for mounting to 1-1/4" to 2" dia. masts. Includes U-

Bolts, nuts and mast clamp.

HGX-PMT07

60 Degree Tilt-and-Swivel Mounting Kit for mounting to 1-1/4" to 2" dia.

masts. Mounting hardware included.

HGX-PMT06

Ceiling/Wall Universal Antenna Mount can be used with HyperLink's 4.5" sq

and 8.5" sq. patch antennas as well as N-Type bulkhead and TNC/BNC

bulkhead omni directional antennas. Includes ceiling/wall mounting

hardware.

HGX-UMOUNT02

Window Mounting Kit Includes suction cups and mounting hardware.

HGX-PMT08
