DIO7758

www.dioo.com

© 2022 DIOO MICROCIRCUITS CO., LTD

DIO7758• Rev. 1.6

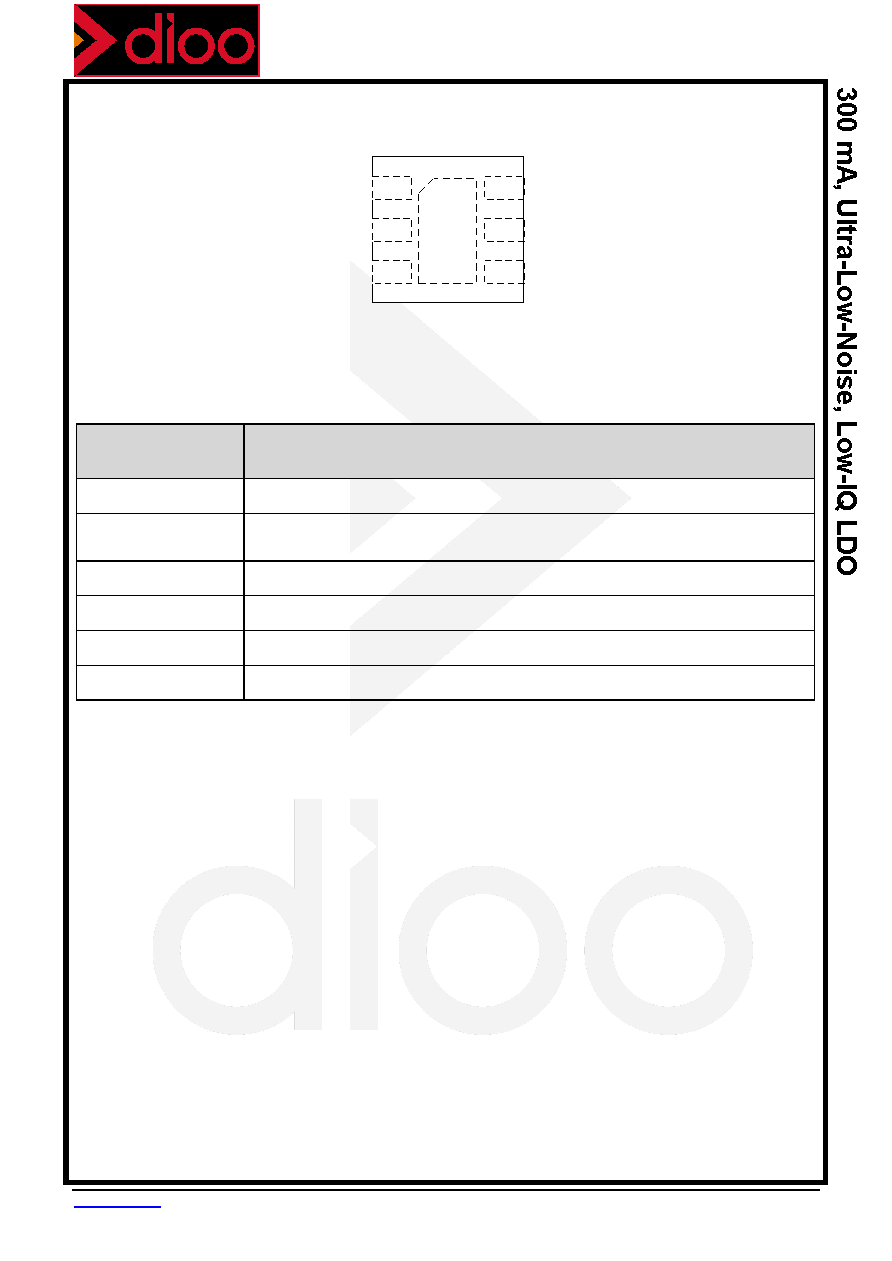

Pin Assignments

Figure 1 Pin Assignment (Top View)

Pin Definitions

Pin Name

Description

OUT

Output Voltage Pin

EN

Enable Pin. This pin has an internal pull-down resistor. A logic low reduces the supply current to

less than 1 μA. Connect to logic “High” for normal operation.

GND

Power Supply Ground

IN

Input Voltage Pin

NC

No connection

PAD

Connect the thermal pad to a large area GND plane for improved thermal performance.

GND

NC

IN

NC

EN

OUT

DFN2*2-6

1

2

3

6

5

4

PAD
