Catalog | ABB general purpose drives ACS310 19

Options

Software tools

A separate order line and type designation is required for

any of these software tool options.

DriveWindow Light

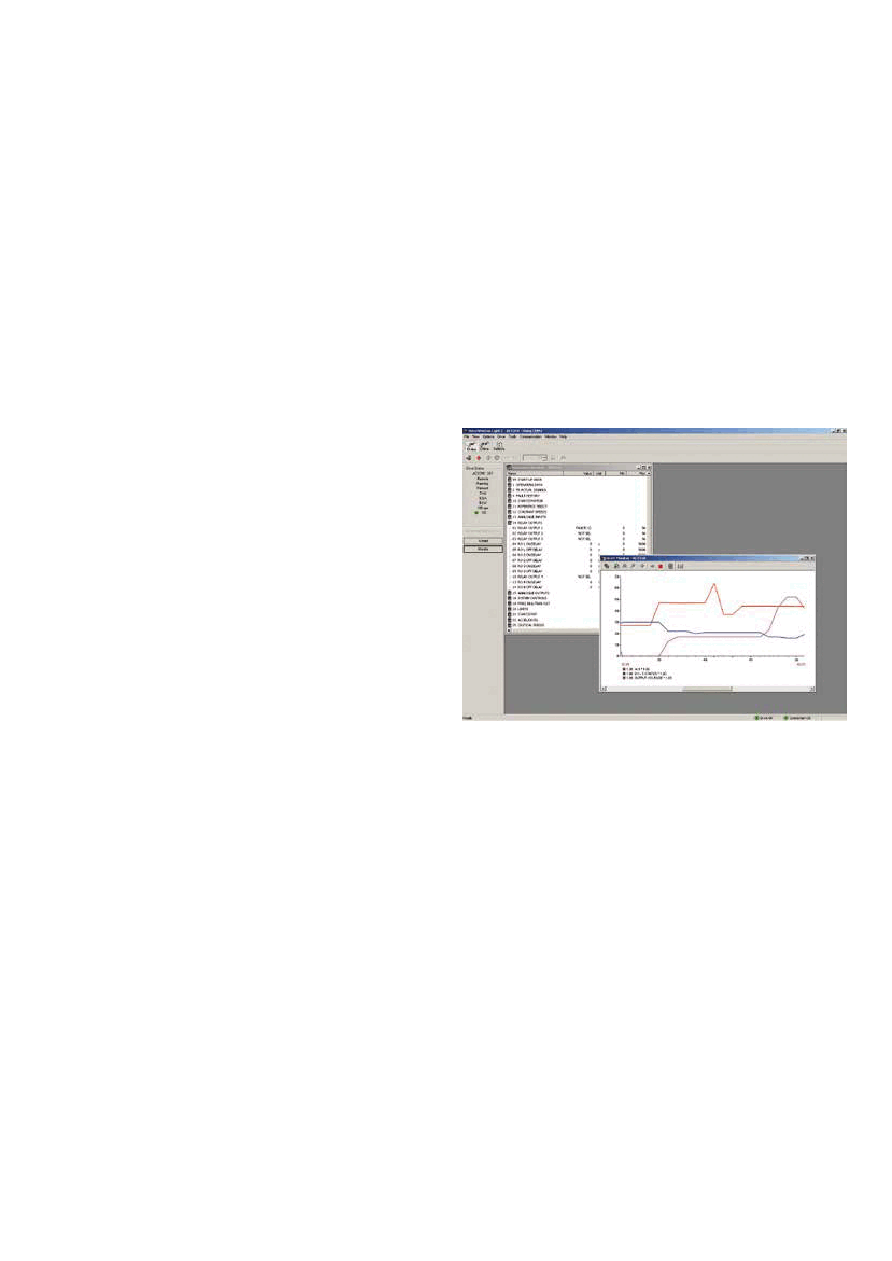

DriveWindow Light is an easy-to-use startup and maintenance

tool for ACS310 drives. It can be used in an offline mode,

which enables parameter setting at the office even before

going to the actual site. The parameter browser enables

viewing, editing and saving of parameters. The parameter

comparison feature makes it possible to compare parameter

values between the drive and saved parameter files. With the

parameter subset you can create your own parameter sets.

Controlling the drive is one of the features in DriveWindow

Light. With this software tool, you can monitor up to four

signals simultaneously. This can be done in both graphical

and numerical format. DriveWindow Light version 2.9 or later

is compatible with ACS310 drives.

Startup wizards

Startup wizards make the setting of parameters easy. Simply

launch the wizard, select an appropriate assistant eg, for

setting analog outputs, and all parameters related to this

function are shown together with help pictures.

Highlights

− Editing, saving and downloading parameters

− Graphical and numerical signal monitoring

− Drive control

− Startup wizards

DriveWindow Light requirements

− Windows NT/2000/XP/Vista/Windows 7

− Serial port from a PC

− Control panel connector
