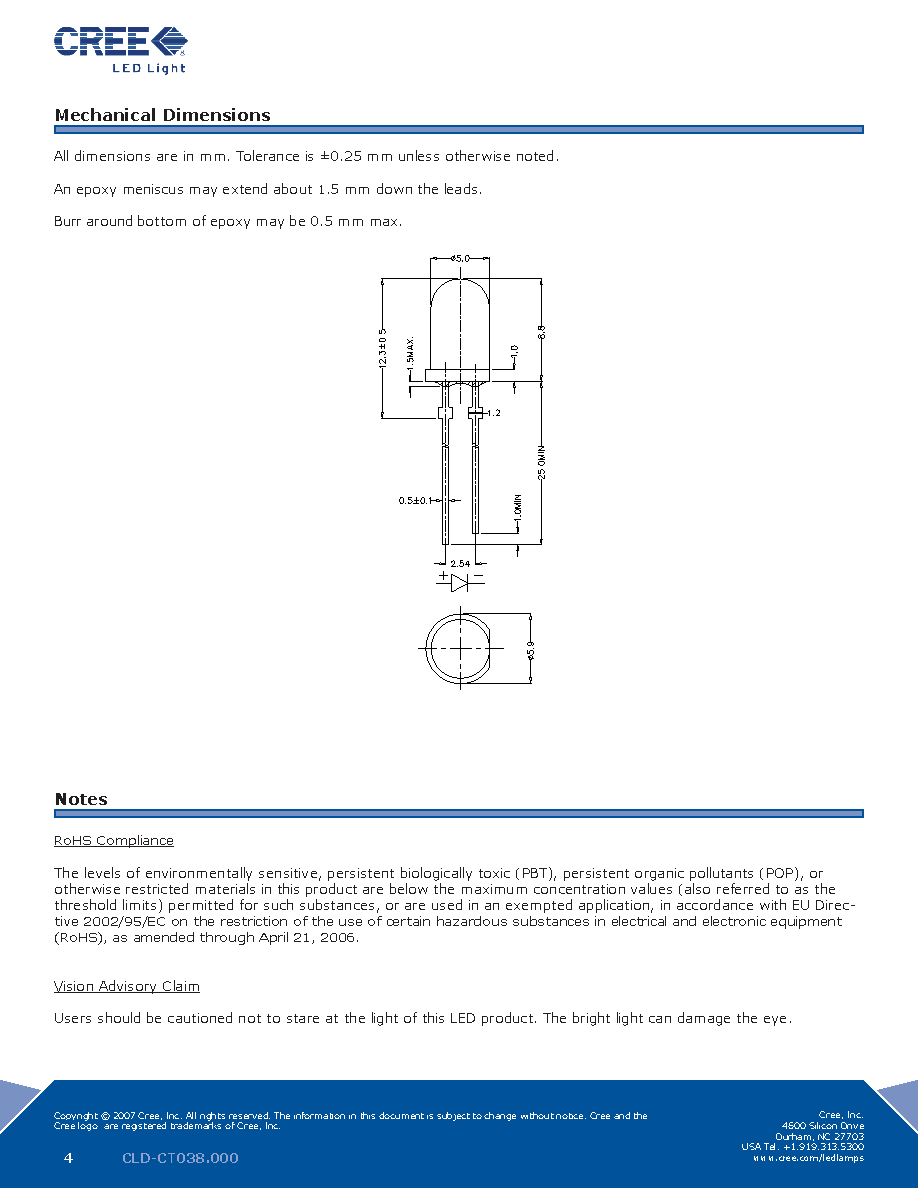

Mechanical Dimensions

All dimensions are in mm. Tolerance is ±0.25 mm unless otherwise noted.

An epoxy meniscus may extend about 1.5 mm down the leads.

Burr around bottom of epoxy may be 0.5 mm max.

Notes

RoHS Compliance

The levels of environmentally sensitive, persistent biologically toxic (PBT), persistent organic pollutants (POP), or

otherwise restricted materials in this product are below the maximum concentration values (also referred to as the

threshold limits) permitted for such substances, or are used in an exempted application, in accordance with EU Direc-

tive 2002/95/EC on the restriction of the use of certain hazardous substances in electrical and electronic equipment

(RoHS), as amended through April 21, 2006.

Vision Advisory Claim

Users should be cautioned not to stare at the light of this LED product. The bright light can damage the eye.

2/4

Format #: COTCO-D-074

REV.4

Document No. SPE/LC503UHR1-30P-A

Rev. No.

01

A

D

A

°C

Items

Symbol

Absolute maximum

Rating

Unit

50

mA

200

mA

Reverse Voltage

5

V

Power Dissipation

130

mW

Operation Temperature

-40 ~ + 95

°C

Storage Temperature

-40 ~ +100

°C

Lead Soldering

Temperature

Max.260

(3mm from the base of the epoxy bulb)

Electrostatic Discharge

Classification

(MIL-STD-883E)

ESD

Class II

*1 pulse width <=0.1msec duty <=1/10

*2 For long term performance the drive currents between 10mA and 30mA are recommended. Please contact COTCO

sales representative for more information on recommended drive conditions.

Items

Symbol

Condition

Min.

Typ.

Max.

Unit

Forward Voltage

---

2.1

2.6

V

Reverse Current

---

---

100

A

Dominant Wavelength

D

618

624

630

nm

Luminous Intensity

3000

5100

---

mcd

50% Power Angle

2

½H-H

---

30

---

deg
