1

U

Rugged Aluminum Shells

U

Rated to 125°C (257°F)

U

Strain-Relief Cable Clamp

U

Secure Solder Contacts

U

#20 AWG Wire Size

U

High-Conductivity

Gold-Plated Contacts

The OMEGA® PT Series connectors

provide an efficient method of

connecting pressure transducers

to associated instrumentation with

multiconductor cable. The solder

contacts are designed to provide

positive connections for signal or

power circuitry. The connectors

come in a selection of operating

temperature ranges to meet most

industrial applications.

SPECIFICATIONS

Insulation Resistance @ 25°C (77°F):

5000 M

Ω min

Voltage Drop: #20 contact, #20 wire,

at 7.5 A, 55 mV max

ENVIRONmENTAlly

PROTECTED mODElS

Air Pressure: 30 psi (2 bar)

at -55°C (-67°F)

Durability: 500 cycles of coupling

and uncoupling

Shells: Aluminum alloy, 0.0003

cadmium plate with olive drab chromate

or Black Zinc (RoHS)

Insulators: Neoprene on all, except

silicone on PCS06E10-6S

Contacts: High-conductivity copper

alloy, 0.000050 gold over copper

FEmAlE

mAlE

PT01F

PT06F

Integral

Solder Contacts

Included

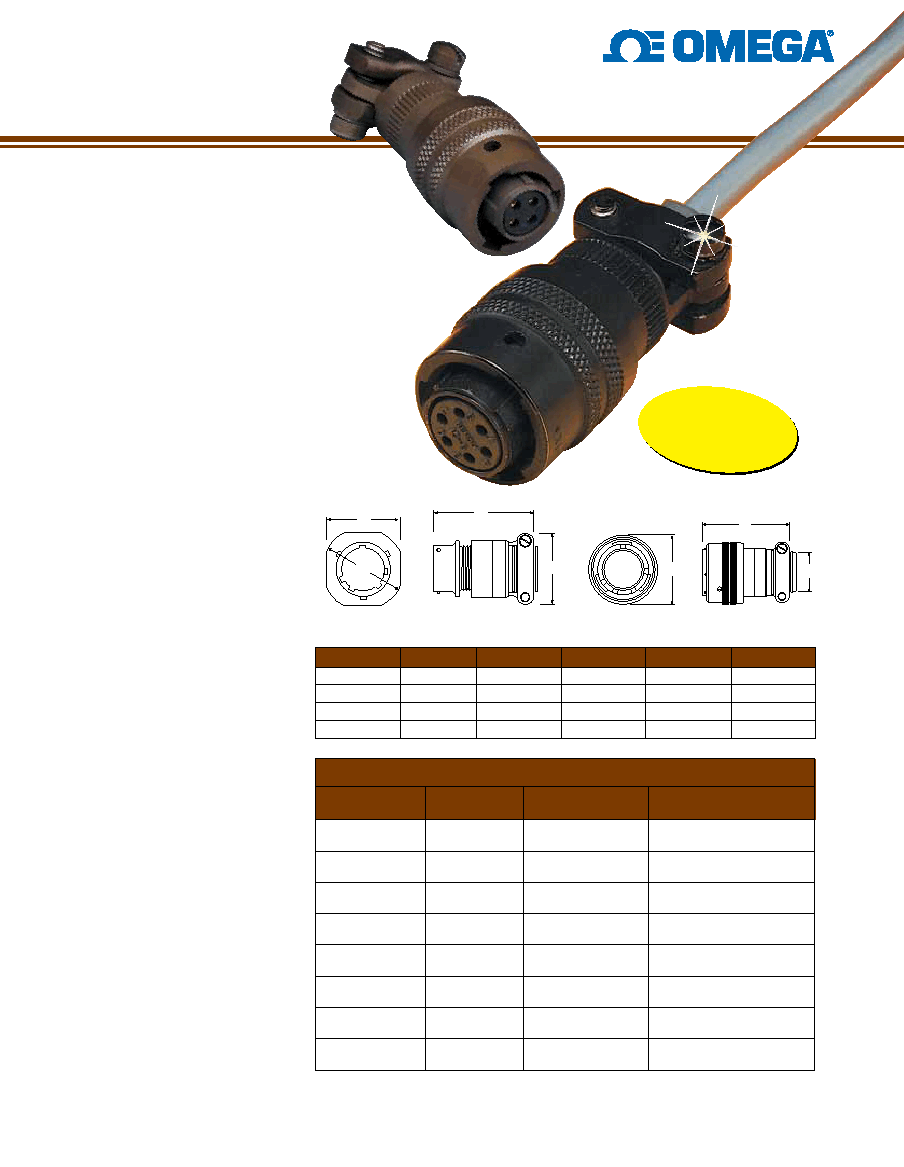

PT06F10-6S,

shown actual size.

PT06F8-4S,

shown smaller

than actual size.

CONNECTORS

TWIST-LOCK TYPE

mODEl NO. A DIA. mIN

B mAx

C mAx

D mAx

E ±0.020

PT01F8-4P 5.94 (0.234) 21.03 (0.828) 48.82 (1.922) 21.03 (0.828) 23.83 (0.938)

PT01F10-6P 7.54 (0.297) 22.63 (0.891) 48.82 (1.922) 24.23 (0.954) 26.97 (1.062)

PT06F8-4S 5.94 (0.234) 21.03 (0.828) 46.43 (1.828) 19.05 (0.750)

—

PT06F10-6S 7.54 (0.297) 22.63 (0.891) 46.43 (1.828) 21.82 (0.859)

—

Dimensions: mm (inch)

PT Series

To Order

NO. OF

TEmPERATuRE

mODEl NO.

CONTACTS

RANGE

FEATuRES

PT01F8-4P*

4 male

-55 to 125°C

Environmentally

(-67 to 257°F)

protected

PT01F10-6P*

6 male

-55 to 125°C

Environmentally

(-67 to 257°F)

protected

PT06A10-6S*

6 female

-55 to 125°C

Indoor use

(-67 to 257°F)

PT06F8-4S*

4 female

-55 to 125°C

Indoor use

(-67 to 257°F)

PT06F8-4SG*

4 female

-55 to 125°C

Internal sealing gland

(-67 to 257°F)

PT06F10-6S*

6 female

-55 to 125°C

Indoor use

(-67 to 257°F)

PTS06A

-10-6S*

6 female

-55 to 150°C

Extended temperature

(-67 to 302°F)

range

PCS06E10-6S

6 female

-55 to 204°C

High temperature

(-67 to 399°F)

Note: “P” suffix denotes male pins; “S” suffix denotes female sockets *“-R” suffix denotes RoHS.

Ordering Example: PT01F8-4P, 4 contacts, male, and PT06F8-4S, 4 contacts, female.

C

A

A

C

D

D

C

B

B

C

B

C

D

E

D

E
